PTT500 Beam 9575PTT Gateway, Wireless PTT multi-interface for PTT100A handset users

Compatible with: EXTRMDD Beam 9575PTT series DriveDocks featuring the PTT-W1A wireless system upgrade ONLY.

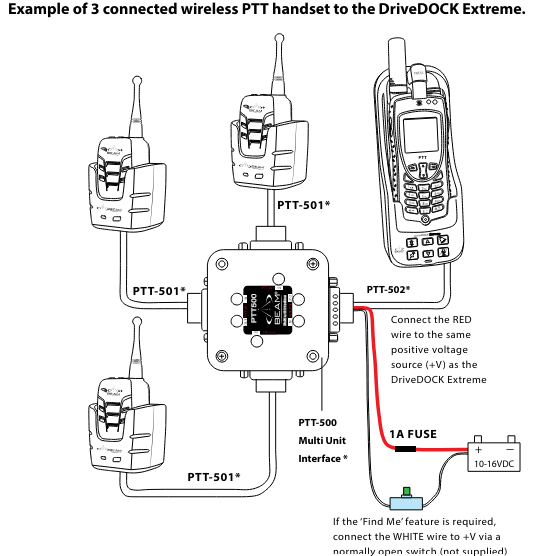

Power: The PTT-500 must be wired separately to a DC source of 10-16VDC only.

Talk Around: Talk around allows users to converse amongst the wireless PTT handsets connected to the Multi Unit Interface without their audio being transmitted over the satellite network.

It is activated by pressing the Orange button on the wireless handset instead of the PTT button.

All PTT satellite audio will always be heard over the top of a local talk around conversion.

‘Find Me’ Feature: The PTT-500 Multi Unit Interface also has a ‘Find Me’ feature.

An external switch (not supplied) can be connected to the Multi Unit Interface, that when pressed, will sound a loud tone on each wireless PTT handset.

This can be used in the event that a handset gets lost, to alert all handsets of a hazard, or in cases where an unresponsive user needs to be located.

NOTE: This unit is required to connect up to three PTT100A handsets to a BEAM 9575PTT DriveDock featuring the PTT-W1A wireless gateway.
