PTTGNG-C1B Beam 9575PTT Grab Go Case, Wired Handset, UPS Battery
The Beam iridium Extreme Push-To-Talk Grab ‘N’ Go Corded Kits are a cost-effective PTT solution.
The in-built DriveDOCK supports all features of the Iridium Extreme® PTT service complete with a speaker and microphone making it ideal for a range of applications
$3,837.90 Inc. GST

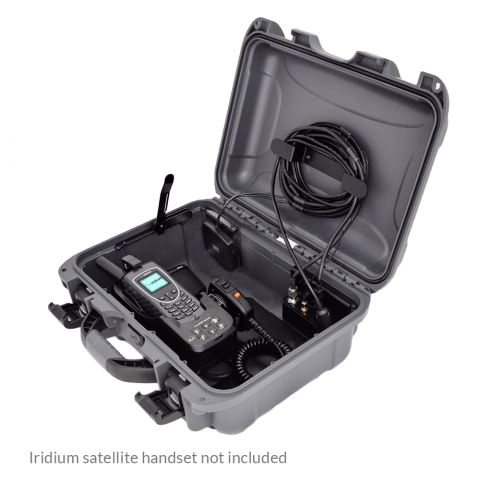

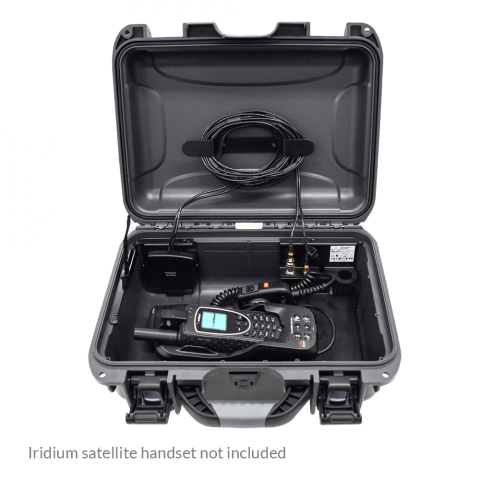

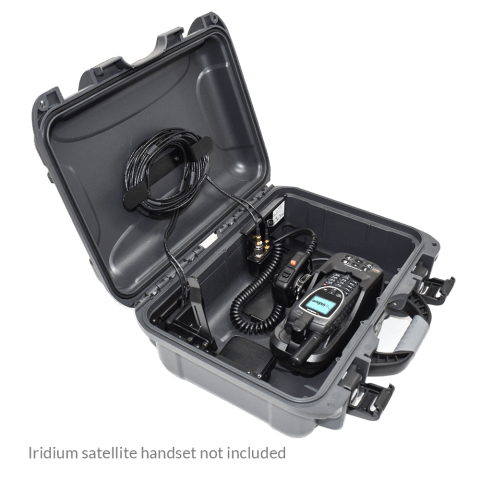

PTTGNG-C1B Portable Hard Case PTT solution including:
- the Extreme Drive Dock,
- RST250 dual mode antenna inc
- 4m Iridium / GPS cable and
- Wired PTT microphone / speaker.
- 12/24V DC Cigarette adapter,
- integrated UPS Battery
-
Key Benefits and Features
• Durable speaker and mic handset
• Enhanced clear audio
• Talk in or out of the vehicle
• Intuitive design, all in-built to a durable easy to carry case
• Integrated Iridium and GPS Antenna
• Includes 5m dual mode antennaKits
Iridium Extreme PTT Grab ‘N’ Go Corded Small Kit – PTTGNGS-C1
DriveDOCK Extreme Power
| Average Power Consumption | Current @ 12VDC | Watts |
| Rated Input | 9-32V DC | 2A max |
| Standby | 70mA | 0.84W |
| Transmit + Charging | 0.7A | 8.4W |
| Sleep Mode | 5mA | 60mW |
Corded Push-To-Talk Connectors/Interfaces
| Speaker | 1 Watt 8 Ohms |
Beam Dual Mode Antenna Frequency
| Iridium | 1616 – 1626MHz |
| GPS | 1575.42 ± 5MHz |
BLUETOOTH® Legal
| Bluetooth® | The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners. |
DriveDOCK Extreme Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -30°C to +70°C* | -22°F to +158°F |
| Charging Range | 0°C to 45°C # | +32°F to 113°F |
| Storage | -35°C to +85°C | -31°F to 185°F |
| Operating Humidity Range | < 85% RH non-condensing | |
| Notes | * When 9575 Battery is fully charged | # Derived from the charging temperature range of the Iridium 9575 handset battery. |
Beam Dual Mode MAG Antenna Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -40°C to +70°C | -40°F to 158°F |
PTT Grab ‘N’ Go Case Physical
| Dimensions | mm | inches |
| Case | 401L x 307W x 173H | 15.8L x 12.1W x 6.8H |
