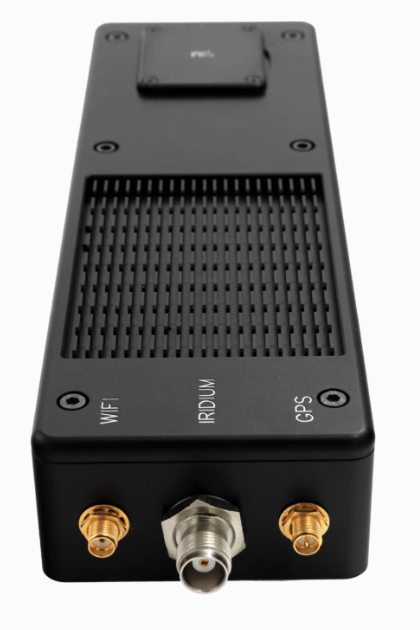

QS-095 NAL Iridium Quicksilver 100 Modem, with Standard Antenna

QS-095 NAL Iridium Certus 100 Modem, with Standard Antenna

GENERIC REFERENCE INFO BELOW FOR QS-100****************************************************************

QS-100 NAL Iridium Modem Kit, via Certus 100 mid-band service

NAL Research Corporation’s QUICKSILVER QS-100 terminal delivers the latest Iridium Certus 100 mid-band service in a compact, rugged package for globally available on-the-move (OTM), over-the-horizon (OTH), and beyond-line-of-sight (BLOS) connectivity.

Applications: Fixed-site Manned & Unmanned Platforms Maritime, Land-Mobile, and Aviation Solutions

Suitable for both standalone usage and embedded platform integration, it employs a small detachable passive, low-gain, omni-directional antenna, simplifying low-profile and low-visibility installations.

The QUICKSILVER QS-100’s flexible integration architecture makes it the ideal upgrade from narrowband solutions to provide mid-band throughput performance, anywhere around the world, for file transfer, command and control (C2), telemetry, diagnostic monitoring, and other data transport applications.

This Pack Includes:

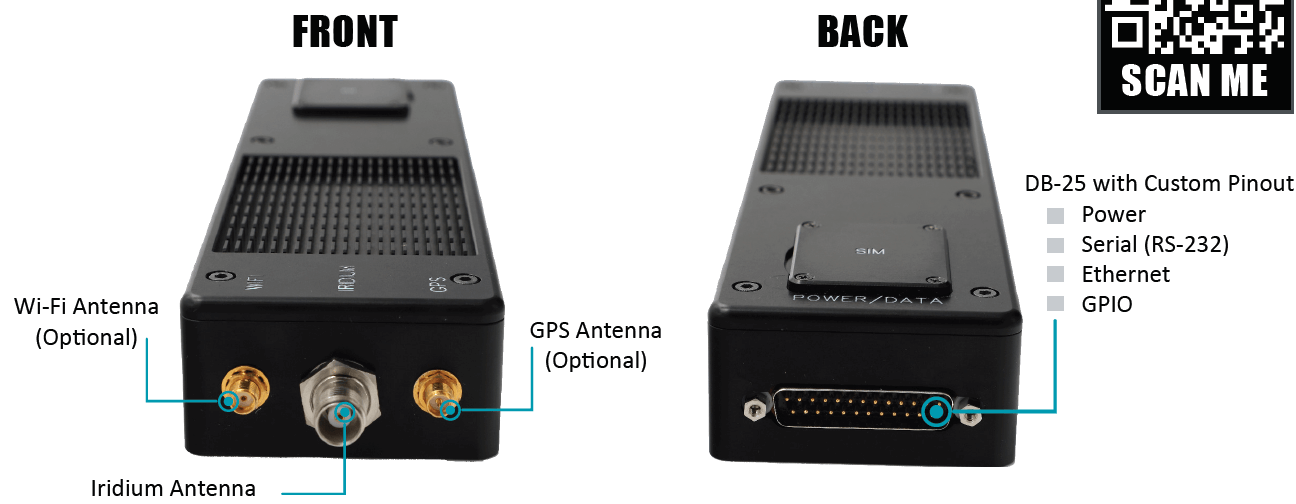

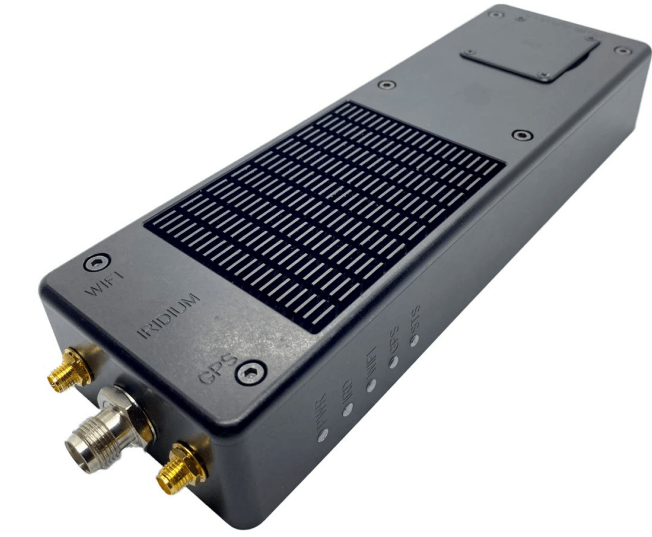

• QS-100 Modem Unit
• SAF9700 Iridium Antenna, TNC-male 57mm (height) x 23mm(diameter)
• SAF9750 Wi-Fi Antenna, RP SMA-male
• SAF5270-G GPS Antenna, with xxmm length fixed cable, SMA-male
• Ethernet Cable, RJ45, xxmm length
• Coax RF Cable, TNC-Male, xxmm length, for SAF9700 Iridium Antenna
• 433-19004-002 Data Adapter, DB-25 break-out with RJ45, DB9 and DC power connectors.
• POWS010 AC/DC Supply, 90-230 VAC, 47-63Hz to 12VDC/2.0A(max) output
• Quick Start User Guide

Key Features:

• Mobile and desktop web-browser based management (Chrome, Firefox, Edge, Internet Explorer, and Safari compatible)
• Operating system independent (e.g – Windows, Linux, iOS, and Android)
• Built-in firewall for data management and enhanced security
• Software API for customized, embedded applications
• Supports multiple IP protocols (e.g. – TCP, UDP, HTTP, HTTPS, etc.)
• Supports popular encrypted voice / messaging apps (e.g. – Signal)
• Alternate AT-command & RS-232 interface
  • Drop-in upgrade for NAL A3LA products
  • Easy integration with serial-based systems
• Multiple GPIO pins for control (including external ON / OFF)

NAL Research Corporation’s QUICKSILVER QS-100 terminal delivers the latest Iridium Certus 100 mid-band service in a compact, rugged package for globally available on-the-move (OTM), over-the-horizon (OTH), and beyond-line-of-sight (BLOS) connectivity.

Suitable for both standalone usage and embedded platform integration, it employs a small detachable passive, low-gain, Omni-directional antenna, simplifying low-profile and low-visibility installations.

The QUICKSILVER QS-100’s flexible integration architecture makes it the ideal upgrade from narrowband solutions to provide mid-band throughput performance, anywhere around the world, for file transfer, command and control (C2), telemetry, diagnostic monitoring, and other data transport applications.

Iridium Antenna Options – available, but NOT included in this pack:

• Passive & Omni-Directional
• Styles: Stub, Mast-Mount, & Puck
• Mounting Options: Screw-on, Bulkhead, & Magnetic
• Optional Antenna Applications Includes: Fixed-site, Manned & Unmanned Platforms, Maritime, Land-Mobile, and Aviation Solutions

Default Antenna:

• Part# SAF9700
• Size: 0.91” (23 mm) D x 2.25” (57 mm) H
• Weight: 1.20 oz (34 g)
• Gain: +2 dBic (at zenith)
• Connector: SMA male

RELATED HARDWARE

• AC Power Adapter: POWS010 AC/DC Supply with 12 VDC/2.0 A (max) output

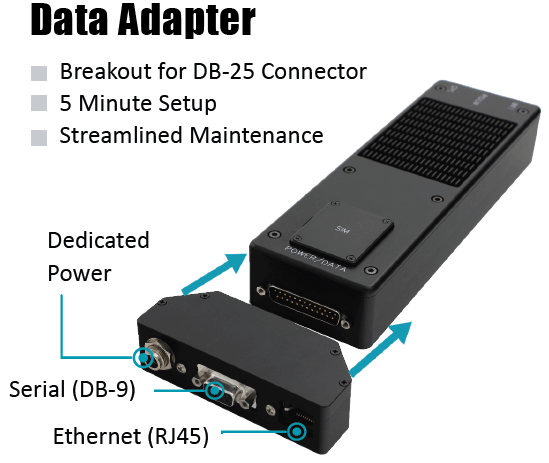

• Data Adapter: 433-19004-002 DB-25 break-out with RJ45 (Ethernet),
• DB-9 (Serial), Power (locking connector)
• Mounting Bracket: 433-19004-003 Aluminum with mounting hole patterns
