RF-3070-AT242 L3Harris GPS L1/L2 Active Antenna, Soldier Worn, Black
This is a portable, active L1/L2 GPS antenna with an integrated pendant coaxial cable and magnetic mount.
RF-3070-AT242 L3Harris GPS L1/L2 Active Antenna, Soldier Worn, Black

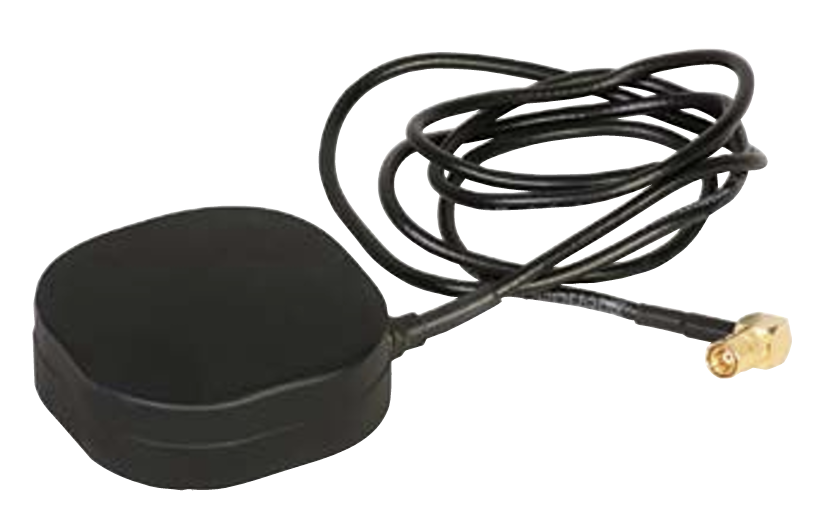

Description: This is a BLACK colour, Soldier worn L1/L2 GPS Antenna, Compact 52mm(2in) square with 90cm(35in) fixed cable
The RF-3070-AT242 is a portable, active L1/L2 GPS antenna with an integrated pendant coaxial cable and magnetic mount with an approximate 18-pound retaining force.
The 3-foot long RG-174 coaxial cable terminates in a right-angle SMB connector for direct connection to the AN/PRC-117G(V)1(C) and RF-7800M-MP Falcon III® manpack transceivers.
This 2-inch square antenna incorporates band-pass filtering, supporting greater than 40 dB of rejection at ± 50MHz.
This soldier-worn solution incorporates a limiter, protecting against damage from electrostatic discharge and co-located in-band interference.
The RF-3070-AT242 contains a 33 dB Low Noise Amplifier, which minimizes the noise figure while optimizing antenna sensitivity.
Small and lightweight, the antenna can be stowed in a soldier’s rucksack or spare pocket located within 3 feet of the radio connector.
SPECIFICATIONS
- Dimensions: 2.0 x 2.0in(52 x 52mm)
- Weight: 3.7oz (104g)
- Cable Length: 35in(88.9cm)
- Color: RF-3184-AT320: 383 Green, and/or RF-3184-AT324: 686 Tan, and/or RF-3070-AT242 Black
- Mechanical: RF Connector, Right-angle SMBe
- Mounting: Four 0.5-inch holes, equally spaced around a 4.5-inch bolt circle
- Environmental: Meets MIL-STD-810F
- Frequency Range: L1: 1575.42 MHz ± 15 MHz, L2: 1227.6 MHz ± 15 MHz
- DC Power Requirement: 2.7 V – 6 V; 35mA
- RF Power Capacity: 1W CW
- Input Impedance: 50 ohms (nominal)
- Radiation Pattern: Hemispherical
- Polarization: Right hand circularly polarized
- VSWR: < 2.0:1 ; relative to 50 ohms
- Gain(@ 90 degree elevation): L1 Band: 4dBic at 1575.42MHz ; L2 Band: 4dBic at 1227.6 MHz
