RST600 Beam Iridium RST600 SBD Modem, with 9522B Transceiver (Discontinued)

RST600 Beam Iridium RST600 SBD Modem, with 9522B Transceiver

The RST600 combines the global coverage of the Iridium satellite constellation with the low latency of the Iridium SBD(Short Burst Data) Service in a compact Module design.

DESCRIPTION

The Beam RST600 Modem is a high-performance satellite data communication device designed to deliver reliable connectivity in remote and off-grid environments. Operating on the Iridium satellite network, it enables secure and efficient Short Burst Data (SBD) transmission anywhere on Earth, even where traditional mobile networks are unavailable.

Ideal for integration into IoT, M2M, asset tracking, and monitoring applications, the Beam RST600 ensures seamless global communication for industries such as:

• agriculture,
• transport
• logistics,
• maritime,
• aviation and
• environmental management.

Its rugged, low-power design makes it suitable for continuous operation in demanding conditions.

Unlike terrestrial or Direct-to-Device (D2D) networks, the Beam RST600 uses true satellite communication, providing consistent global coverage without dependence on ground infrastructure. It also serves as a complementary solution for Starlink users who require low-data, always-on connectivity for telemetry, control systems, or remote equipment monitoring.

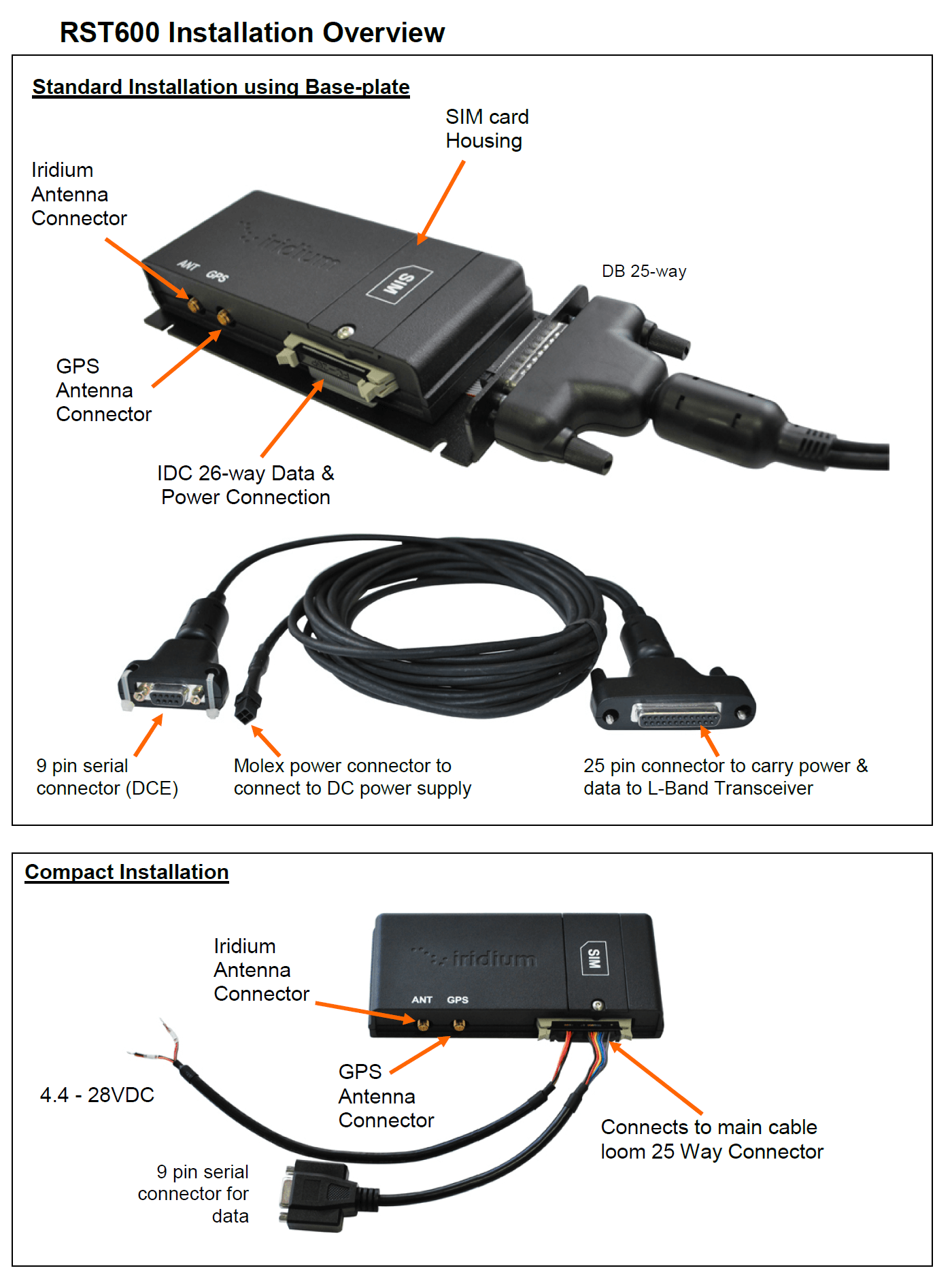

RST600 – Whats in the Box

• 1 x 9522B Iridium Transceiver
• 1 x Mounting Bracket (base plate) with mounting holes & D25 Connection
• 1 x Data & Power Interface cable assembly to support D25 Connection
• 1 x Data & Power Interface cable for use in a compact installation
• 1 x DC Power Cable
• 1 x User manual in hard copy
• 1 x Beam Starter CD including AT command set
• 1 x AC Mains / 12VDC Plug Pack

RST600 – Data Modem Network Access Features

RST600 – FEATURES

The Beam RST600 SBD Modem offers reliable satellite communication for remote data transfer via the Iridium network. Perfect for IoT applications, remote monitoring, and tracking, it ensures secure, low-latency communication in challenging environments.

Robust form factor: Designed for easy portability and durability, ideal for rugged environments.

Pole-to-pole global coverage: Ensures satellite communication across the globe, including remote locations.

4-32V DC input: Flexible power options for a variety of installations

Short Burst Data capable: Efficient data transfer for remote communication needs with minimal bandwidth usage.

Inbuilt Iridium 9522B SBD Module: Reliable and secure satellite data communication.

Serial RS232 Data Access: Enables integration with other devices for data exchange.

Simple AT command set: Easy to use with simple commands for effective communication setup.

Automatic message queue notification: Ensures data messages are automatically queued for delivery when service is available.

Simple Installation: Quick and easy setup with minimal configuration.

Signal LED: Provides clear indication of network connectivity and operational status.

Fully certified: Meets international standards for safety and functionality.

12-month warranty: Offering peace of mind with a manufacturer’s warranty for added reliability.

SPECIFICATIONS

Electrical
9522B Main Input (nominal) +4.4VDC to +28VDC
9522B Main Input (max limits) +4.0VDC to +32VDC
9522B Main Input – Ripple <=40mV peak to peak (measured at 9522B)

RST600 Plug-pack
Input: 90-250VAC 50/60Hz, Output: 12VDC, 3.75A.
Power Consumption: (Average)* (Eg. at +5 VDC Main Input, using DC Lead)
Standby Mode: 300mA (~1.5W)
Talk/Transmit Mode: 800mA [2.5A Max during call peaks] (~4W)
Modem Type: AT Hayes Compatible
Data speed: 2400 bps
EMC Compliance: C-Tick and A-Tick, CE mark

Environmental
Operating Temperature Range: -30°C to +60°C ambient
Operating Humidity Range: 25-75% RH non-condensing
Storage temperature: -40C to +85C

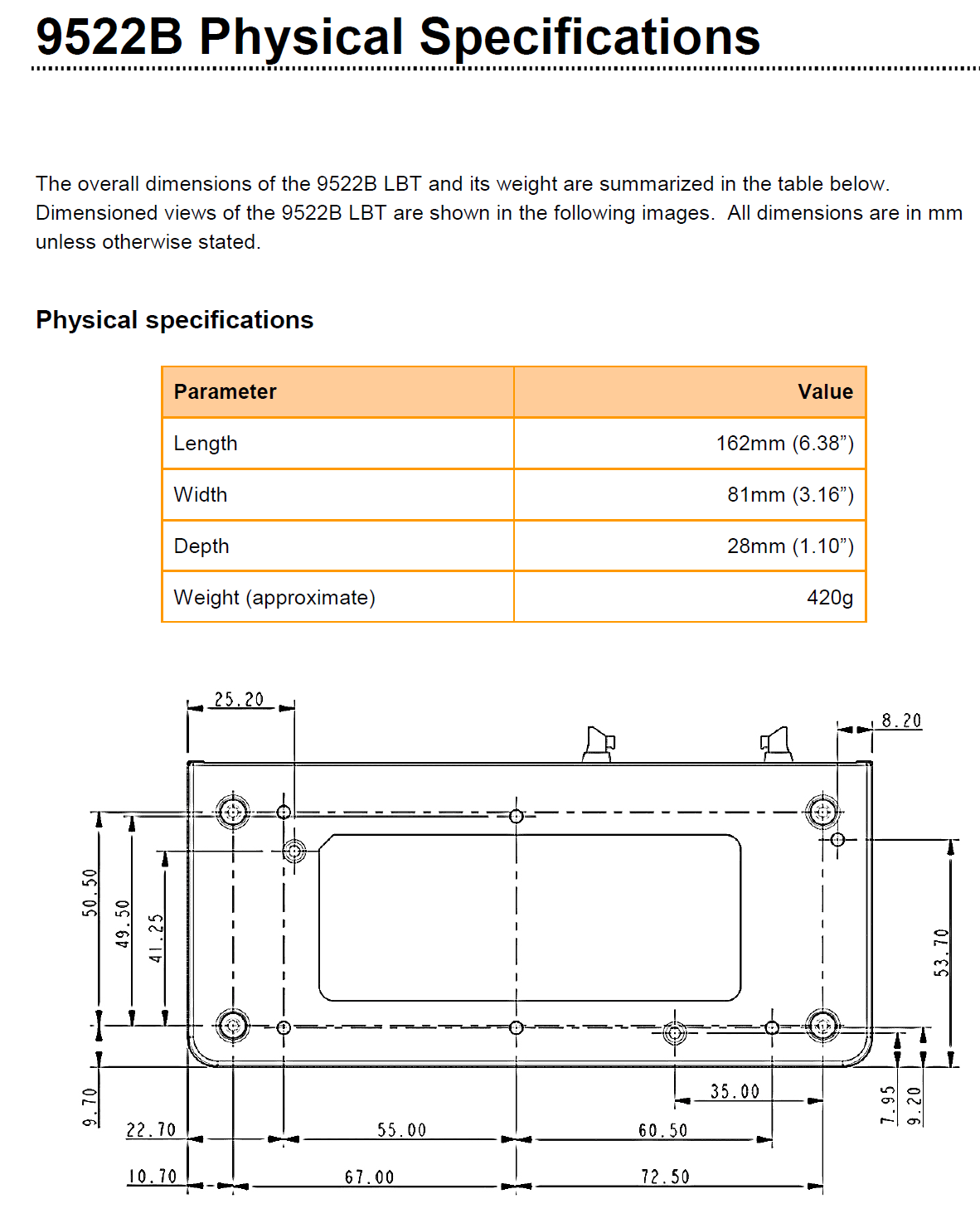

Weight: 0.6 kg / 600 grams (Transceiver Only 420 grams)
Dimensions: 82 x 186 x 30mm

RF Interface(L-Band Transceiver)
Frequency range: 1616MHz to 1626.5MHz
Average Power: 7W during a transmit slot (max)
Average Power: 0.6 W during a frame (typical)
Receiver Sensitivity: -118.5 dBm at 50W (typical)
Receiver Spurious Rejection at offsets > 1 MHz (typical): 60 dB
Duplexing method: TDD (Time Domain Duplex)
Oscillator stability: ±1.5ppm
Input/output impedance: 50 Ohms – TNC F Connector
Multiplexing method: TDMA/FDMA
* NOTE: The average power consumption depends on the view of the satellite constellation from the
Antenna, please ensure maximum view of sky to obtain lowest power usage, and optimum performance.
