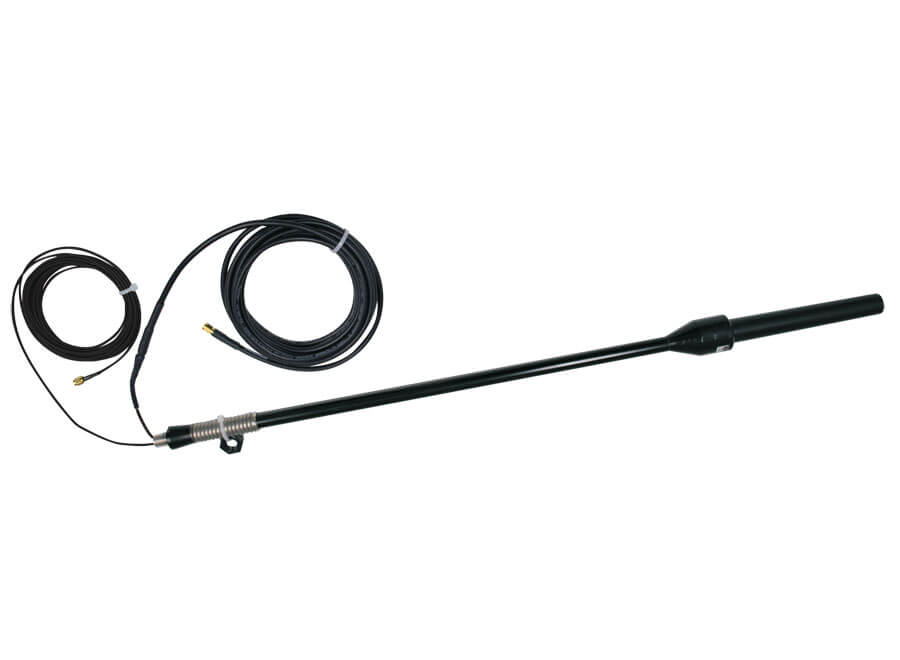

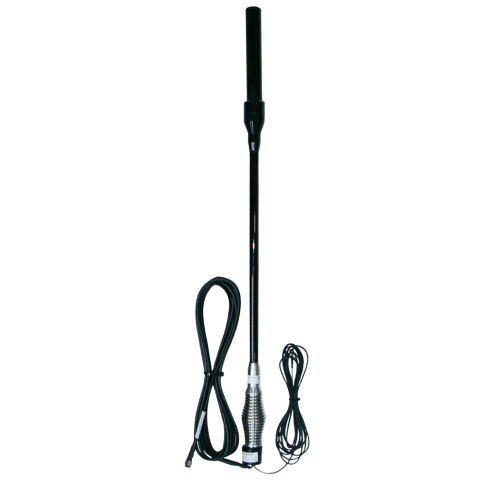

RST706B Beam Iridium and GPS Antenna, Bull Bar and Spring Mount Whip, 5m cables (Vehicular)
$1,464.10 Inc. GST
RST706B Beam Iridium and GPS Antenna, Bull Bar and Spring Mount Whip, 5m cables (Vehicular)
The Beam Iridium Whip Dual Mode Antenna (RST706B) is designed to deliver reliable satellite communication for Iridium users, supporting both voice and data transmission.
Compact and efficient, this antenna is perfect for users who need a flexible solution for their mobile satellite communications. Whether you’re in remote locations for work or leisure, the dual-mode capability ensures seamless connectivity for both voice and data, making it an ideal choice for various applications.
The antenna comes with a 5-meter cable, providing ample length for easy installation and optimal placement.
Designed for durability and ease of use, the RST706B antenna is a robust solution for those seeking reliable satellite coverage in the most challenging environments.
RST706B – Whats in the Box?
- Dual Mode Whip antenna with 5m of antenna and GPS cabling
- Instructions
At a Glance
- High Profile is ideal for use on Cars, Buses, SUV’s, Trucks and Heavy Transport or Earth Moving Equipment.
- This antenna cannot be easily damaged by branches, cow, camel, deer, kangaroo, birds, or other obstacles impacting a brittle Rigid Antenna.
- Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Features
- This Iridium Whip Dual Mode Antenna is a reliable satellite communication solution with both voice and data capabilities.
- Featuring a 5m cable for easy setup, it’s ideal for users seeking portable and efficient Iridium connectivity.
Dual Mode Functionality: Supports both voice and data communication via Iridium satellites.
Compact and Portable Design: Ideal for users needing a flexible and space-saving antenna solution.
Includes 5m Cable: Provides ease of installation and optimal placement for reliable performance.
Reliable Connectivity: Offers continuous satellite coverage in remote or off-grid locations.
Durable Build: Designed for harsh environments, ensuring long-lasting performance.
Specifications
- Weight: 2.7kg
- Dimensions: 800mm
- Radome and Pole: Black fibreglass radome, black finish aluminium ferrules,
- Mount: 304 stainless steel ‘barrel’ style spring
- Antenna Frequency: 1616 – 1626MHz
- GNSS (GPS) Frequency: 1575 ± 10MHz
- Polarization: Right Hand Circular
- Axial Ratio: 3dB
- Antenna Amplifier Gain : 5dBi
- GNSS (GPS) Amplifier Gain : 26 ± 2dB
- Noise Figure: 2.5dB Max
- Impedance : 50 Ohms
- VSWR: < 1.5

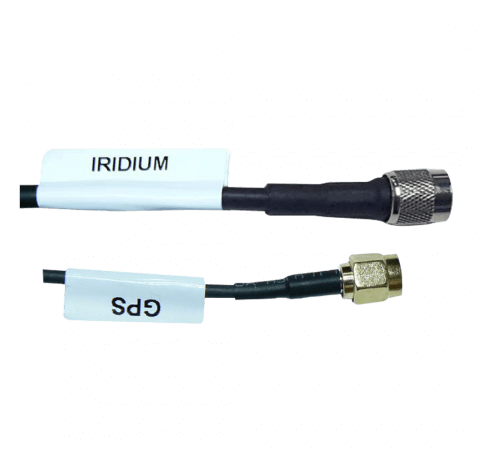

- Antenna Connector: TNC Male
- GNSS (GPS) Connector: SMA Male
- Operating and Storage Temperature: -40°C to +85°C
Features
- This Iridium Whip Dual Mode Antenna is a reliable satellite communication solution with both voice and data capabilities.
- Featuring a 5m cable for easy setup, it’s ideal for users seeking portable and efficient Iridium connectivity.
Dual Mode Functionality: Supports both voice and data communication via Iridium satellites.
Compact and Portable Design: Ideal for users needing a flexible and space-saving antenna solution.
Includes 5m Cable: Provides ease of installation and optimal placement for reliable performance.
Reliable Connectivity: Offers continuous satellite coverage in remote or off-grid locations.
Durable Build: Designed for harsh environments, ensuring long-lasting performance.
Specifications
- Weight: 2.7kg
- Dimensions: 800mm
- Radome and Pole: Black fibreglass radome, black finish aluminium ferrules,
- Mount: 304 stainless steel ‘barrel’ style spring
- Antenna Frequency: 1616 – 1626MHz
- GNSS (GPS) Frequency: 1575 ± 10MHz
- Polarization: Right Hand Circular
- Axial Ratio: 3dB
- Antenna Amplifier Gain : 5dBi
- GNSS (GPS) Amplifier Gain : 26 ± 2dB
- Noise Figure: 2.5dB Max
- Impedance : 50 Ohms
- VSWR: < 1.5
- Antenna Connector: TNC Male
- GNSS (GPS) Connector: SMA Male
- Operating and Storage Temperature: -40°C to +85°C
Brand
Beam
RST706B – Whats in the Box?
- Dual Mode Whip antenna with 5m of antenna and GPS cabling
- Instructions
