SYN7581A Iridium 9500 Battery Door, Rear Cover for 9500 only
SYN7581A Iridium 9500 Battery Door, Rear Cover $75.90 Inc. GST
Back to products
MOUNT-MTR2-25-KIT, Pole or Mast Mounting KIT, Passivated Stainless Steel for all G7 and G8 series Iridium and IsatPhone PRO Satellite Antennas includes 25mm Pipe Bracket, and U Bolts
MOUNT-MTR2-25-KIT Starpak Iridium Antenna Mount Kit, Passivated Stainless Steel with 25mm Pipe Bracket, and U Bolts $70.60 Inc. GST

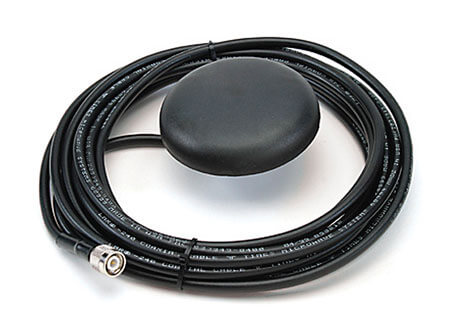

RST720 IRIDIUM Beam Antenna, Large Patch Fixed Mount with 5.0m(16.4ft) fixed cable tail, same as Aero Technologies part AT1621-5
RST720 IRIDIUM Beam Antenna, Large Patch Fixed Mount with 5.0m(16.4ft) fixed cable tail, same as Aero Technologies part AT1621-5
Click to enlarge
RST720 IRIDIUM Beam Antenna, Large Patch Fixed Mount with 5.0m(16.4ft) fixed cable tail, same as Aero Technologies part AT1621-5
RST720 IRIDIUM Beam Antenna, Large Patch Fixed Mount with 5.0m(16.4ft) fixed cable tail, same as Aero Technologies part AT1621-5

RST720 Beam Iridium Antenna, Bolt Mount, 5m cable

SKU: RST720

RST720 IRIDIUM Beam Antenna, Large Patch Fixed Mount with 5.0m(16.4ft) fixed cable tail, same as part AT1621-5
Permanent Mount Patch style, ideal for any hi-performance low profile applications.
Versatile, larger antenna that delivers improved reception over the standard portable auxiliary antenna.
Features a 5.0m(197in) cable length, thus enabling easy permanent installation to any vehicle.
Note: This is a higher gain, yet still low profile antenna for your 9575 Extreme, 9555, 9505A, etc.

$324.50 Inc. GST

IR-01-AT1621-5 Mobile Permanent Mount Antenna
This Iridium-frequency antenna (AT1621-5) is designed for land/mobile applications and will work with both voice and data communications systems.
Application – Land
. Buildings
. Homesteads
. Cars
. Trucks
. Trains

Mounting Profile
The antenna includes a bulkhead connector to allow it to be installed on the roof of a vehicle with only one hole.
This antenna requires a 160mm(0.625 in.) diameter hole in the vehicle rooftop to secure the bolt antenna.
Ground Plane requirement is 260sqcm(40sqin) of metallic surface.
Attaches to your phone ONLY via the Iridium antenna adapter as in the below guide.

Physical
Diameter: 8.966mm(3.53in)
Height: 21.08mm (0.83in)
Weight: 283g(10oz)
Operating Temperature: -40°C to +70°C(-40°F to +158°)
Technical
Cable Type: LMR240
Cable length: 5.0m(197in)
Connector: TNC-Male
Impedance: 50 OHMS
VSWR: less than 2:1
Iridium Frequency: 1616 – 1625.5 MHz
Polarization: Right Hand Circular
Direction: Omnidirectional
Axial Ratio: 4 dB Max
Iridium Network Certified Product
RoHS compliant
Made in USA
Manufacturer: Aero Technologies

COMPATIBILITY
Antenna Adapter is required: for 9575 Extreme use part# IR-01-H3AA0011
Antenna Adapter is required: for 9555 use part# IR-01-H2AA0801
Antenna Adapter is required: for 9505A, 9505 and 9500 use part# IR-01-AAA0601

Brand

Beam

Whats in the Box? RST720
1x Iridium Large Patch Permanent Mount Antenna with 5.0m(197in) cable tail
COMPATIBILITY
Antenna Adapter is required: for 9575 Extreme use part# IR-01-H3AA0011
Antenna Adapter is required: for 9555 use part# IR-01-H2AA0801
Antenna Adapter is required: for 9505A, 9505 and 9500 use part# IR-01-AAA0601
