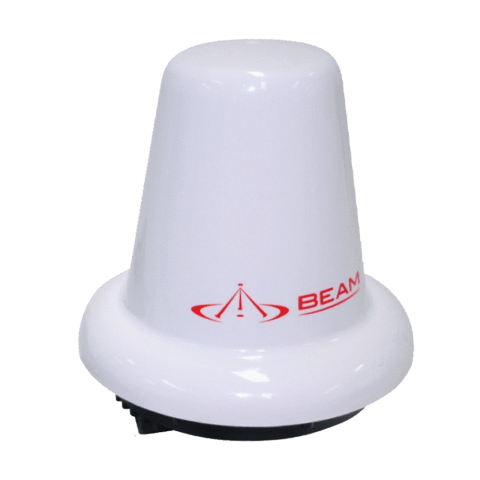

RST740 Beam Iridium Active Antenna, Land and Maritime
$2,508.00 Inc. GST
RST740 IRIDIUM by Beam Active Antenna Kit
This Active Antenna is designed long cable runs exceeding 23m for all Marine and Land applications such as large Vessels, Vehicles and Remote Buildings.
The Beam Iridium Active Antenna RST740 offers high-performance signal reception and reliability, making it the ideal choice for Iridium satellite systems.
Perfect for both mobile and fixed installations, this antenna ensures seamless communication in remote locations.

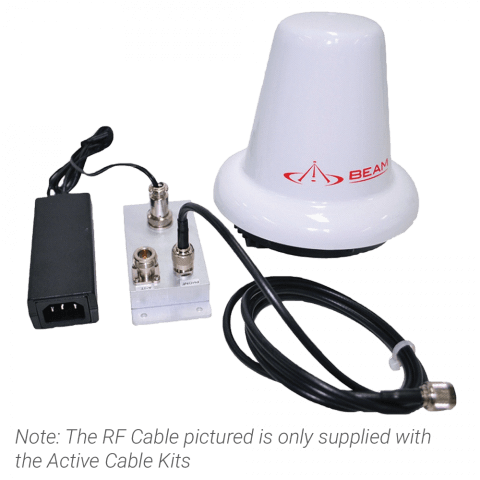

RST740 – Whats in the Box?
- RST740 Antenna
- Bias Box
- Mounting Bracket
- 3 x Set Screws
- 3 x Mounting Screws
- 3 x Flat Washers
- 3 x Split Washers

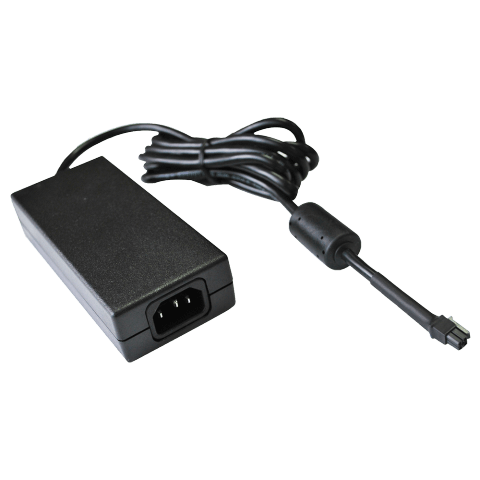

- AC Adapter
- DC Power Cable
- Note: AC Kettle Cord not included.
Overview
High-Performance Signal Reception: Ensures reliable communication even in remote areas.
Durable & Rugged: Built to withstand harsh outdoor conditions, perfect for marine, mobile, or fixed installations.
Optimized for Iridium Systems: Specifically designed for use with Iridium satellite communication networks.
Easy Installation: Compatible with Beam Iridium systems for quick and seamless setup.
Features
. Small size / footprint
. Omni Directional
. Supports longer cable runs
. Pole or Mast Mount
. Iridium Approved
Design
. High quality enclosure
. Active antenna
. Temp range: -40°C to +70°C
. Pole / Mast mounting
. TNC
. White
. Omni Directional
Power
. AC plug pack
. 9-32V DC input
SPECIFICATIONS
General
- Impedance: 50 Ohms
- DC Peak Power Draw: 30W
- DC RMS Power Draw: 3.2W
- DC RMS Standby Power Draw: 0.32W
- Active Antenna Cable Loss: 11.5 – 13.5dB (total end to end loss including the Amp Lead)
- Frequency: 1616.0 – 1626.5 MHz
- Connector: TNC Female
- Amp Lead*:<0.5dB at 1.5m (TNC-M to TNC-M)
* Amp Lead is not part of the RST740 Antenna kit. The Amp Lead cable is bundled with the Beam – Iridium active cable kit.
Physical
- IP Rating: IPX7

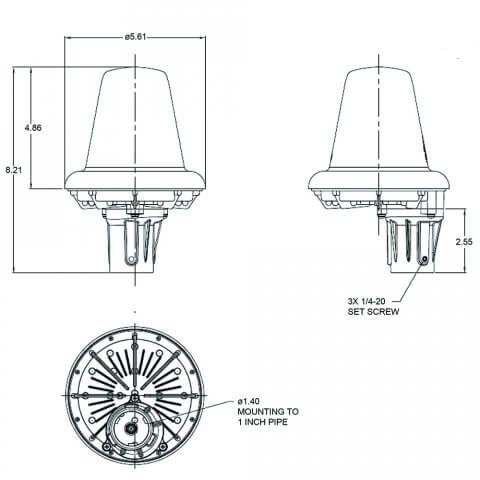

- Dimensions: 208.53H x 142.49Dia mm
- Weight : 0.51kg

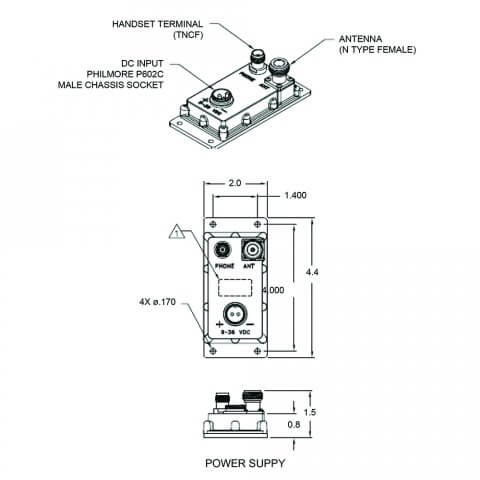

Bias Box
- Input Voltage: 9 – 36 VDC
- RF Input: 0.5 dB Max
- Current Requirement: 4 Amps Min
- Output Voltage: 30 – 32 VDC
- Rec. Power Supply: ISD951 + Adapter Cable (CBLASY015501)
Environmental
- Extreme rain exposure: 37 mm/10 min; 145 mm/24 h
- Extreme snow exposure: 3,0kN/m2
- Wind: 35 m/s
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -40°C to +80°C
Cable Options – NOT included
RST944 23m cable kit (Active) 5mm diameter
RST945 34m cable kit (Active) 6mm diameter
RST946 52m cable kit (Active) 10mm diameter
Options – Special Order
RST947 75m cable kit (Active): 1pc of L: 69m x Dia: 15mm cable, 2pcs of 3m x 6mm fly leads.
RST948 104m cable kit (Active): 1pc of L: 90m x Dia: 28mm cable, 2pcs of 7m x 6mm fly leads.
DO NOT DAMAGE YOUR ANTENNA
All cable kits include 1.5m lead from device to Antenna Amplifier. Device end connector – TNC Male
Combining an Active Antenna with Standard Cables will damage the Antenna
Overview
The Beam Iridium Active Antenna RST740 offers high-performance signal reception and reliability, making it the ideal choice for Iridium satellite systems. Perfect for both mobile and fixed installations, this antenna ensures seamless communication in remote locations.
High-Performance Signal Reception: Ensures reliable communication even in remote areas.
Durable & Rugged: Built to withstand harsh outdoor conditions, perfect for marine, mobile, or fixed installations.
Optimized for Iridium Systems: Specifically designed for use with Iridium satellite communication networks.
Easy Installation: Compatible with Beam Iridium systems for quick and seamless setup.
Features
. Small size / footprint
. Omni Directional
. Supports longer cable runs
. Pole or Mast Mount
. Iridium Approved
Design
. High quality enclosure
. Active antenna
. Temp range: -40°C to +70°C
. Pole / Mast mounting
. TNC
. White
. Omni Directional
Power
. AC plug pack
. 9-32V DC input
RST740 – SPECIFICATIONS
General
- Impedance: 50 Ohms
- DC Peak Power Draw: 30W
- DC RMS Power Draw: 3.2W
- DC RMS Standby Power Draw: 0.32W
- Active Antenna Cable Loss: 11.5 – 13.5dB (total end to end loss including the Amp Lead)
- Frequency: 1616.0 – 1626.5 MHz
- Connector: TNC Female
- Amp Lead*:<0.5dB at 1.5m (TNC-M to TNC-M)
* Amp Lead is not part of the RST740 Antenna kit. The Amp Lead cable is bundled with the Beam – Iridium active cable kit.
Physical
- IP Rating: IPX7
- Dimensions: 208.53H x 142.49Dia mm
- Weight : 0.51kg
Bias Box
- Input Voltage: 9 – 36 VDC
- RF Input: 0.5 dB Max
- Current Requirement: 4 Amps Min
- Output Voltage: 30 – 32 VDC
- Rec. Power Supply: ISD951 + Adapter Cable (CBLASY015501)
Environmental
- Extreme rain exposure: 37 mm/10 min; 145 mm/24 h
- Extreme snow exposure: 3,0kN/m2
- Wind: 35 m/s
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -40°C to +80°C
Cable Options – NOT included
RST944 23m cable kit (Active) 5mm diameter
RST945 34m cable kit (Active) 6mm diameter
RST946 52m cable kit (Active) 10mm diameter
Options – Special Order
RST947 75m cable kit (Active): 1pc of L: 69m x Dia: 15mm cable, 2pcs of 3m x 6mm fly leads.
RST948 104m cable kit (Active): 1pc of L: 90m x Dia: 28mm cable, 2pcs of 7m x 6mm fly leads.
DO NOT DAMAGE YOUR ANTENNA
All cable kits include 1.5m lead from device to Antenna Amplifier. Device end connector – TNC Male
Combining an Active Antenna with Standard Cables will damage the Antenna
Brand
Beam
RST740 – Whats in the Box?
- RST740 Antenna
- Bias Box
- Mounting Bracket
- 3 x Set Screws
- 3 x Mounting Screws
- 3 x Flat Washers
- 3 x Split Washers
- AC Adapter
- DC Power Cable
- Note: AC Kettle Cord not included.
