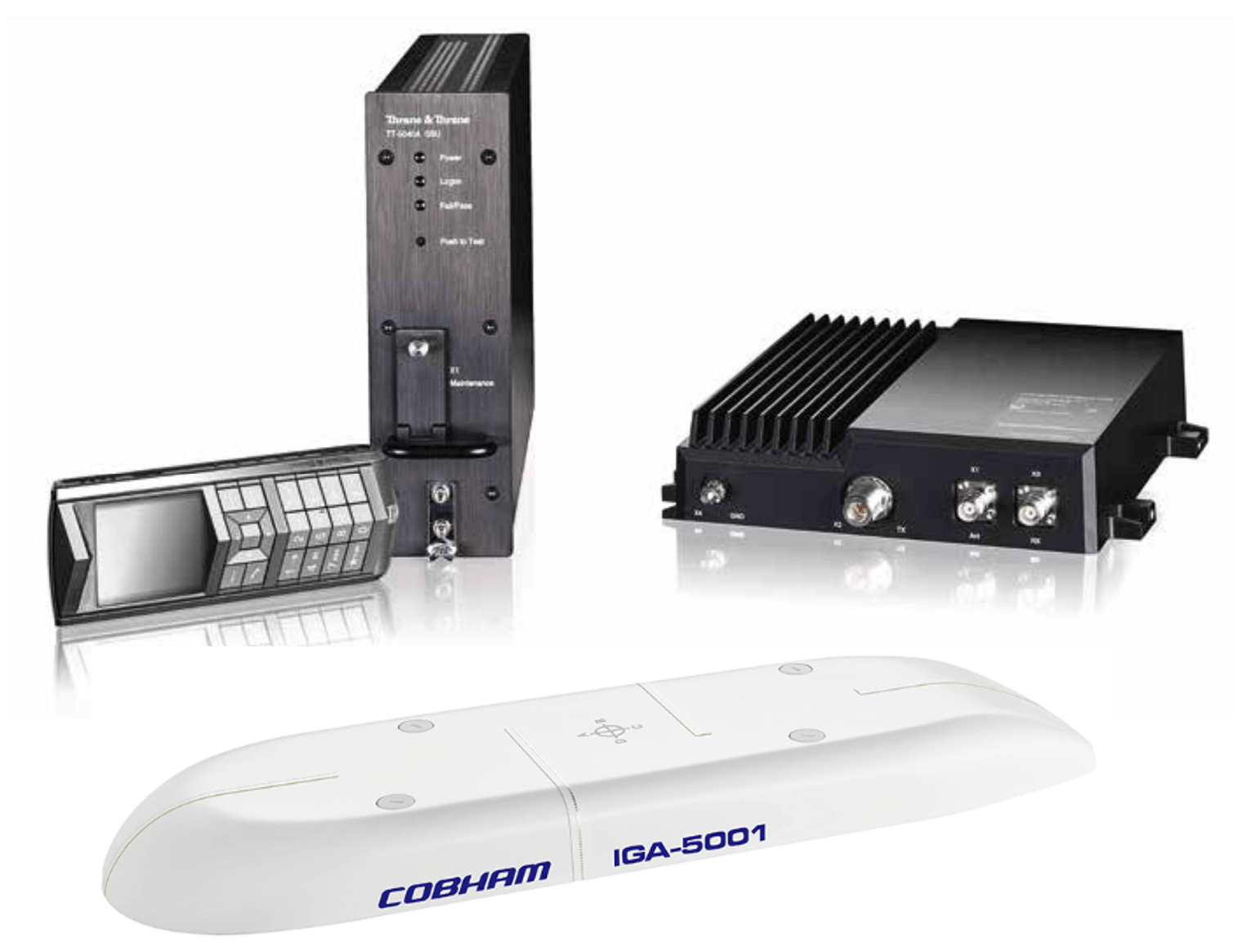

SBB-AV-300-IGA Cobham Aviator 300 System, Single Channel Class 7 SwiftBroadband, Intermediate Gain Antenna
SBB-AV-300-IGA Cobham Aviator 300 System, Single Channel Class 7 SwiftBroadband, Intermediate Gain Antenna
Cobham’s AVIATOR 300 is a compact, lightweight system that offers cost-effective SwiftBroadband capabilities to the widest range of airframes flying today.
Built with a full range of features and options, AVIATOR 300 gives you the flexibility you need, no matter what your mission requires.
Low Cost Solution For Corporate, Air Transport, Military & Government Applications AVIATOR 300 is extremely lightweight and compact, and delivers unprecedented versatility for virtually any application.
With data up to 332 kbps, the system is a complete voice and data solution for Corporate, Military, Government & Special Missions applications that comes with a range of embedded features such as:
- Inmarsat SwiftBroadband channel for simultaneous data and voice
• Up to 8 simultaneous voice calls
• Email with attachments
• Internet access
• Fax capable
• Smartphone and tablet connectivity
• Built-in router for intelligent connectivity support and multiple user support
• Built-in ethernet switch for supporting numerous wired laptops and/or EFBs
• Built-in wireless access point option for supporting numerous wireless laptops, smartphones and/or tablets
• Built-in PBX for supporting numerous handsets and in-flight calls
• ARINC 741/781 antenna compatibility
• ISDN connectivity (down to 45 degrees elevation)
• Supports all current standards for secure voice and data transmission (FNBDT, STE, STU, HAIPE, etc.)
SwiftBroadband (IGA) AVIATOR 300 is engineered from the ground up to take advantage of the
latest communication technologies like SwiftBroadband for increased reliability and connectivity.
The SwiftBroadband Background Data and SwiftBroadband Low Cost Voice channel allow users to access a shared data channel and a compressed high quality voice channel at the same time.

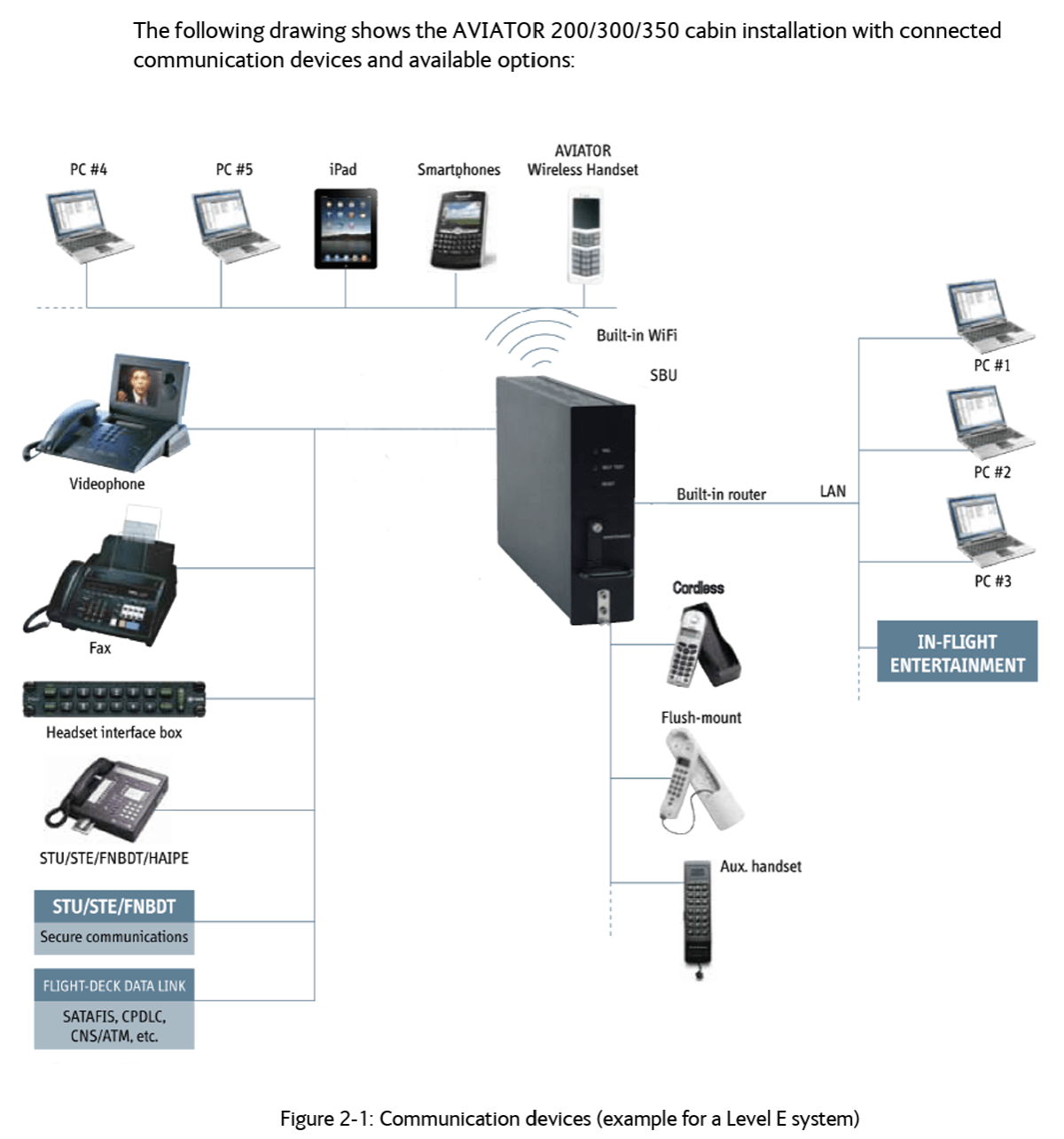

Aviator 200/300/350 System – Overview
The AVIATOR 200/300/350 system is a compact, light-weight aeronautical satcom system that uses Inmarsat’s SwiftBroadband services.

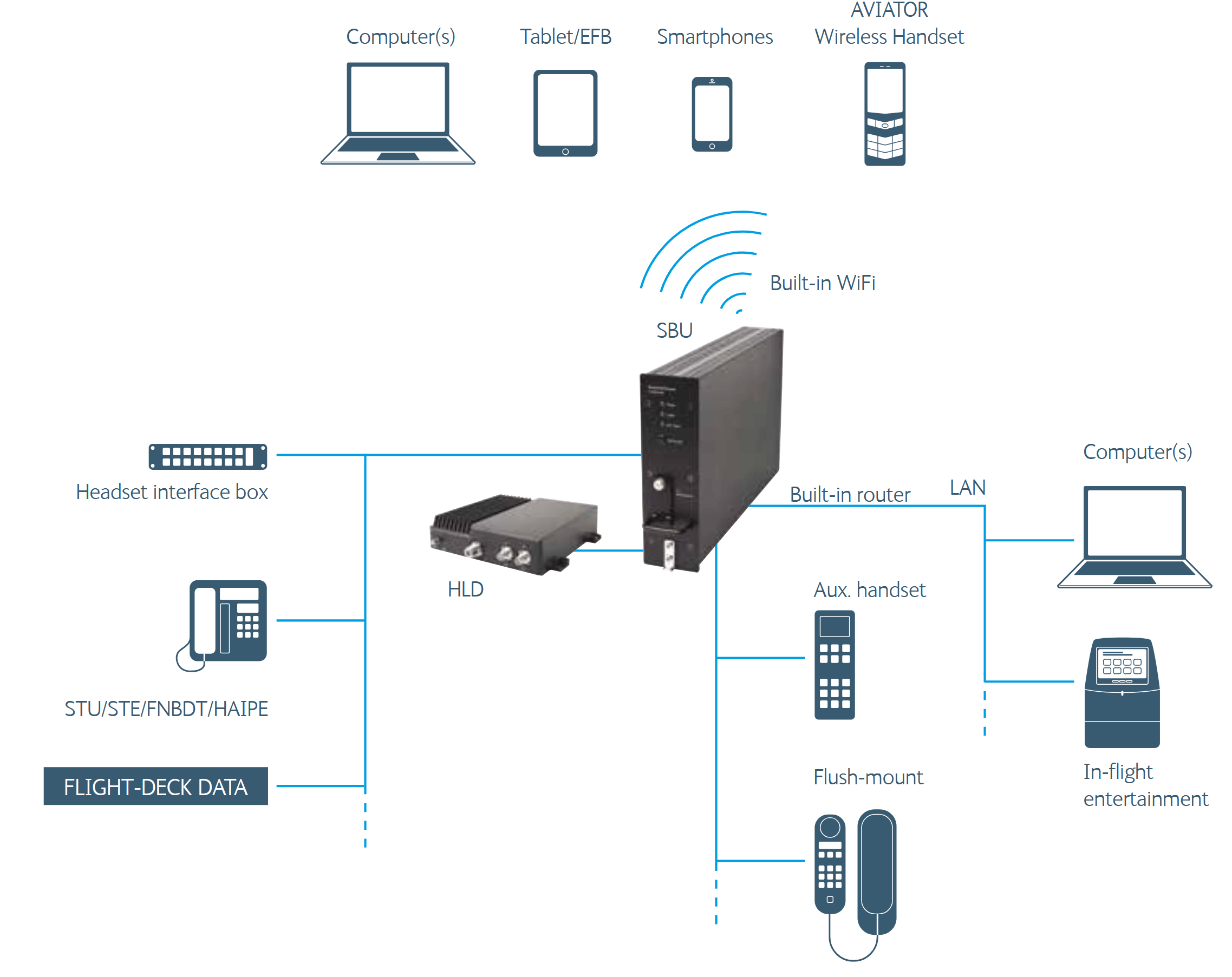

The AVIATOR system consists of the following units:
• TT-5040A SBU SwiftBroadband Unit
• TT-5040A-001 or TT-4050A-8xy CM Configuration Module, inserted in the SBU. The CM also holds the SIM card, which provides access to the SwiftBroadband services. The SIM card is included in the delivery.
• TT-5016A HLD High Power Amplifier, Low Noise Amplifier and Diplexer in one unit.
NOTE: These units must be connected to a satcom antenna. See section Satcom antenna systems on page 2-5 of the Installation Manual(attached) for supported antenna types and model numbers.
Flexible, Affordable and Dependable
Being the lightest, most compact broadband system available has its advantages. The hardware itself is engineered for unprecedented flexibility of use. This reduced weight and size makes it ideal for smaller airframes or aircraft already equipped for special missions, but would benefit from the additional capability it delivers.
Applications range from general aviation use to mission-specific military needs. Additionally, powerful options allow the user to tailor the system to their specific needs.
• Built-in router
• Built-in WiFi access
Features
The AVIATOR 200/300/350 system has the following features:
SwiftBroadband unit providing an ‘always on’ data connection of up to 432 kbps.
Full duplex, single or multi-user Automatic satellite selection.
Built-in PBX interfacing to two 2-wire connections, one ISDN interface and WLAN in the SBU, with integrated SIP server.
Standard voice.
3.1 kHz audio for modems, G3 fax, 14.4 kbps high quality voice etc.1
ISDN voice for Secure communication, G4 fax etc.1
ISDN data for video conferences etc.1
Built-in Router option with DHCP and Network Address Translation (NAT).
Access to built-in web interface for daily use on all LAN connectors.
Built-in Wireless option (WLAN) IEEE 802.11 b/g.
Built-in Multi-voice option, up to 1 + 8 concurrent calls (from software 1.07 Level E, 2.01 Level D)
Built-in web interface for configuration using the Maintenance connector on the SBU front plate.
Remote management
ACARS (from software 2.01 Level D)
SB-Safety Voice (ICAO voice) (from software 4.0 Level D) The AVIATOR 200/300/350 system does not affect the operation of an Iridium system.
Interfaces
The availability of some services depends on the installed satcom antenna. Check the section Services on page 3 for an overview of services available for the antenna types LGA, IGA and HGA. The AVIATOR 200/300/350 system has the following interfaces:
Two 2-wire connections for telephone
One ISDN interface
Six Ethernet interfaces
One Wireless interface (WLAN) IEEE 802.11 b/g
One Ethernet interface for system configuration on the SBU front plate (It is used for installation, service and maintenance. It is not used during flight time.)
Built-in router and Wireless options
The AVIATOR 200/300/350 system offers a built-in router as an option. With this option multiple users and applications can use the system simultaneously. Without this option only the first device that connects to the SBU will be allowed on the Internet. The system also offers a built-in WLAN option for wireless communication devices and a WLAN antenna approved for aeronautical use. This includes full WLAN routing functionality. If ordered, these options are enabled in the AVIATOR 200/300/350 from the factory. If these options are not included from the start, the system can be upgraded at a later stage. Then you receive the FLEX key for the purchased options and enter it in the AVIATOR 200/300/350 web interface.
