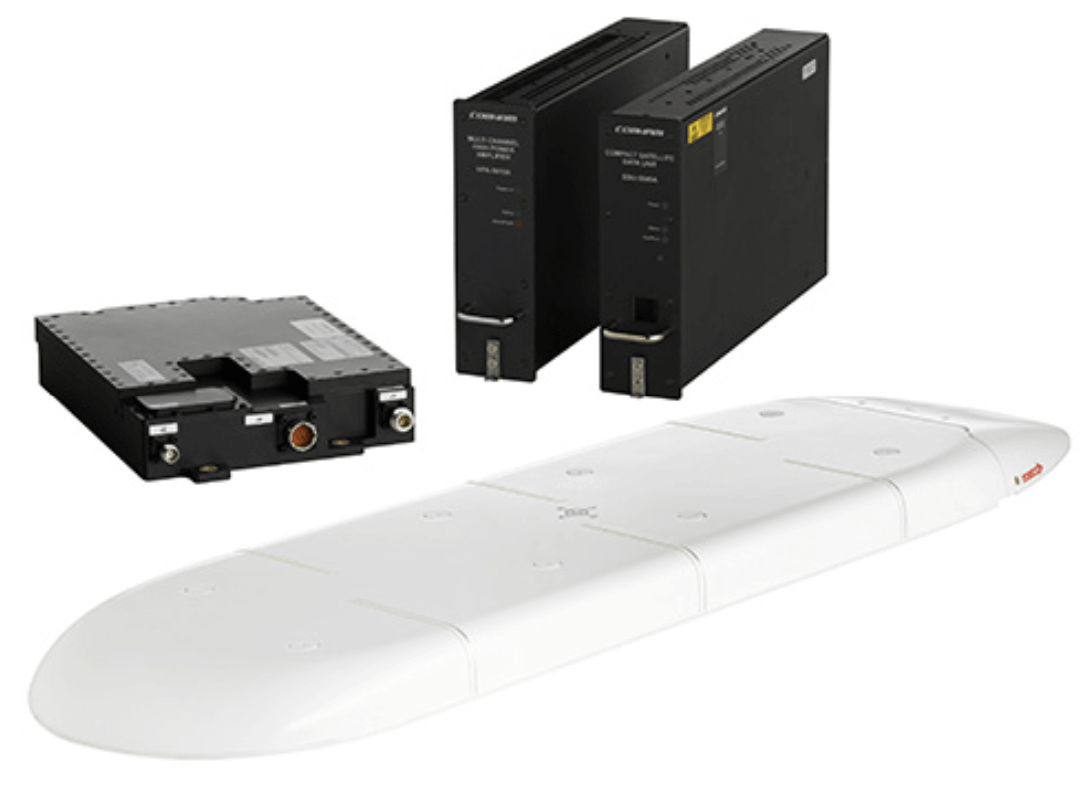

SBB-AV-700S-HGA Cobham Aviator 700S System, Single Channel Class 6, High Gain Antenna
SBB-AV-700S-HGA Cobham Aviator 700S System, Single Channel Class 6, High Gain Antenna

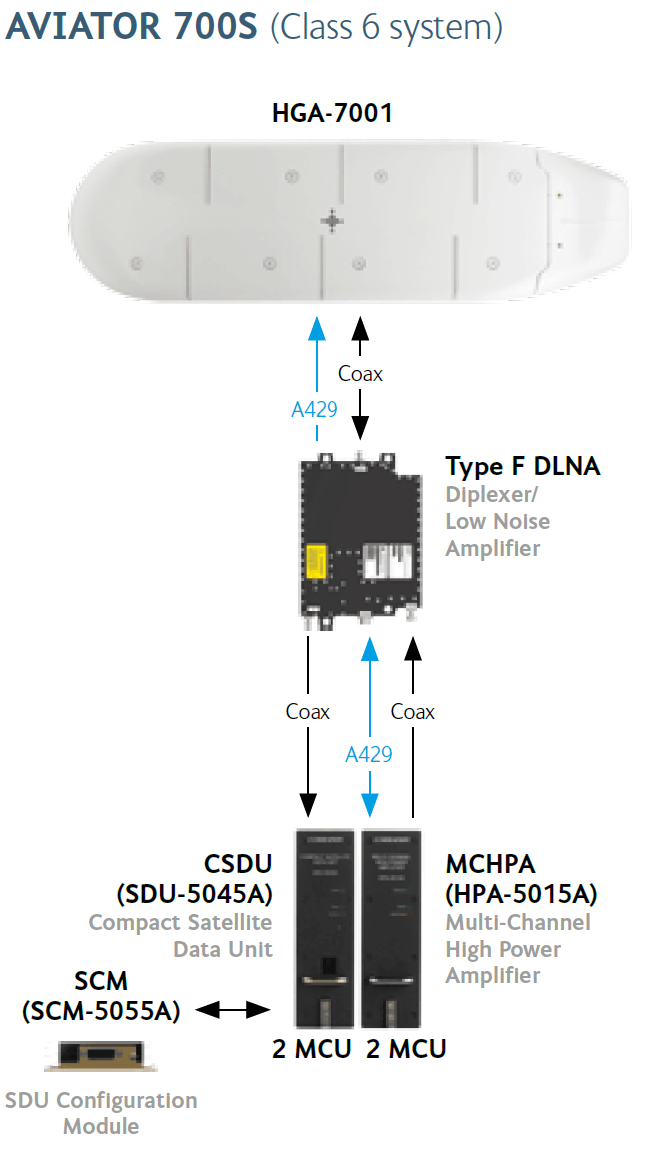

System Overview – AVIATOR 700S
The AVIATOR 700S System improves on the SB-S services provided by the AVIATOR 200S configuration with increased data capability for the EFB connection and a dedicated Cabin Data connection through a separate channel card:
Two simultaneous voice calls supported by multiple aircraft audio configurations.
ACARS Data capability for secure message exchanges between Air Traffic Control (ATC), Aeronautical Operational Control (AOC) and Airline Administrative Control (AAC).
Cockpit Data connectivity (up to 432 kbps) for Electronic Flight Bag (EFB) applications keeping the crew informed and up-to-date at all times.
Cabin Data connectivity (up to 432 kbps) for Cabin Router or In-Flight Entertainment (IFE) applications.
SwiftBroadband-Safety (SB-S) for the Cockpit
SB-S is a comprehensive upgrade of the Classic Aero service, which is a voice and data safety service, used by more than 200 major airlines, jet operators and government agencies, onboard over 13,000 aircraft, processing over 50 million position reports annually.
Classic Aero has been the gold standard for aviation safety communications for the past three decades. However, technology has evolved and SB-S promises to revolutionize the safe flight of airplanes through the skies.
SB-S has global coverage, abundant capacity, full redundancy, unrivalled cybersecurity, and over 99.9% availability worldwide, meeting International Civil Aviation Organization (ICAO) GOLD communications and surveillance performance requirements.
Refer to the INMARSAT website for further information: https://www.inmarsat.com/
SwiftBroadband (SBB) for the Cabin
SwiftBroadband enables passengers to access online services from anywhere in the sky and provides flight crews with real-time information to improve flight operations.
SwiftBroadband is secure, functional and compatible with government-grade encryption standards. Delivering up to 432 kbps (AVIATOR 700S configuration), it’s always on to meet the needs of its customers.
SwiftBroadband solutions provide IP data communication capability to the crew and passengers – from full access to on-board router, email, media streaming services to in-seat mobile phone and text services.
Refer to the INMARSAT website for further information: https://www.inmarsat.com/
