SBD9602N Iridium Beam 9602N SBD Modem

SBD9602N Iridium Beam 9602N SBD Modem

The 9602N combines the global coverage of the Iridium satellite constellation with the low latency of the Iridium SBD(Short Burst Data) Service in a small, compact Module design.

SBD9602N – Whats in the Box

• 9602N SBD Modem
• part# TNCF-SMAM Coaxial Adapter, TNC-Female to SMA-Male
• part# CBLASY008003 DC External Cable

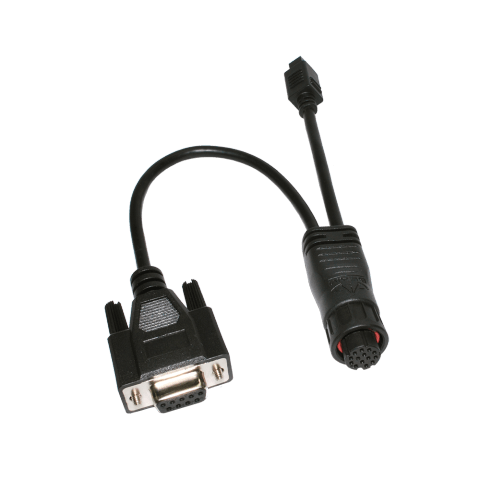

• part# CBLASY014604 Power & IO Cable
• part# CBLASY006701 USB Cable
• Mounting L Bracket with retaining screws
• Documentation – UIM User Instruction Manual
• NOTE: Optional ISD951 Plug-pack is available for purchase, but NOT included in this pack (100-240VAC 50/60Hz input)

DESCRIPTION

The Beam 9602N SBD Modem is a compact, high-performance satellite data communication device designed to deliver reliable connectivity in remote and off-grid environments. Operating on the Iridium satellite network, it enables secure and efficient Short Burst Data (SBD) transmission anywhere on Earth, even where traditional mobile networks are unavailable.

Ideal for integration into IoT, M2M, asset tracking, and monitoring applications, the Beam 9602N ensures seamless global communication for industries such as agriculture, logistics, maritime, and environmental management. Its rugged, low-power design makes it suitable for continuous operation in demanding conditions.

Unlike terrestrial or Direct-to-Device (D2D) networks, the Beam 9602N uses true satellite communication, providing consistent global coverage without dependence on ground infrastructure. It also serves as a complementary solution for Starlink users who require low-data, always-on connectivity for telemetry, control systems, or remote equipment monitoring.

FEATURES

The Beam 9602N SBD Modem offers reliable satellite communication for remote data transfer via the Iridium network. Perfect for IoT applications, remote monitoring, and tracking, it ensures secure, low-latency communication in challenging environments.

Compact, robust form factor: Designed for easy portability and durability, ideal for rugged environments.

Pole-to-pole global coverage: Ensures satellite communication across the globe, including remote locations.

9-32V DC input: Flexible power options for a variety of installations

Short Burst Data capable: Efficient data transfer for remote communication needs with minimal bandwidth usage.

Inbuilt Iridium 9602 SBD Module: Reliable and secure satellite data communication.

USB Data port: Provides easy connection for data transfer.

Serial RS232 Data Port: Enables integration with other devices for data exchange.

Simple AT command set: Easy to use with simple commands for effective communication setup.

Automatic message queue notification: Ensures data messages are automatically queued for delivery when service is available.

Simple Installation: Quick and easy setup with minimal configuration.

Signal LED: Provides clear indication of network connectivity and operational status.

Fully certified: Meets international standards for safety and functionality.

12-month warranty: Offering peace of mind with a manufacturer’s warranty for added reliability.

SBD9602N – SPECIFICATIONS

General

• Dimensions: 90 x 59 x 25 mm
• Weight: 250g
• Warranty: 12 Months

Power

• Input: 9 – 32V DC, 1A
• Power Pack: 100 – 240V AC
• Idle Average: 30mA (0.36W at 12V in)
• Transmit Mode Peak: 125mA (1.5W at 12V in)

RF Characteristics

• Multiplexing Method: TDMA / FDMA
• Speed: 2400 bps
• Frequency Range: 1616MHz to 1626.5MHz
• Oscillator Stability: ±1.5ppm

Environmental

• Operating Temperature Range: -40°C to +85°C
• Operating Humidity Range: <75% RH
• Storage Temperature: -40°C to +85°C
