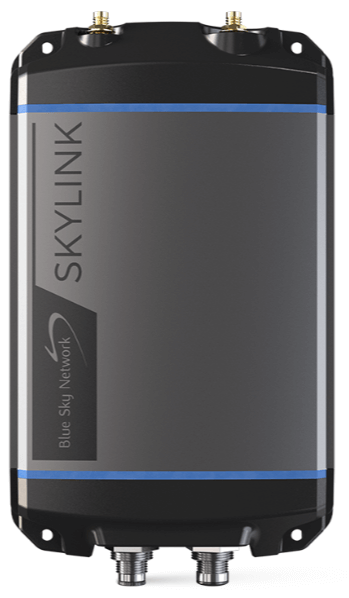

SL7100-AVI SkyLink 7100 Data Gateway, Aviation
$7,526.20 Inc. GST
SL7100-AVI SkyLink 7100 Data Gateway, Aviation
kyLink 7100 offers best-in-class performance for rotorcraft, air transport, defense, and the burgeoning unmanned aircraft (UAS) industry. SkyLink 7100 will also unlock new capabilities for infrastructure monitoring, cargo delivery, aerial firefighting, emergency medical services (EMS), airline information, military, and crew communications.
The SkyLink 7100 is a compact and versatile communications terminal, powered by the Iridium Certus® specialty broadband service, enabling enterprise-grade IP throughput from a constellation of 66 cross-linked satellites for truly global connectivity.
As a certified Iridium Connected® solution, SkyLink 7100 is a low SWaP, mid-band transceiver designed for complete operational efficiency, safety, and continuity coverage.
Its slim design allows for easy integration and installation on aircrafts and UAVs to stream low latency data from onboard sensors, transfer photos, and utilize real-time command and control.
With SkyLink 7100, achieve total connectivity for all assets, in every location, across the globe.
Cloud-based device and user management platform delivering data and voice for global satellite and cellular connectivity.
SkyLink 7100 delivers next generation, global satellite and cellular technology to support voice and data for aviation.
This compact and versatile communications terminal offers 4G/LTE and Iridium Certus broadband satellite technology, switching between each datalink with least-cost routing software.
SkyLink 7100 enables enterprise-grade IP connectivity along with two dedicated high-definition voice channels.
The SkyLink 7100’s small size allows for easy integration and installation on aircraft or the ability to be used as a transferrable portable device.
An optional rechargeable backup battery offers up to 6 hours of continuous power for off-grid sites, power outages, or remote operations.
Enjoy constant connectivity anywhere on the planet.
Key Capabilities and Product Highlights:
- Up to 22 kbps Uplink, Up to 88kbps Downlink
- Enable 4G/LTE and Iridium Certus mid-band connectivity
- Switch between cellular and satellite connectivity using least-cost routing software
- Integrate with SkyWeb and TrooTrax for flight tracking, monitoring, and communication
- Access reporting features to track and manage data usage, positioning, device health, and more
- Low SWaP for easy install on a variety of aircraft
- Support Beyond Visual Line of Sight (BVLOS) and autonomous communications
- Support VoIP, and messaging apps, with the capabilities to support up to 20 SIP clients
CONNECTIVITY
• Iridium Certus Satellite
• Cellular and Wi-Fi connectivity
• GNSS positioning/tracking
• Ethernet, USB, RS232
• Least-cost routing
• Remote device management
• Diagnostics and health monitoring
• Data analytics and edge computing
• Integration with fleet management tools
BASIC SPECS
- IRIDIUM SERVICES: Iridium Certus
- POWER REQUIREMENTS: 10 VDC to 34 VDC
- POWER CONSUMPTION: 18W peak power, 7W nominal
- OPERATING TEMPERATURE: -40°F to 158°F (-40°C to +70°C)
- ENVIRONMENTAL: IP65 Compliant
- DIMENSIONS: H x W x D = 5” x 8” x 1.25”(12.7 x 20.3 x 3.2 cm)
- WEIGHT: 1.6 lbs (0.73kg)
- TESTS: DO-160 Revision G
