ST100165-004 SkyWave IDP-800 Blunt Cut Cable, 0.5m
This is an original spare part.

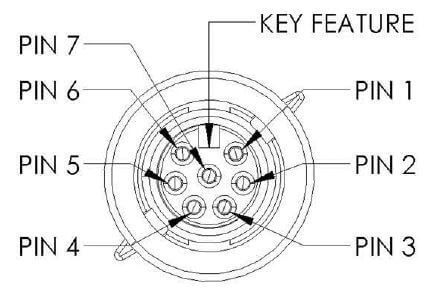

There are a total of seven pins on this blunt cut cable; two connect the terminal to an RS-232 console serial port, three wires to connect to external I/O lines, and one each for ground
and input voltage.
The cable has an over-molded connector, a floating drain wire that is terminated to ground.
Cable drain wires terminated to ground at IDP terminal connector (PIN 1) refer to the users manual.
Temperature rating: -40°C to +85°C
Ultraviolet rating: UV stabilized
