STARPAK-G7-PRO-XSS-1 Starpak IsatPhone 2, PRO Antenna, Fixed Mount
$878.90 Inc. GST
STARPAK-G7-PRO-XSS-1 Starpak IsatPhone 2, PRO Antenna, Fixed Mount
Extreme Hi-Gain Dual Mode Fixed External Antenna for IsatPhone 2, and IsatPhone PRO
Antenna Application: Inmarsat + GPS (as required for Inmarsat IsatPhone 2 and IsatPhone PRO)
- Ideal for unobtrusive fixed installations at a Lightweight 262g(9.2oz) and Micro-Compact 36x102mm(1.4x4in)
- Extreme Low to Very High Temperature Working Range -55° to +85°C (-67° to +185°F)
- Outstanding Performance with Hi-Gain Passive Design for Secure Satellite Access.
Whats in the Box? – STARPAK-G7-PRO-XSS-1
- 1x Extreme Hi-Gain Dual Mode, Inmarsat and GPS Passive Antenna, featuring base exit SMA-F connectors
- 1x Neoprene Adhesive(one side) Base Gasket to protect sensitive surfaces
- 4x 6-32 1/4 Mounting bolts for fixing base, compatible with optional mounting kit.
- 1x Part# STARPAK-G7-PRO-6-SSF Adapter for IsatPhone PRO featuring Gold SMA-Female Connectors
NOTE: does not include any extension cables or SatPhone
Benefits
- Ideal low profile fixed mounting on Land Vehicles, Buses, Heavy Equipment, Marine Platforms and Vessels, and any Remote Buildings.
- Flexible, User Friendly, Cost effective, High Performance antenna solution
- Compact, lightweight fast access the Inmarsat Satellite Network.
- Includes Antenna Adapter that simply plugs into the rear antenna socket of the IsatPhone PRO.
- Ideal low profile fixed mounting on Land Vehicles, Buses, Heavy Equipment, Marine platforms and Vessels, and any Remote Buildings.
- The antenna can be marine mast mounted, or elevated onto the building roof with optional mounting kit.
Mounting Options – Available but NOT included
- MOUNT-MTR2-25-KIT Starpak Iridium Antenna Mount Kit, Passivated Stainless Steel with 25mm Pipe Bracket, and U Bolts
- MOUNT-MTR2-50-KIT Starpak Bull Bar Mount KIT, Stainless Steel, suits any 30-50mm pipe, with Pipe Bracket, and U Bolts
Mounting Profile

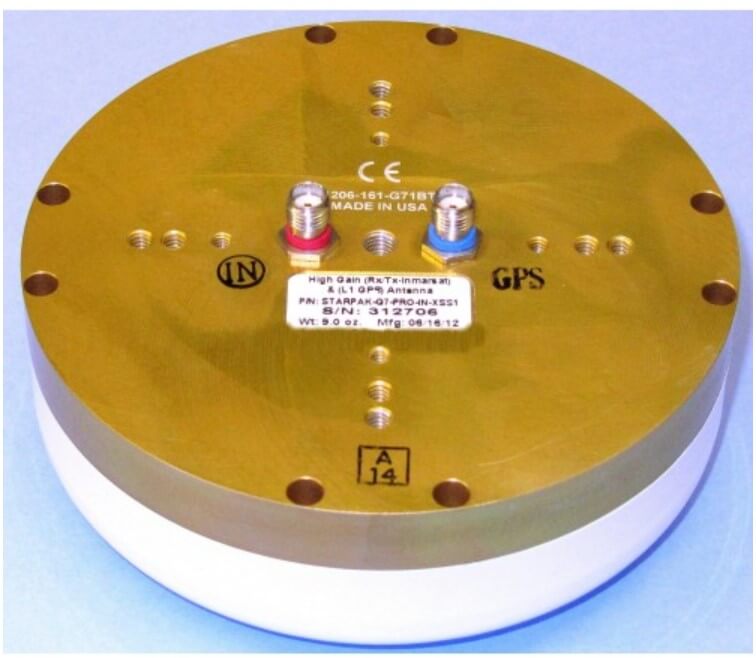

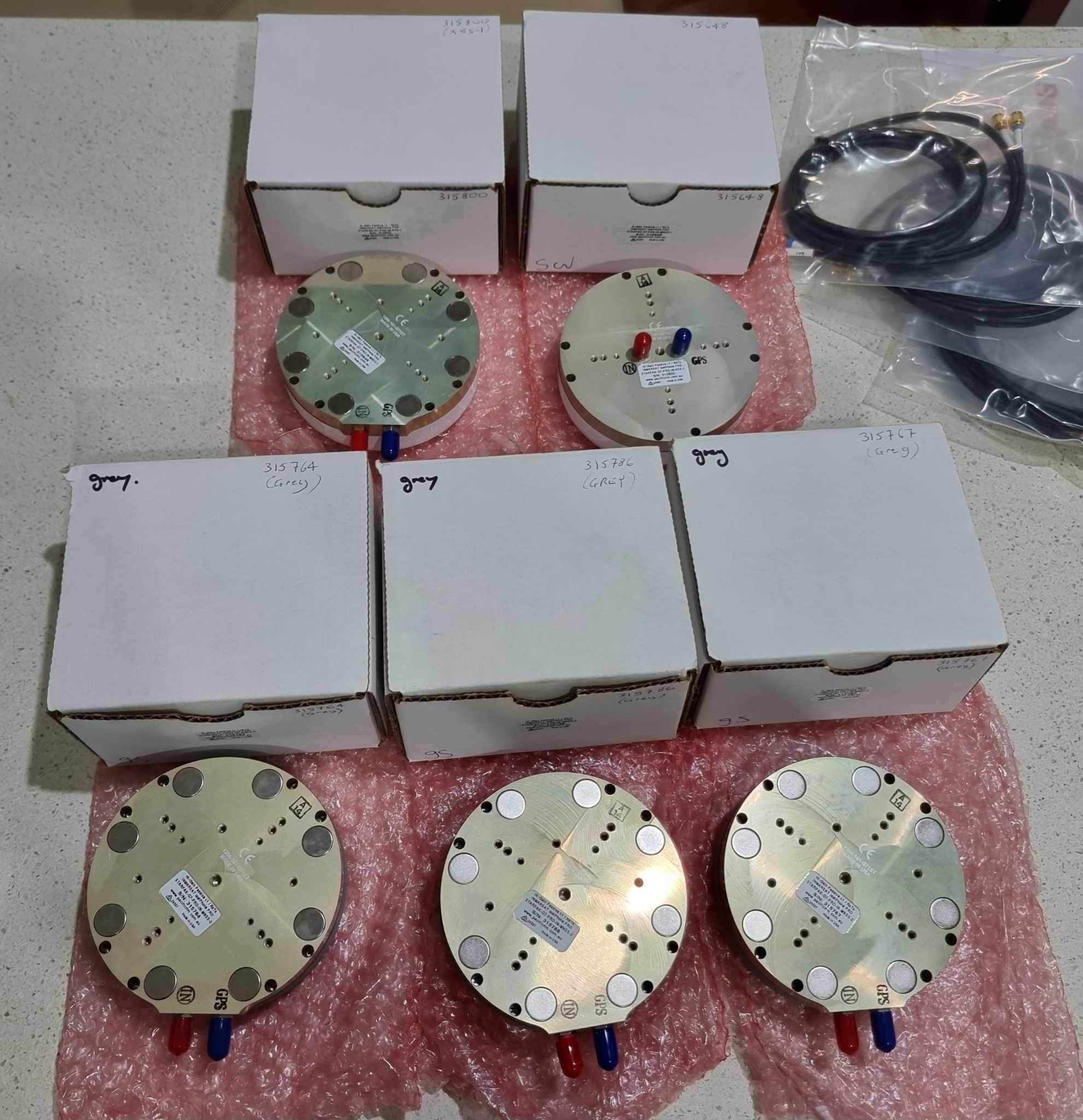

- Base Exit SMA-Female connectors
- Does not require any ground plane.
- Low profile.
- Includes 4x 6-32 1/4in Mounting bolts for fixing base, compatible with optional mounting kit.
- Includes protective neoprene adhesive(one side) gasket to protect sensitive painted surfaces.
- Supplied Part# STARPAK-G7-PRO-6-SSF IsatPhone PRO Adapter Basics
- ISAT Cable: 150mm(6.0in) RG316 cable terminated featuring Gold SMA-Female connector
- GPS Cable: 150mm(6.0in) RG316 cable terminated featuring Gold SMA-Female connector
- Adapter: Cables terminate into the Interface Adapter for IsatPhone PRO
Basic Specs:
- Antenna: 262g(9.2oz)
- Adapter: 22g(0.7oz)
- Total Weight: 262+22g = 284g(9.9oz)
- Packaged/Shipping Weight: 490g(17.3oz)
Available Colours – MILSPEC
- Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-G7-PRO-XSS-1 (supplied by default)
- Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-G7-PRO-XSS-2
- Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-G7-PRO-XSS-3
- Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-G7-PRO-XSS-4
- Lusterless Desert Tan #FS 23446 or 33446(per USA FED-STD 595B) : Part# STARPAK-G7-PRO-XSS-5
CABLE ORDERING GUIDE
- Part#: STARPAK-G7-PRO-CBL-KIT-95-MSS, is a twin moulded SAT+GPS 2.4m(95in) RG174 micro cable
- Part#: STARPAK-G7-PRO-CBL-KIT-118-MSS, is a two-piece SAT+GPS 3.0m(118in) cable kit for permanent installations
- Part#: STARPAK-G7-PRO-CBL-KIT-236-MSS, is a two-piece SAT+GPS 6.0m(236in) cable kit for permanent longer runs
- Additional Extended lengths are available.
STARPAK-G7-PRO-XSS-1
Starpak™ PRO Antenna Adapter(requires cable) Simply Plugs into your Inmarsat SatPhone – DOES NOT REQUIRE ANY DOCKING STATION INTERFACE
Outstanding Performance with Passive Design for secure Satellite Access.
Fast Deployment to access Inmarsat+GPS Satellite Networks.
Simple, Plug and Go design featuring one adapter for your IsatPhone PRO Satellite Telephones.
Ideal for harsh high-heat or low temperature extreme, and corrosive environments, marine grade.
Compatible with the Inmarsat IsatPhone PRO satellite phone
RoHS compliant
Made in USA,
STARPAK-G7-PRO-IN-XSS-1
TOTAL KIT WEIGHTS
Antenna: 262g(9.2oz)
Adapter: 22g(0.7oz)
Total Weight: 262+22g = 284g(9.9oz)
Packaged/Shipping Weight: 490g(17.3oz)
ADAPTER SPECS, Supplied Part# STARPAK-G7-PRO-6-SSF IsatPhone PRO Adapter:
ISAT Cable: 150mm(6.0in) RG316 cable terminated with Gold SMA-Female connector
GPS Cable: 150mm(6.0in) RG316 cable terminated with Gold SMA-Female connector
Interface Adapter: Optional cables terminate into the Adapter for IsatPhone PRO
Connectors: SMA Gold, Manufacturer: Amphenol Connector, RF coaxial, SMA straight crimp plug, RG174U cable, 50 ohm
Weight: 22g(0.7oz)

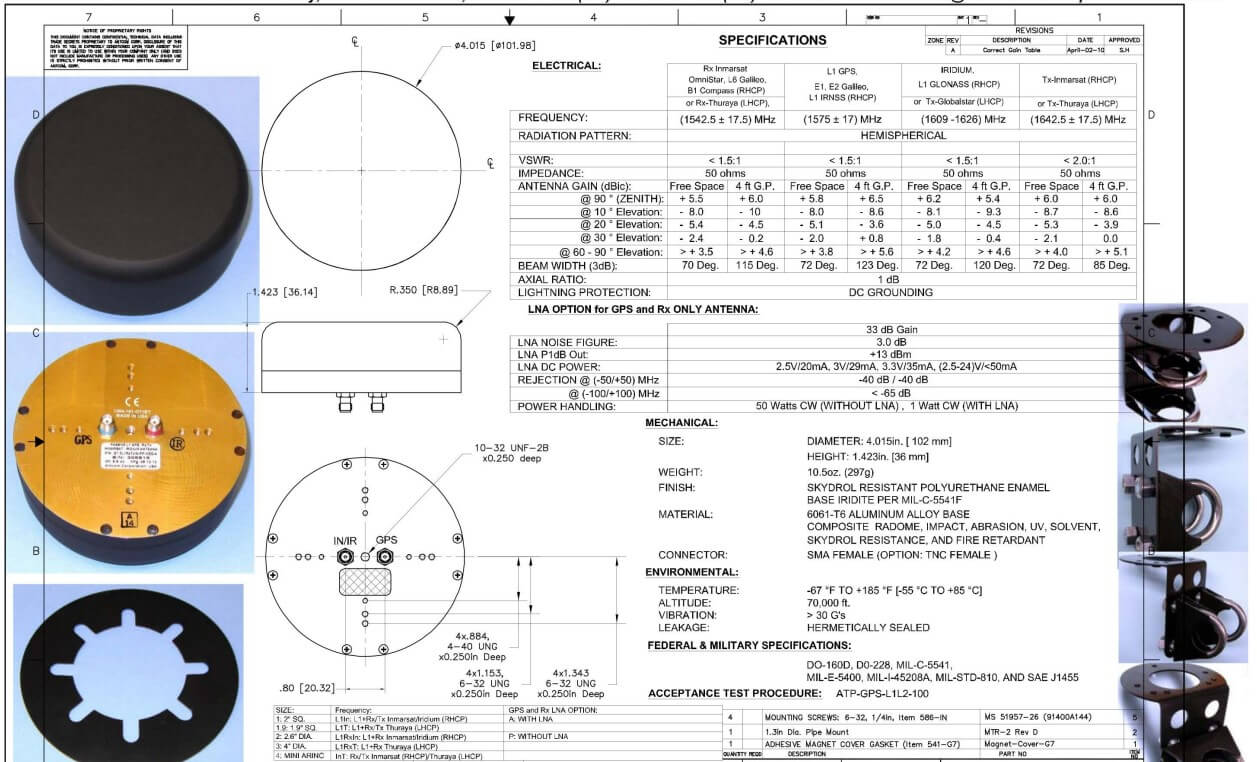

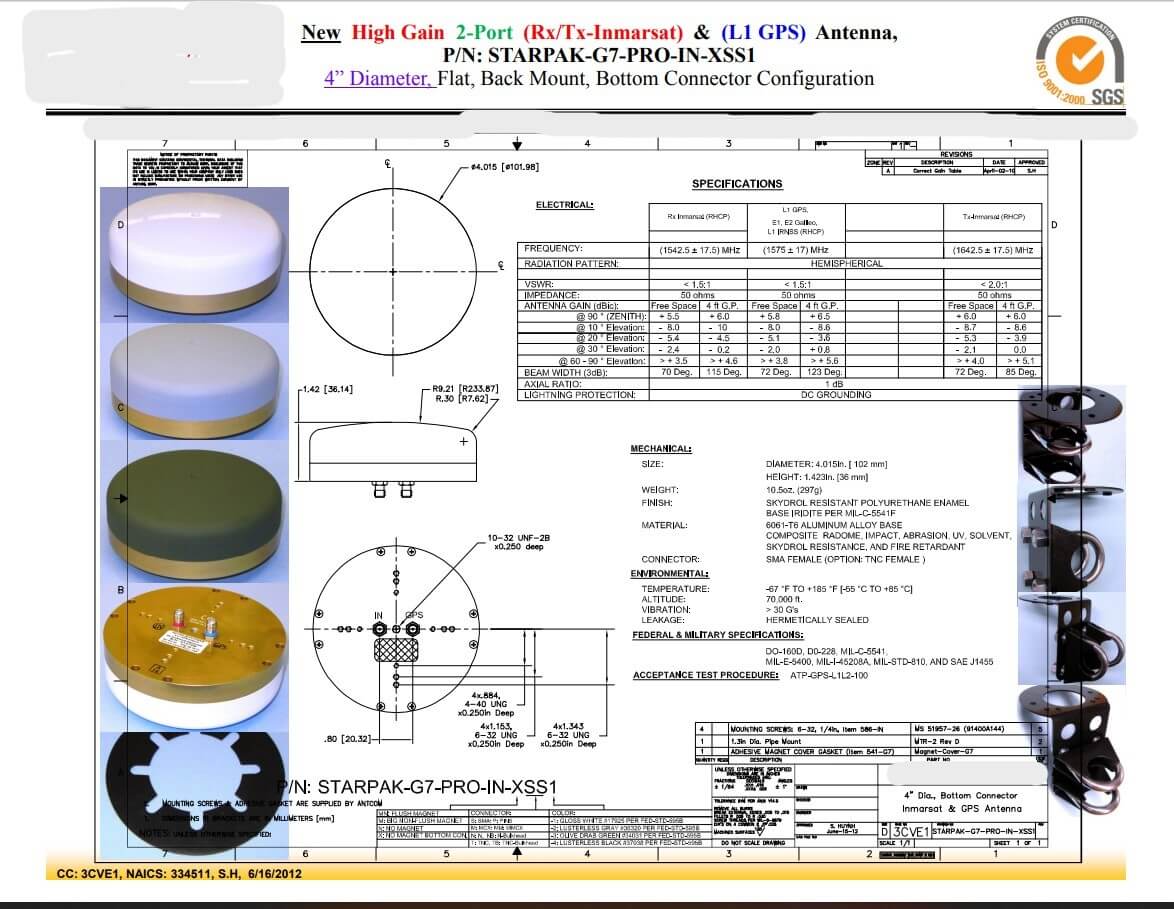

Mechanical
Size: 102mm(4.015in) Dia x 36mm(1.423in) High
Weight: 262g(9.2oz)
Material: 6061-T6 Aluminum Alloy base, Composite Radome, Impact, Abrasion, UV, Solvent, and Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel Base Iridite PER/ MIL-C-5441F
Environmental
Extreme Temperature Operating Range: -55° to +85°C (-67° to +185°F)
Altitude: 21.336m(70,000ft)
Vibration: 30 G’s
Wind Speed: 257kph(160mph) on clean metal surface
Leakage: Hermetically Sealed
INMARSAT TECHNICAL SPECIFICATIONS
Frequency: Rx: (1542.5 ± 24.5)MHz / Tx: (1642.5 ± 32.5)MHz
Radiation Pattern: Hemispherical
VSWR: ……Rx: ……………….< 1.5:1…/….Tx: < 1.5:1 Impedance: 50ohms Gain(bBlc) ……………………………Free Space. -.. 4ft G.P. / Free Space…..-…4ft G.P. @ 90° (ZENITH) -…..Rx:….+5.5…..-…..+6.0…/………Tx:…+6.0…-…..+6.0 @ 10°……………… -..Rx:…..-8.0…..-….-10.0…/………Tx:….-8.7…-……-8.6 @ 20°……………… -..Rx:…..-5.4…..-……-4.5…/………Tx:….-5.3…-……-3.9 @ 30°……………… -..Rx:…..-2.4…..-……-0.2…/………Tx:….-2.1…-……-0.0 @ 60-90°………… -…Rx:.> +3.5…..-…> +4.6../………Tx: >.+4.0..-..>.+5.1
BEAM WIDTH(3dB)…Rx:.70Deg….-.115Deg../………Tx:.72Deg..-.85Deg
Axial Ratio: 1dB
Lightning Protection: DC Grounding
L1 GPS TECHNICAL SPECIFICATIONS
Frequency: (1575 ± 17) MHz
Radiation Pattern: Hemispherical
VSWR: <1.5:1 Impedance: 50ohms Gain(bBlc) ……………………..Free Space. -.. 4ft G.P. @ 90° (ZENITH)… -……+5.8…-……+6.5 @ 10°……………… -…….-8.0…-…….-8.6 @ 20°……………… -…….-5.1…-…….-3.6 @ 30°……………… -…….-2.0…-…….+0.8 @ 60-90°………… -….> +3.8…-…> +5.6
BEAM WIDTH(3dB)….72Deg..-…..123Deg
Axial Ratio: 1dB
Lightning Protection: DC Grounding
NETWORK, USA FEDERAL AND MILITARY SPECIFICATIONS
Manufactured in USA
Compatible with Inmarsat and GPS L1 Satellite Networks.
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
Acceptance Test Procedure: ATP-GPS-L1L2-100
MANUFACTURER COMPLIANCE
1) ISO 9001-2008: Registered through SGS
2) TSO C-144: Registered through FAA
3) Environmental: TCA/DO-160D, TSO C144
4) Lightning: DO-160F, Direct Effects, Section 23
5) Electrical: TSO C144, RTCA/DO-228/DO-254, Mil-STD-461F
6) CE: EMC Directive 89/336/EEC European Union) & 47CFR, Part 15, Subpart B (FCC)
7) EMC.Emission: EUROPEAN STANDARD EN 55022: 2006 / UNITED STATES STANDARD 47 CFR PART 15, SUBPART B
8) Immunity: EUROPEAN STANDARD EN 55024: 1998, Amendment A2: 2003
9) Pick/Place, Soldering, Circuit Boards: IPC JSTD-001D, IPC-A-610D, ESD-STD-20.20, JESD-625a, IPC-A-610C Class 3
10) Printed Circuit Board (PCB): IPC-A-600G.
11) Connectors/Adapters/Cables: MIL-PRF-39012/55339, IPC JSTD-001D
12) Stainless Steel Material for Screws: DFARS 252-225-7014/DFARS 225.872-1, and MS Standards.
13) Aluminum Material: A16061-T6 per ASTM-B-221.
14) Chem Film: Mil-C-5541F Type I Class 1A for Yellow, Type II Class 1A for Clear.
15) Black Anodize: MIL-A-8625F Type II Class II.
16) REACH Compliance: SVHC Candidate List Published by European Chemical Agency (ECHA) on Oct-28-2008 Regarding Regulation (EC) No 1907/2006 Concerning REACH
17) CAGE Code: 3CVE1; ECCN: 5A991.b.4; HTS: 8529104000
18) Country of Origin: USA.
These commodities and technology are from the United States and exportable in accordance with the export
Administration regulations. Diversion contrary to U.S. law is prohibited.
Brand
Starpak
Whats in the Box? – STARPAK-G7-PRO-XSS-1
- 1x Extreme Hi-Gain Dual Mode, Inmarsat and GPS Passive Antenna, featuring base exit SMA-F connectors
- 1x Neoprene Adhesive(one side) Base Gasket to protect sensitive surfaces
- 4x 6-32 1/4 Mounting bolts for fixing base, compatible with optional mounting kit.
- 1x Part# STARPAK-G7-PRO-6-SSF Adapter for IsatPhone PRO featuring Gold SMA-Female Connectors
NOTE: does not include any extension cables
