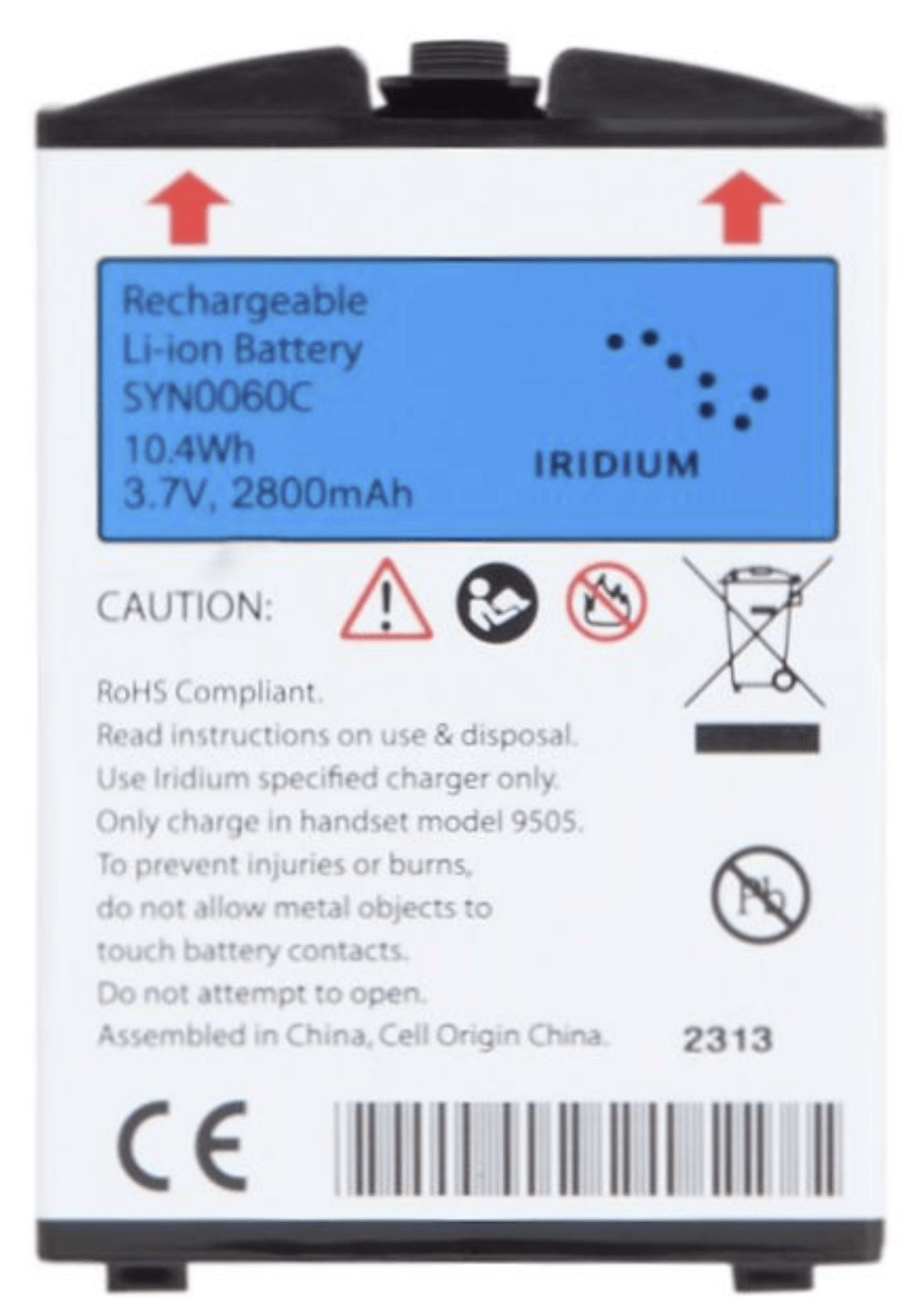

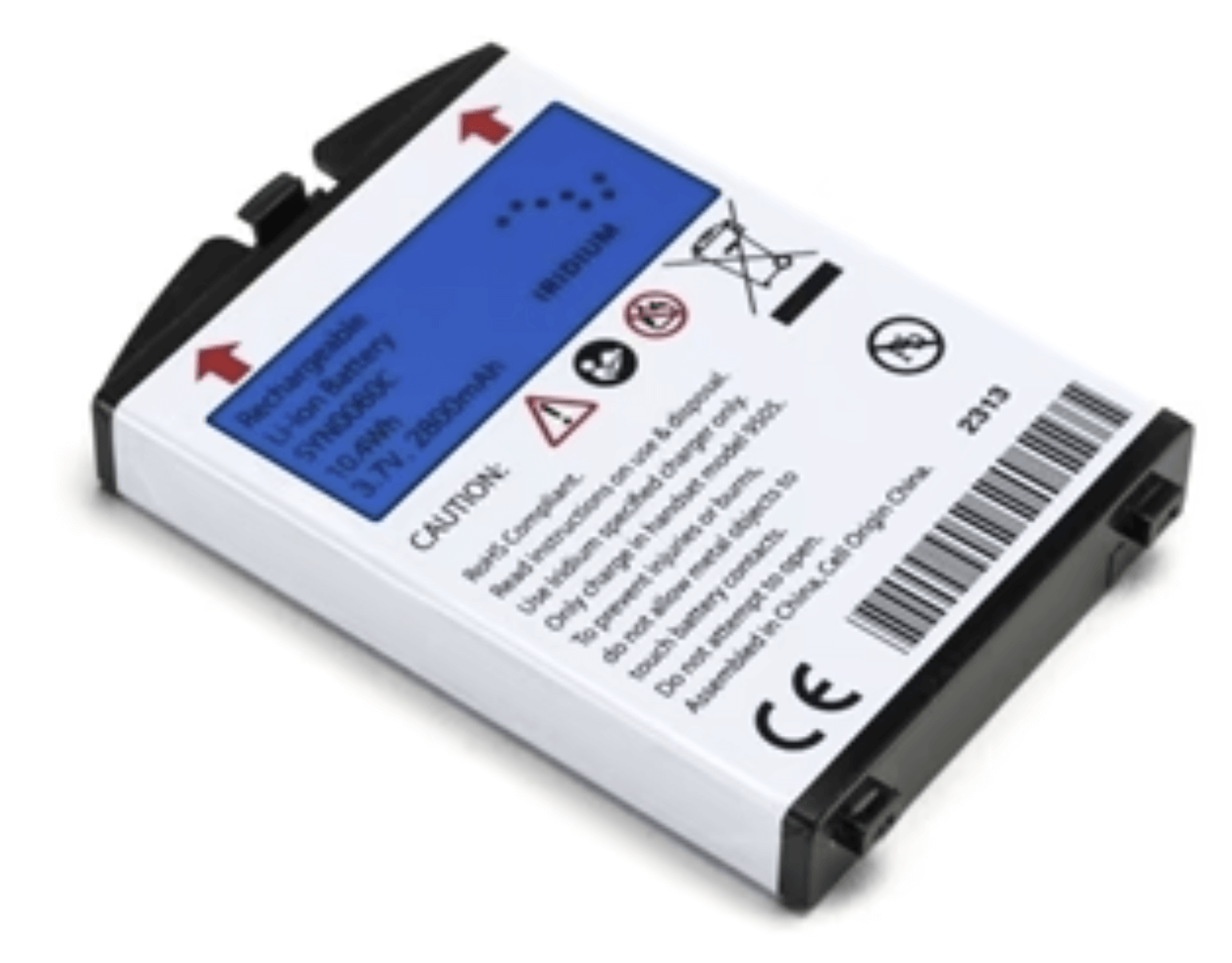

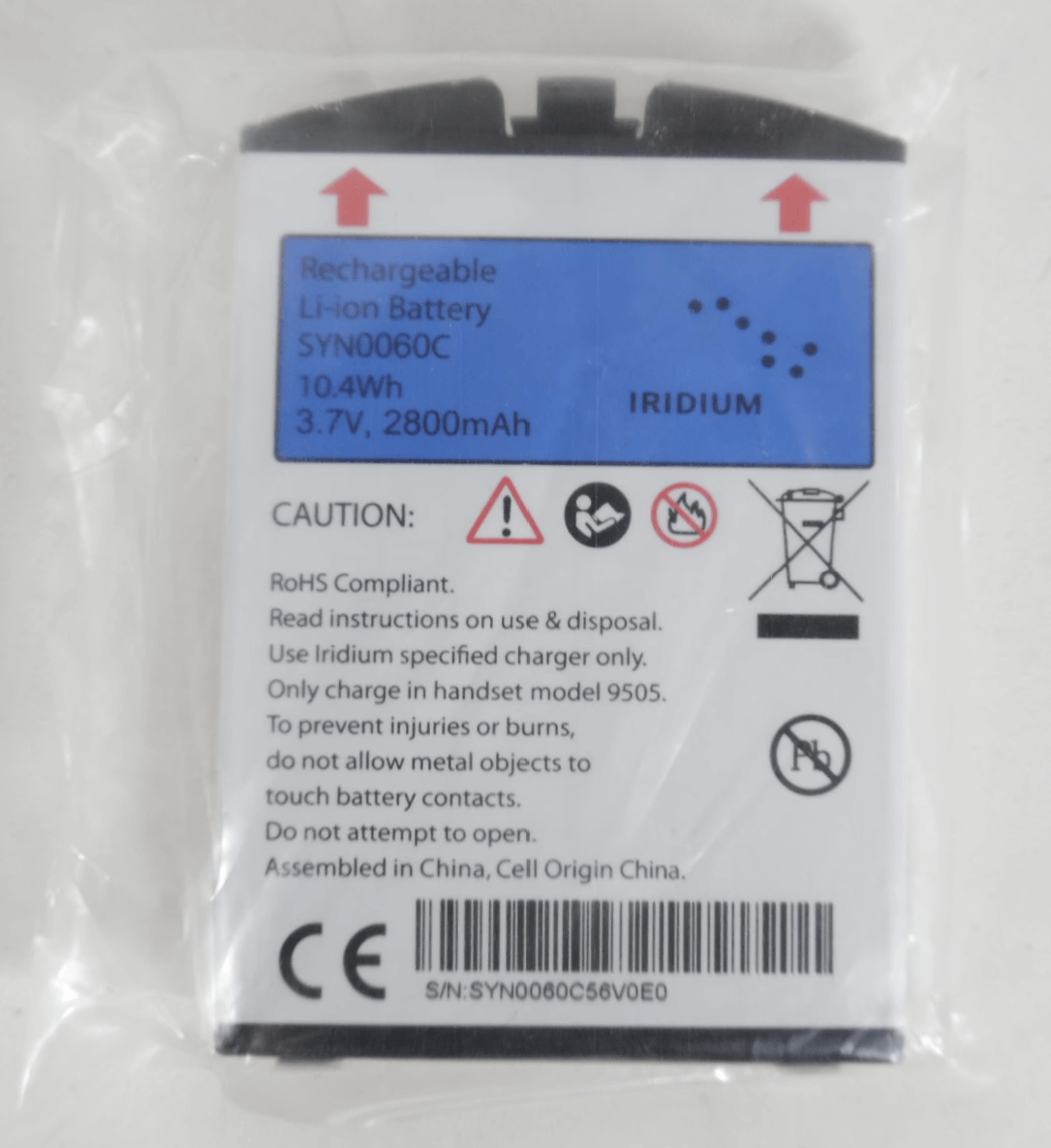

SYN0060C Iridium 9505 Battery, 2800mAh 3.7V Li-on, 10.4Wh

SYN0060C Iridium Battery, 2800mAh 3.7V Li-on for 9505 and 9500

This is the Genuine Iridium Factory Spare replacement part as originally supplied with the Iridium 9505 and 9500 Satellite Telephone kits.

• NOT for use with 9505A models or later.
• Replaces obsolete model numbers: SYN0029A and SNN5326C
• Compatible with 9505 and 9500 series only

This Iridium high capacity battery is suitable for Motorola 9500 or 9505 portable phones only. Talk time and standby time vary by phone.

Specifications

• Capacity: 2800mAh, 10.4Wh
• Composition: Lithium-ion
• Increases talk time to 3.8 hours
• Increases standby time to 34 hours
• Charge time: Via handset 2.5 hours is typical 90% capacity at 25°C (77°F)
• Charge Conditions: Only between 0°C (32°F) and 40°C (104°F).
• RoHS compliant
• Weight: 98 grams (3.4 ounces)
• NOTE: Talk-time and Standby-time may vary due to environmental factors such as: Age of Battery and condition, temperature, humidity, and lengh of time since the last charge input cycle, and if the battery has been subject to impact or liquid ingress such as is experienced by being stowed in high humidity or trapped moisture conditions.

MSDS (Material Safety Data Sheet) – Refer to the attached MSDS Document that covers:

• SYN0060C(10.4Wh) – this battery for 9505 and 9500 series Iridium SatPhones
• BAT0602(10.4Wh) – for 9505A series Iridium SatPhones
• BAT20801(8.1Wh) – for 9555 series Iridium SatPhones
