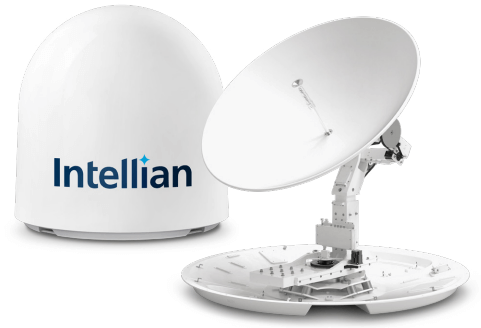

T4-151BW3 Intellian T150N Global Satellite TV Antenna System, 1.5m, V150NX Radome, (Maritime)

Television everywhere: WorldView™ LNB module will automatically switch to the corresponding Ku-band local frequency and receive the signal without the need to switch the LNB.

Unlimited azimuth range: With Intellian’s unique rotary joint and slip ring solution, those onboard will enjoy uninterrupted TV services no matter the number of turns the vessel makes.

The t130N provides outstanding performance with a 1.25m reflector with the added benefits of all new hardware and pedestal based on our quality-proven VSAT NX terminals. Modular components are used throughout the new t-Series range, such as the main control unit and skew assembly. Sharing common modules across Intellian’s new t-Series antenna reduces the number of spare parts required.

Fully integrated solution

• With its Wi-Fi enabled ACU, users can connect wirelessly to the antenna using AptusNTV.
• AptusNTV offers users instant diagnostics, performance logging functions, and one touch updates of firmware and the satellite library
• Programmable WorldView™ Ku-band LNB
• DVB-S2 Digital TV receptions

All new hardware structure

• Modular components are used throughout the new t-Series range

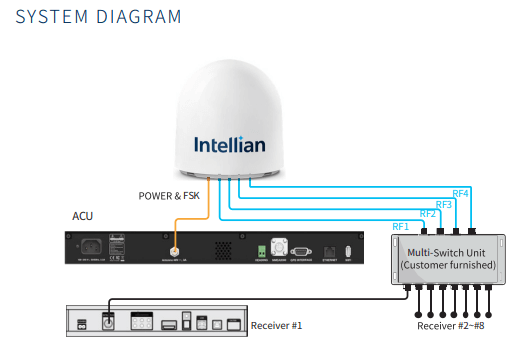

• Five cable configuration for easy installation
• Unlimited azimuth range, eliminates the need to wait for the antenna to unwrap the cable length once reached.

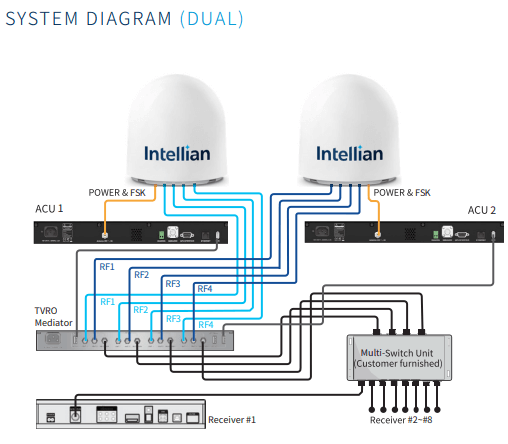

• Dual functionality via external Mediator

SYSTEM HIGHLIGHTS
• 5 cable configuration
• All New hardware structure
• Pre-programmable WorldView Ku-band LNB
• Unlimited azimuth range
• DVB-S2 Digital TV receptions
• Wi-Fi connectivity enable
• User-friendly SW platform for antenna M&C
• Matching dome solution
• Dual setup via external Mediator
