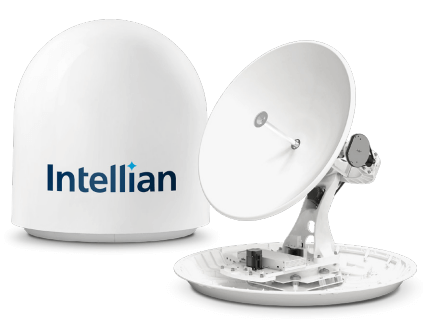

T4-91BW3 Intellian T85N Global Satellite TV Antenna System, Ku-band, 85cm, V85NX Radome, (Maritime)

85cm Reflector Ku-band Global Satellite TV System

The t85N provides outstanding performance in an 85cm reflector with the added benefits of all new hardware and pedestal based on our quality-proven VSAT NX terminals. Modular components are used throughout the new t-Series range, such as the main control unit and skew assembly. Sharing common modules across Intellian’s new t-Series antenna reduces the number of spare parts required.

Fully integrated solution

• With its Wi-Fi enabled ACU, users can connect wirelessly to the antenna using AptusNTV.
• AptusNTV offers users instant diagnostics, performance logging functions, and one touch updates of firmware and the satellite library
• Programmable WorldView™ Ku-band LNB
• DVB-S2 Digital TV receptions

All new hardware structure

• Modular components are used throughout the new t-Series range

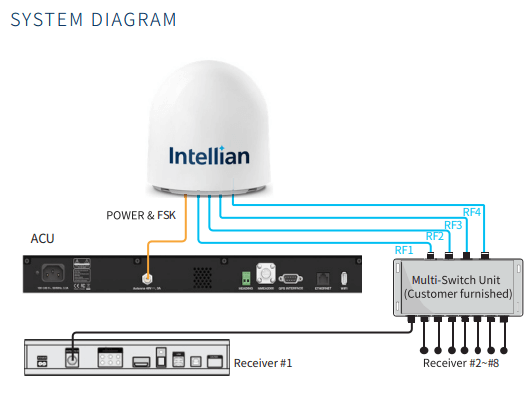

• Five cable configuration for easy installation
• Unlimited azimuth range, eliminates the need to wait for the antenna to unwrap the cable length once reached.

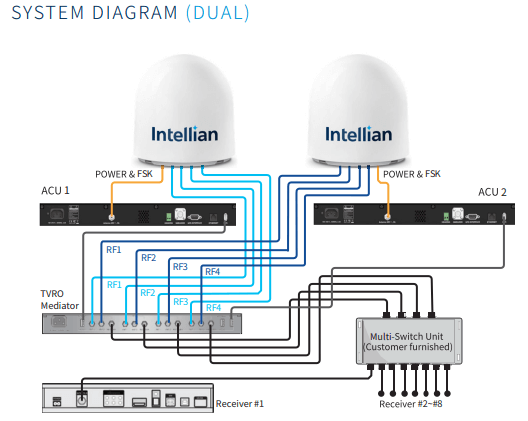

• Dual functionality via external Mediator
