ST100643-001 Orbcomm TS 300 Temperature Sensor, Wireless
Hassle-free temperature sensing for industrial cold chain monitoring applications
ST100643-001 Orbcomm TS 300 Temperature Sensor, Wireless
Hassle-free temperature sensing for industrial cold chain monitoring applications.
- Wireless temperature monitoring Independent of refrigeration unit
- Helps maintain cold chain compliance
- Ruggedized, versatile and accurate
- Part of a comprehensive solution
- Quick installation
- Long battery life

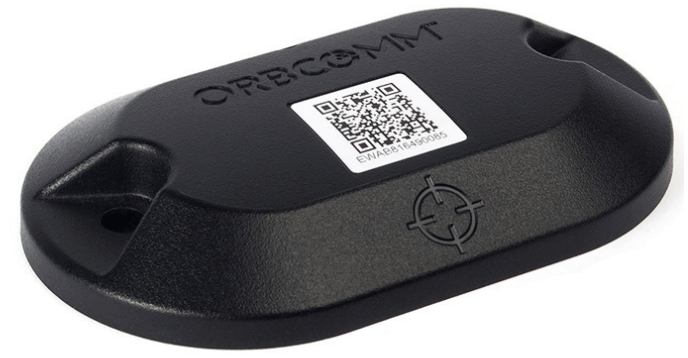

ORBCOMM’s TS 300 wireless temperature sensor helps ensure the integrity of temperature-sensitive cargoes, such as refrigerated or frozen foods and pharmaceuticals, as they move along the supply chain.
Used with the ORBCOMM® AG 400, the sensor provides both general cargo area temperature and multi-zone monitoring in refrigerated trailers and trucks Independent of the refrigeration unit.
Precision and Compliance
Temperature sensors allow truck and trailer temperature to be measured independent of the refrigeration unit.
Sensors can be placed in multiple compartments of the truck/trailer to achieve more precise temperature monitoring and meet regulatory compliance.
Hassle-free installation and maintenance
Wireless connectivity makes installation quick and easy since wiring is not required.
The wireless sensor eliminates maintenance and repair costs as there are no wires that might be damaged during day to day operations that would necessitate repair or replacement of the sensor.
Low operational costs make the wireless sensor ideal for deployment across large fleets.
Ruggedized
The IP67-rated TS 300 is built to withstand harsh operating environments that include dust, humidity, water, shock and vibration, for reliable reporting in all conditions.
Long service life
The TS 300 delivers a minimum of 5 years of reporting without the need for maintenance or replacement.
TS-300 SPECIFICATIONS
Compatibility
• AG 400 Environmental
• Operating Temperature: -40 °C to +85 °C
• Dust and water ingress: IP67
• Vibration: SAE J1455 (Sec 4.10.4.2 figures 6-8);
• Shock: MIL-STD-810G (Sec 516.6 procedure I, Section 2.3.2c) Accuracy
• ± 0.5 °C from -40 °C to 85 °C
Communications
• Bluetooth Low Energy (BLE) version 4.0
• Low power, short range protocol using 2.4GHz band
Certification and compliance
• CE Mark:
» EN 301 48917
» EN 301 489-1
» EN 62638
• FCC regulation 47 CFR 15
• Industry Canada:
» ICES-003
• RoHS
• EN 12830:2018-101 (Pending)
• WELMEC 7.21
• GAMP 511 – When used in combination with the MX2
Power
• Lithium battery with 1000 mAh capacity
• Up to 5 years of operation Mechanical
• Dimensions: 102 mm x 64 mm x 15 mm
• Weight: 97 g
Ordering Codes
Part Number: ST100643-001
