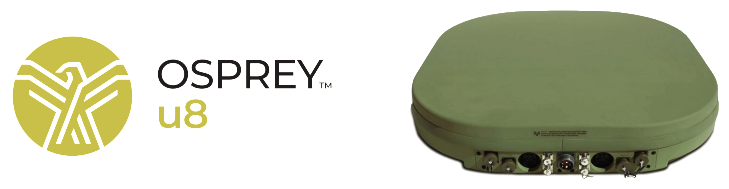

U8722-30310-0 Kymeta Osprey u8, Green Carc, 20W BUC, 950MP, OW, ISDW, (Land)

SKU: U8722-30310-0

U8722-30310-0 Kymeta Osprey u8, Green Carc, 20W BUC, 950MP, OW, ISDW

Provides a complete customized connectivity platform for the military community for communications-on-the-move (COTM), networks-on-the-move (NOTM), and communications-on-the-pause (COTP).

This new terminal mounts easily on a wide array of military vehicles and vessels to provide connectivity in remote and challenging locations.

FEATURES

  • EASE OF USE — Requires minimal training with mobile, auto-acquire functionality
  • DURABLE — Designed and tested to military specifications including MIL-STD-810 and MIL STD-1275
  • FLEXIBLE — Contains a modular expansion tray enabling field installation of mission-specific cartridges and additional external modems
  • RESILIENCY — Enables automated path diversity in contested environments
  • EXTENDED ENVIRONMENTALS — Built for operation in the most demanding and extreme land mobile and maritime environments
  • LOW POWER REQUIREMENT — Operates on native DC power (130 watts typical) for use on a range of platforms from the smallest utility vehicles to the largest logistics vehicles
  • LOW TOTAL COST OF OWNERSHIP — Antenna has no moving parts and a high MTBF
  • INCREASED SURVIVABILITY — Designed for low profile integration and low thermal signature
  • LEO-EXPANDABLE — Anticipates LEO constellations with dual GEO/LEO operation capability for multi-orbit/multi-network use

$184,690.00 Inc. GST

Compact dual-band, dual-pol solution

  • Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
    – electronically seamless switch between services to maximize bandwidth and network access
    – Uninterrupted by bad weather using Ku-band
  • Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
  • Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.

Future proof: multi-orbit tracking

  • Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites
  • Dual antenna installation support for NGSO make-before-break HOs
  • Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
  • GEO & MEO tracking system (program tracking and conical scanning)

Brand

Kymeta
