U8ACC-00004-0 Kymeta Universal Mount Kit for upgrading U7 to U8 Terminals
$866.80 Inc. GST
U8ACC-00004-0 Kymeta Universal Mount Kit for U8 and U7 series Terminals

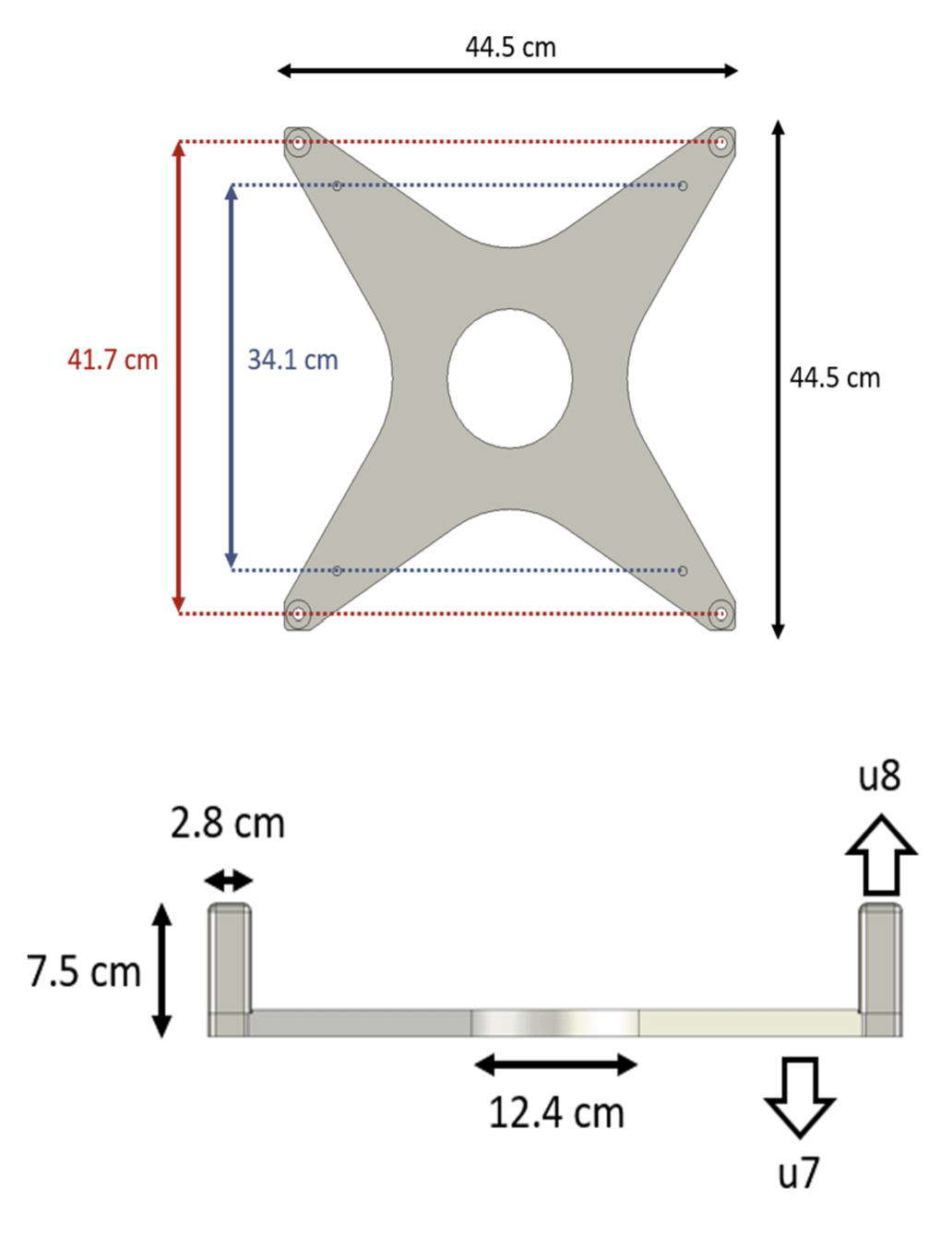

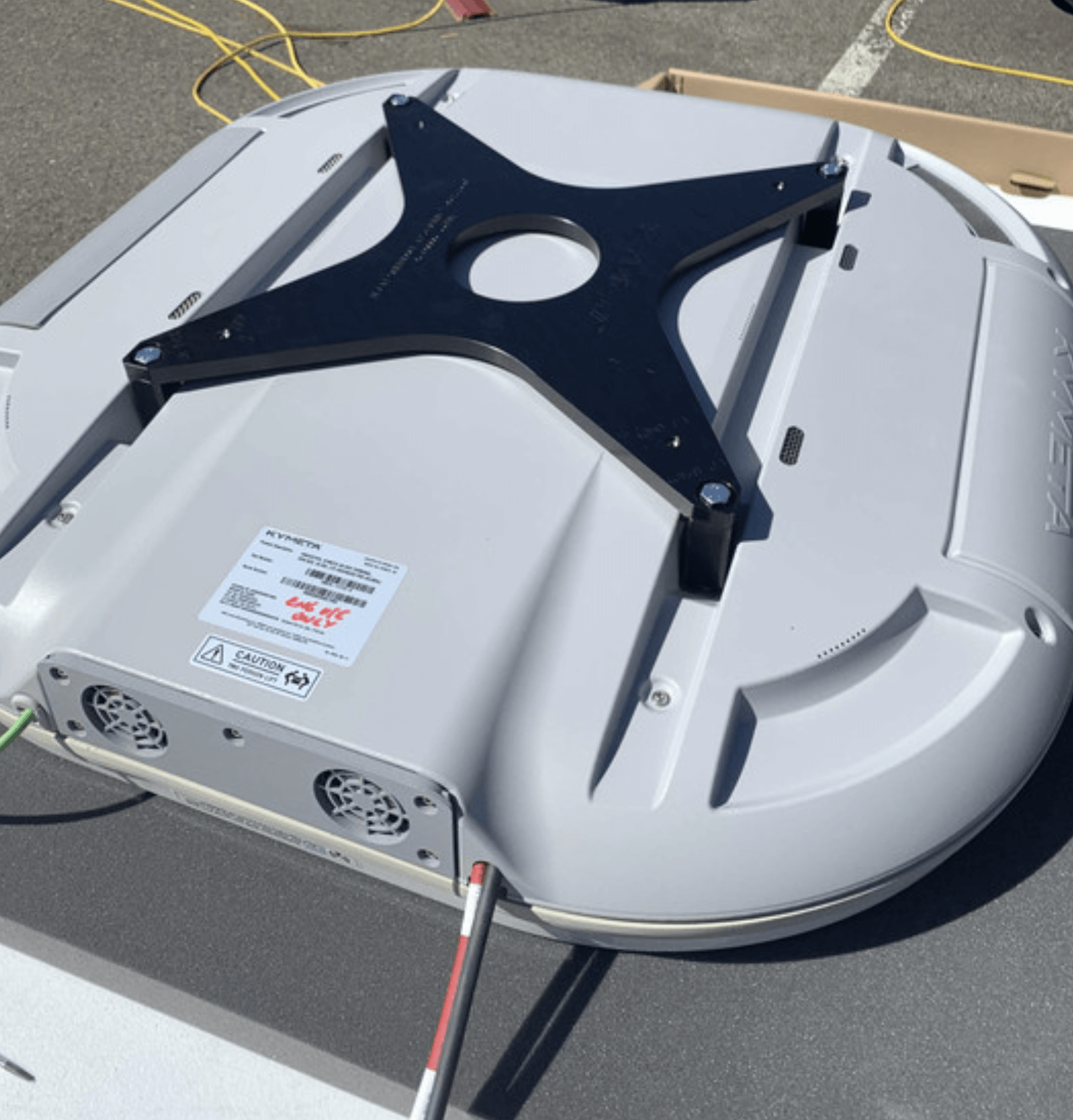

Use this universal mounting plate to modify an existing u7 mounting structure to accommodate a u8, or use it for any static / stationary installation.
The primary mounting points on the u8 have 15 mm of M10 × 1.25 mm threading with a maximum hole depth of 20 mm.
Refer to Universal mounting plate installation instructions (700-00143-000) for details.
Universal Vehicle Mount Plate kit for your Kymeta u8 satellite terminal
Compatibility:
- Hawk u8 ODU / GEO / GEO-LTE
- Goshawk u8
What’s in the kit:
- mounting plate
- stand-off posts
- screws
- Installation Guide
OVERVIEW – Kymeta U8
The Kymeta™ u8 GO provides a complete connectivity solution for on-the-go communications when and where you need it. The easily manoeuvrable u8 GO can support communication while in the case, on the ground or mounted on a vehicle for easy deployment in a multitude of use cases.
The transportable configuration has been custom designed for the revolutionary software-defined, electronic beam steered Kymeta™ u8 terminals.
The multi-function hardened case is tested to MIL-STD-810H transportation standards and comes with hardened tie down points.
Kymeta™ Broadband connectivity packages for the u8 with are available in either satellite-only or satellite/cellular by-the-gigabyte packages, and the all-inclusive bundle of hardware, connectivity, and support, Kymeta Connect,™ is offered at an affordable monthly rate.
KEY FEATURES
- PORTABLE AND RUGGED: WITH A HARDENED, STACKABLE CASE, THE KYMETA U8 GO PROVIDES THE FASTEST OUT-OF-THE-BOX COMMUNICATION ANYWHERE—JUST ADD POWER.
- ELECTRONICALLY STEERED ANTENNA: SOFTWARE-DEFINED, RECONFIGURABLE, AND UPDATABLE, THE U8 SATELLITE ANTENNA OPERATES OVER THE COMPLETE KU BAND.
- EXTENDED ENVIRONMENTAL COVERAGE: WITH AN ALL OUTDOORS CONSTRUCTION AND IP66 RATING, THE KYMETA U8 GO IS DESIGNED FOR THE MOST DEMANDING ENVIRONMENTS.
- DESIGNED FOR MOBILITY: THE BUILT-IN CAR MOUNT SUPPORTS INSTALLATION ON MOBILE PLATFORMS RIGHT OUT OF THE CASE.
- LEO-UPGRADEABLE: THE U8 ANTENNA ANTICIPATES THE ARRIVAL OF KU-BAND LEO CONSTELLATIONS.
Brand
Kymeta
