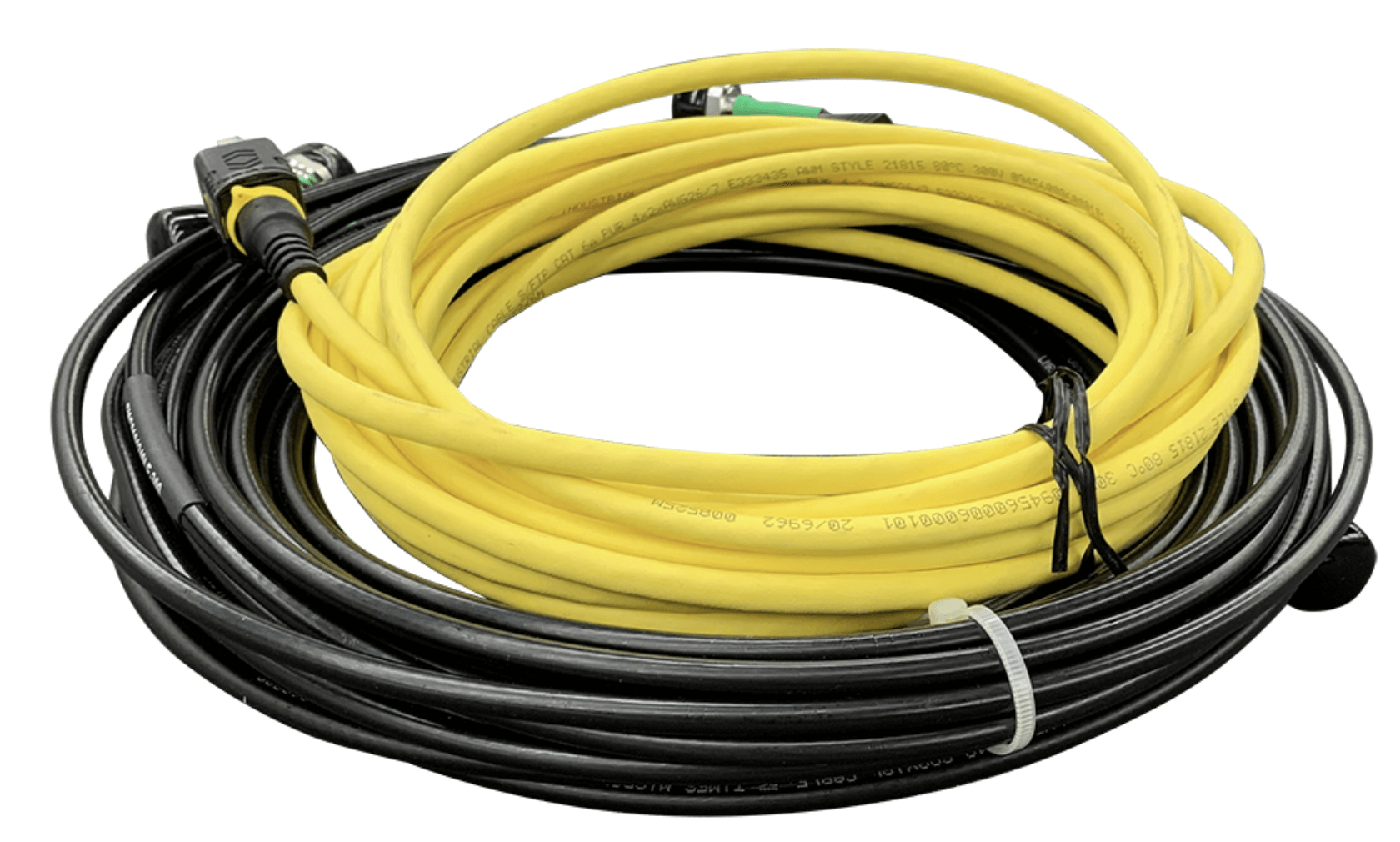

U8ACC-00013-0 Kymeta ODU Cable Kit, RJ45 Data and RF Coax for U8 Terminals, 7.62m(25ft)
U8ACC-00013-0 Kymeta ODU Cable Kit, RJ45 Data and RF Coax for U8 Terminals, 7.62m(25ft) - Image 2
U8ACC-00013-0 Kymeta ODU Cable Kit, RJ45 Data and RF Coax for U8 Terminals, 7.62m(25ft) - Image 3

U8ACC-00013-0 Kymeta ODU Cable Kit, RJ45 Data and RF Coax for U8 Terminals, 7.62m(25ft)

SKU: U8ACC-00013-0

$768.90 Inc. GST

ACCU8-00013-0_Data-and-RF-Cable-Kit_Instructions.pdf ACCU8-00017-0_Kymeta-Cable-Replacement-instructions.pdf 700-00121-000-revG-Kymeta-u8-products-installation-and-user-guide.pdf MILSPEC-FAQS-700_00307_000_rev01_Kymeta_GEO_LEO_Cell_services_bundle.pdf

U8ACC-00013-0 Kymeta ODU Cable Kit, RJ45 Data and RF Coax for U8 Terminals, 7.62m(25ft)

This Cable extension kit is intended to connect 7.62 m (25 ft.) RX, TX, and Ethernet cables to the stock RX cable and TX cable leads and to the Ethernet cable jumper for extended cable reach.

Use this IP66-rated cable kit to attach the Hawk u8 ODU or Osprey u8 to an external modem. Refer to Kymeta u8 products cable extension kit installation instructions (700-00108-000) for details.

Compatibility:

  • Hawk u8 ODU
  • Osprey u8 Hybrid / Hybrid-GEO

What’s in the kit:

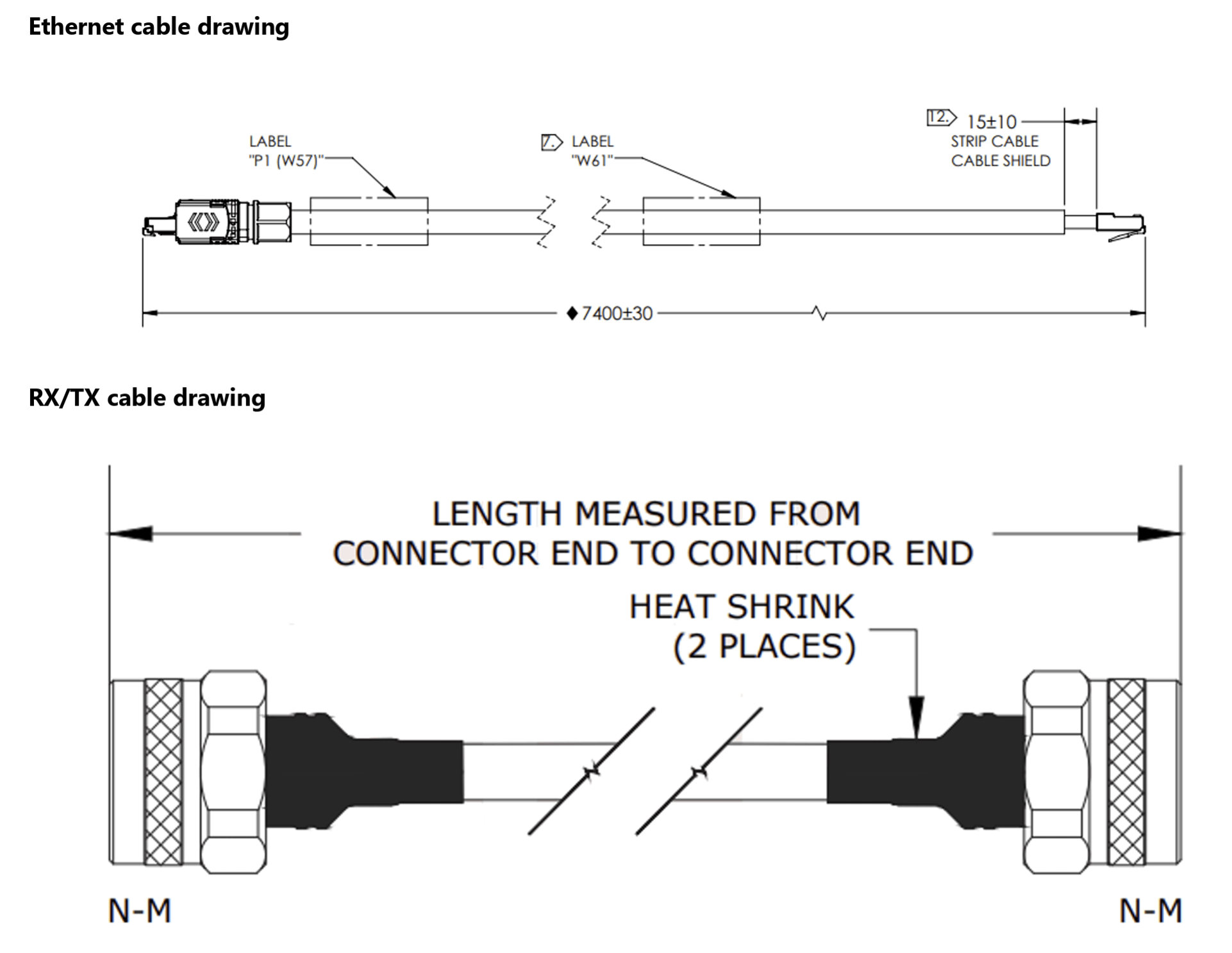

  • (1) RX LMR 240 N-male to N-male cable, 7.62 m (25 ft.) marked by the GREEN RX label
  • (1) TX LMR 240 N-male to N-male cable, 7.62 m (25 ft.) marked by the RED TX label
  • (1) RJ45 plug-to-plug push-pull Ethernet cable, 7.62 m (25 ft.) (2) N-to-F type connectors

OVERVIEW – Kymeta U8 ****************************************************************************************

The Kymeta™ u8 GO provides a complete connectivity solution for on-the-go communications when and where you need it.                        The easily maneuverable u8 GO can support communication while in the case, on the ground or mounted on a vehicle for easy deployment in a multitude of use cases.

The transportable configuration has been custom designed for the revolutionary software-defined, electronic beam steered Kymeta™ u8 terminals.

The multi-function hardened case is tested to MIL-STD-810H transportation standards and comes with hardened tie down points.

Kymeta™ Broadband connectivity packages for the u8 with are available in either satellite-only or satellite/cellular by-the-gigabyte packages, and the all-inclusive bundle of hardware, connectivity, and support, Kymeta Connect,™ is offered at an affordable monthly rate.

KEY FEATURES

  • PORTABLE AND RUGGED: WITH A HARDENED, STACKABLE CASE, THE KYMETA U8 GO PROVIDES THE FASTEST OUT-OF-THE-BOX COMMUNICATION ANYWHERE—JUST ADD POWER.
  • ELECTRONICALLY STEERED ANTENNA: SOFTWARE-DEFINED, RECONFIGURABLE, AND UPDATABLE, THE U8 SATELLITE ANTENNA OPERATES OVER THE COMPLETE KU BAND.
  • EXTENDED ENVIRONMENTAL COVERAGE: WITH AN ALL OUTDOORS CONSTRUCTION AND IP66 RATING, THE KYMETA U8 GO IS DESIGNED FOR THE MOST DEMANDING ENVIRONMENTS.
  • DESIGNED FOR MOBILITY: THE BUILT-IN CAR MOUNT SUPPORTS INSTALLATION ON MOBILE PLATFORMS RIGHT OUT OF THE CASE.
  • LEO-UPGRADEABLE: THE U8 ANTENNA ANTICIPATES THE ARRIVAL OF KU-BAND LEO CONSTELLATIONS.



Brand

Kymeta
