U8ACC-00054-0 Kymeta Fixed Mount, Pole or Mast, for U8 Terminals
$389.40 Inc. GST
U8ACC-00054-0 Kymeta Fixed Mount, Pole or Mast, for U8 Terminals

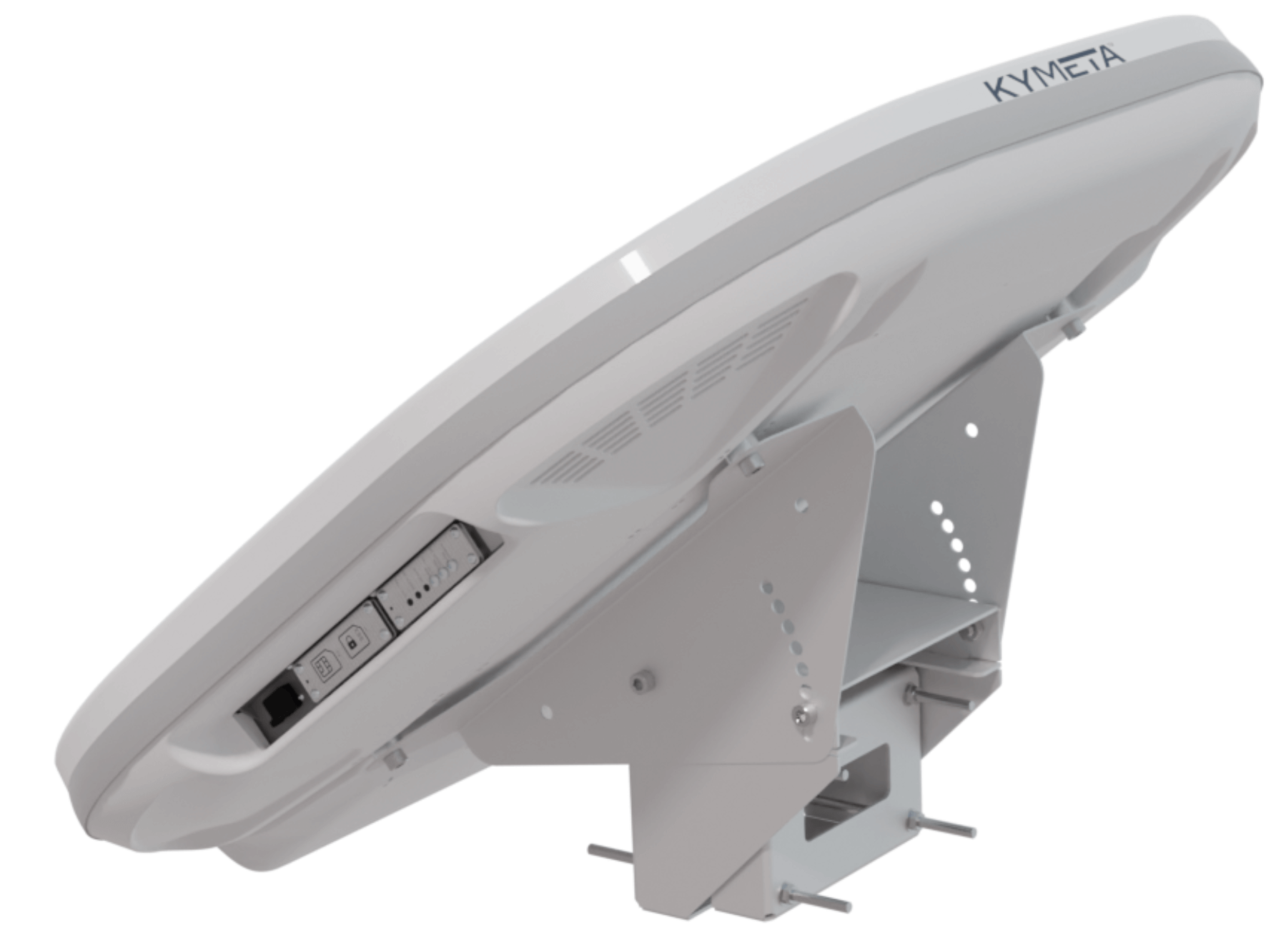

Use this mount to attach the Hawk u8 terminal to poles 3 to 6” diameter for a fixed installation. The mount enables up to 45° tilt.
Compatibility:
- Hawk u8 GEO ODU / GEO / GEO-LTE (Product Codes starting with U8902 and u8912)
- Hawk u8 OneWeb / OneWeb-LTE (Product Codes starting with U8922 and u8932)
What’s in the kit:
- Left and right elevation adjustment brackets
- Pole mounting bracket
- Terminal mounting hardware
- Breakdown of individual items as below….
- (1) fixed mount weldment
- (1) floating clamp
- (4) threaded rod
- (8) M8 × 1.25 mm serrated flange nut
- (1) Antenna tilt weldment, left
- (1) Antenna tilt weldment, right
- (5) M10 × 1.5 mm × 16 mm socket head cap screw
- (5) M10 × 1.5 mm × 80 mm socket head cap screw 8 mm hex L-key
- (1) Loctite 242
OVERVIEW – Kymeta U8
The Kymeta™ u8 GO provides a complete connectivity solution for on-the-go communications when and where you need it. The easily maneuverable u8 GO can support communication while in the case, on the ground or mounted on a vehicle for easy deployment in a multitude of use cases.
The transportable configuration has been custom designed for the revolutionary software-defined, electronic beam steered Kymeta™ u8 terminals.
The multi-function hardened case is tested to MIL-STD-810H transportation standards and comes with hardened tie down points.
Kymeta™ Broadband connectivity packages for the u8 with are available in either satellite-only or satellite/cellular by-the-gigabyte packages, and the all-inclusive bundle of hardware, connectivity, and support, Kymeta Connect,™ is offered at an affordable monthly rate.
KEY FEATURES
- PORTABLE AND RUGGED: WITH A HARDENED, STACKABLE CASE, THE KYMETA U8 GO PROVIDES THE FASTEST OUT-OF-THE-BOX COMMUNICATION ANYWHERE—JUST ADD POWER.
- ELECTRONICALLY STEERED ANTENNA: SOFTWARE-DEFINED, RECONFIGURABLE, AND UPDATABLE, THE U8 SATELLITE ANTENNA OPERATES OVER THE COMPLETE KU BAND.
- EXTENDED ENVIRONMENTAL COVERAGE: WITH AN ALL OUTDOORS CONSTRUCTION AND IP66 RATING, THE KYMETA U8 GO IS DESIGNED FOR THE MOST DEMANDING ENVIRONMENTS.
- DESIGNED FOR MOBILITY: THE BUILT-IN CAR MOUNT SUPPORTS INSTALLATION ON MOBILE PLATFORMS RIGHT OUT OF THE CASE.
- LEO-UPGRADEABLE: THE U8 ANTENNA ANTICIPATES THE ARRIVAL OF KU-BAND LEO CONSTELLATIONS.
