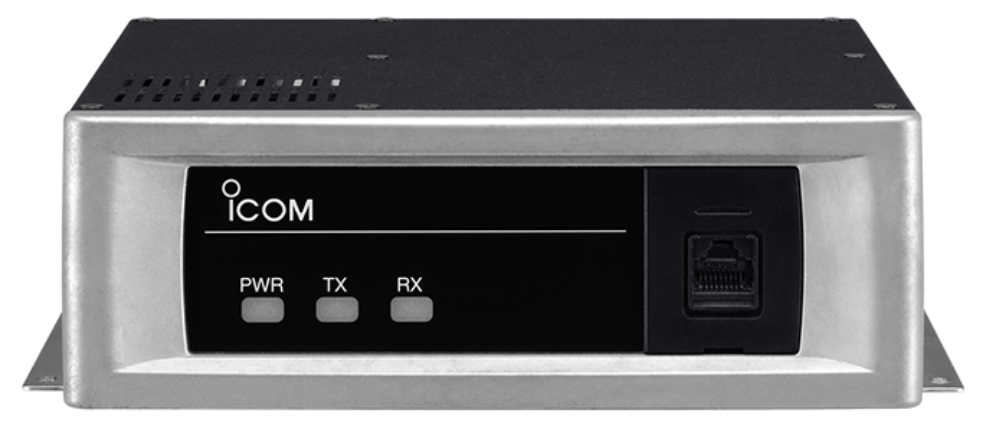

UR-FR6300 Icom VHF Channel Module 50W, for IC-FR6300 for 2CH Repeater
UR-FR6300 Icom VHF Channel Module 50W, for IC-FR6300 for 2CH Repeater
Description: VHF 50W* analog/digital repeater module
* 25 W output power depending on the channel module version.
・Install to IC-FR5300 for 2 channel repeater
・Works as an independent repeater
UHF 50W* analog/digital repeater module
* 25 W output power depending on the channel module version.
・Install to IC-FR6300 for 2 channel repeater
・Works as an independent repeater
Specifications
| Frequency coverage (Varies according to version) |
400–470 MHz (USA, EXP, EUR, CAN) 450–512 MHz (USA) 450–520 MHz (EXP, AUS) 330–400 MHz (EXP) |
|
|---|---|---|
| Number of channels | 32 channels / 1 zones | |
| RF output power (Hi, L2, L1) | 50 W, 25 W, 5 W (USA, EXP, CAN, AUS Versions) 25 W, 10 W, 5.8 W (EUR, EXP Versions) |
|
| Sensitivity | Digital (1% BER) | –4.0 dBμV (0.32 μV) emf typ. (EN301 166) |
| Analog (12 dB SINAD) | –119 dBm (0.25 μV) typ. (TIA-603) –6.0 dBμV emf typ. (EN300 086) |
|
| Dimensions (projections not included; W×H×D) |
176×60×194 mm, 6.9 × 2.4 × 7.6 in | |
| Weight | 2.2 kg, 4.9 lb | |
TYPICAL IC-FR5300/IC-FR6300 Repeater INFO BELOW*****************************

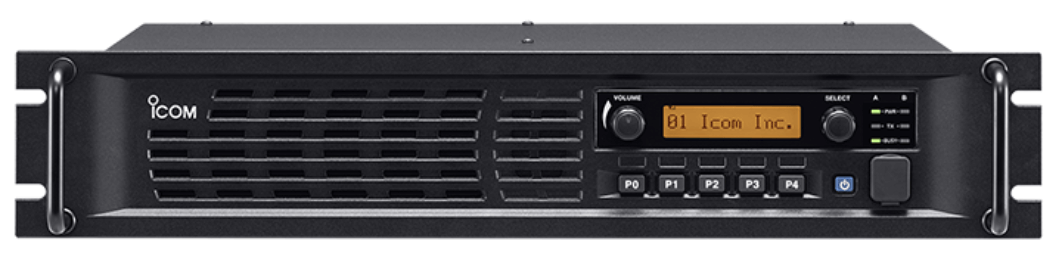

IC-FR5300/IC-FR6300 Icom Digital Repeater, IDAS NXDN version
Two Channels in One Box Repeater, Compatible with Affordable Digital Simulcast
One Platform for All Your System Configurations
The FR5300 is a second generation IDAS™ repeater that builds upon the powerful product line Add product gallery images with the affordable, low complexity digital simulcast capabilities and a new CPU/FPGA platform. Increase coverage with simulcast by adding repeaters to pair on the same networks.
In This Pack:
- IC-FR5300/IC-FR6300 Repeater Unit
- 2pcs Carry Handles and attachment hardware
- OPC-1784 Power Cable, DC
- CAB-1149 Power Cable, DC for Cooling Fan
(May differ, or not supplied, depending on version)
Completely New CPU/FPGA Platform
The IC-FR5300 series is the second generation IDAS™ Repeater, keeping system compatibility with the original IC-FR5000 series and continuing its unique package. It looks the same as the IC-FR5000, but a new CPU/FPGA platform is used.
The IC-FR5300 series provides digital simulcast system capability and ±0.1 ppm high frequency stability with a 1pps reference signal from the GNSS antenna.
System Scalability

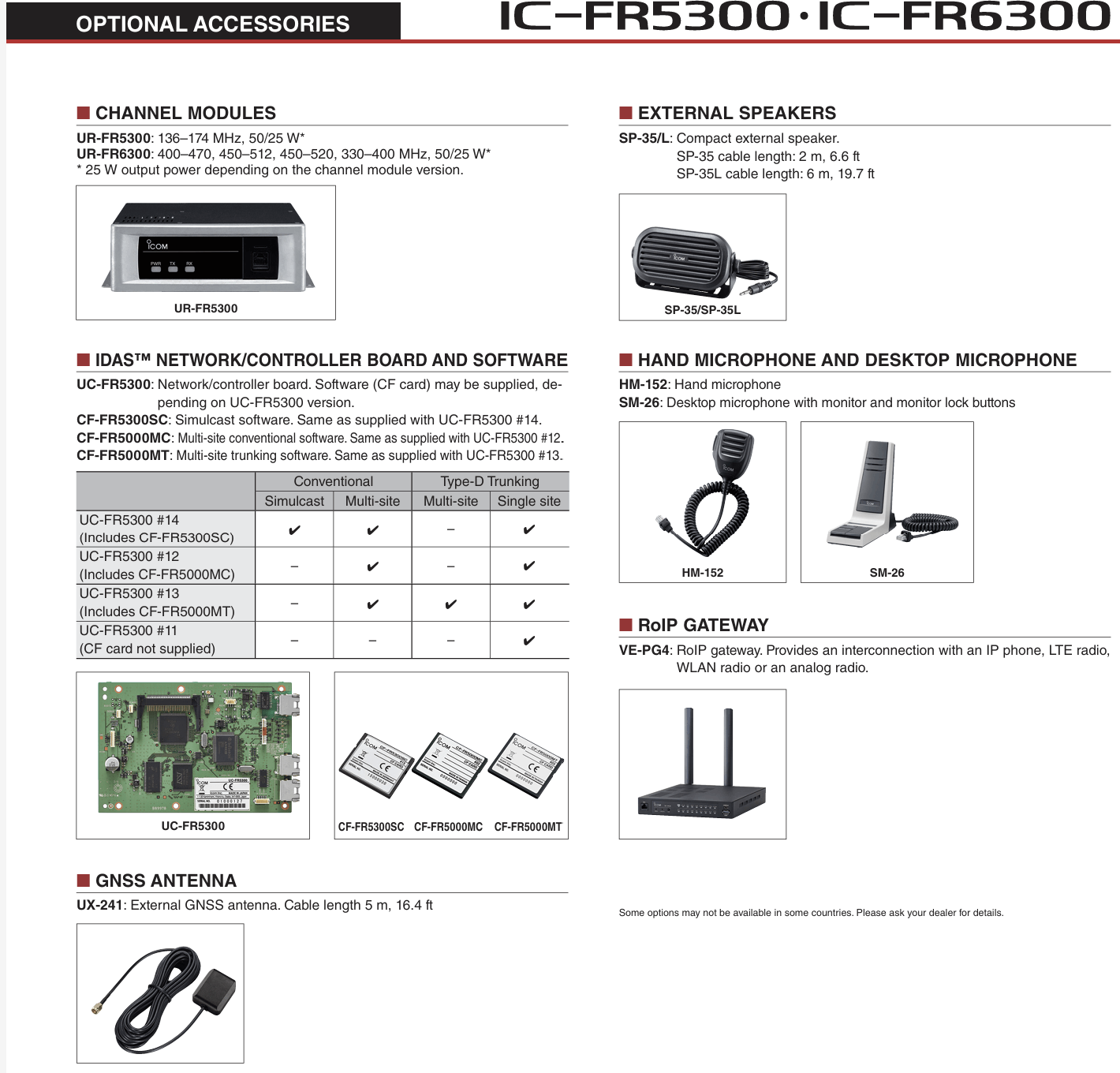

The IC-FR5300 series can be easily upgraded by installing an optional UC-FR5300 Network/controller board and software provided with a CF card. Depending on the communication density and coverage, your radio system can grow from a single site to a simulcast system or multi-site trunking* system, to match your communication needs.
* Compatible IDAS radio terminals are required for multi-site trunking.
| System | Optional Network/Controller Board |
|---|---|
| Simulcast Conventional | UC-FR5300 #14 (Supplied with a CF-FR5300SC) and UX-241 GNSS antenna |
| Multi-site Conventional | UC-FR5300 #12 (Supplied with a CF-FR5000MC) |
| Single site Trunking | UC-FR5300 #11 |
| Multi-site Trunking | UC-FR5300 #13 (Supplied with a CF-FR5000MT) |
D-SUB 25-Pin Accessory Connector
The IC-FR5300 series has a programmable D-SUB 25-pin accessory connector for connecting an external remote control devices. Also, modulation/demodulation signals can be input/output from the D-SUB connector.
50W Output at 50% Duty Cycle or 25W 100% Duty Cycle Operation*
Employing a high performance power amplifier, the IC-FR5300 series provides a reliable 100% duty cycle operation at 25W output.
When operated at the high power setting of 50W, the repeater operates with a 50% duty cycle.
* 25 W output power depending on the repeater version. Ambient temperature: 25°CAmbient temperature: 25°C
50W Output at 100% Duty Cycle or 100W 50% Duty Cycle Operation with Optional Power Amplifier*
When need higher power, the optional UR-PA5000/UR-PA6000 series power amplifier provides 100W output power with a 50% duty cycle and 50W output with 100% duty cycle.
* Ambient temperature: 25°C
Capable of Installing Two RF modules in One Chassis
The IC-FR5300 series has an internal space for installing another RF unit. Two RF modules* can be installed and operated independently. LEDs on the front panel shows the status of both channel.
* Optional UR-FR5300/UR-FR6300 required.
Digital/Analog Mixed Mode and Multiple Tone-Group Using CTCSS, DTCS Tone and RAN
The IC-FR5300 series can receive both analong and digital modes on a channel, and transmit either mode, depending on the programming.
It decodes multiple CTCSS and DTCS as well as digital RAN (Radio Access Number) codes on a per channel basis (up to 16 tones/codes) and downlinks the received signal with a specified tone/code.
32 Channel Capacity and 5 Programmable Buttons
The 12-digit alphanumeric display, 5 programmable buttons, 32 memory channels and internal speaker enable you to use the repeater as a simple base station, or to check repeater activity. The LCD shows a variety of text and code information.
IP Remote Maintenance
When the IC-FR5300 series is connected to an IP network through the optional UC-FR5300 network/controller board, PC programming and IP address setting can be made from a remote location.
The SNMP traps and Syslog can be sent to your manager for remote monitoring.
Other Features
- 19-inch rack mount 2U height low profile
- Receiver voting function improves talkback capability of radio terminals in the field
- RC-FS10 remote communicator software works as a simple dispatch station to communicate with radio terminals through the repeater
- CW ID transmitter
- PTT priority setting (Local Microphone, external PTT or repeater operation)
- 5-Tone decoder* (* For analog mode only)
- DTMF encoder/decoder
- Low voltage alert
Management Features
- SYSLOG and SNMP
- Telnet and SSH
- Ping Test and Traceroute Test
- Abnormal condition monitoring, such as LAN port link-down and SIP server registration error
- Administrator password
- SNTP server
- Security slot
IC-FR5300 VHF / IC-FR6300 UHF – General Specifications
| IC-FR5300 | IC-FR6300 | |||
|---|---|---|---|---|
| Frequency coverage (Varies according to version) |
136-174 MHz (USA, EXP, EUR, CAN, AUS) | 400-470 MHz (USA, EXP, EUR, CAN) 450-512 MHz (USA) 450-520 MHz (EXP, AUS) 330-400 MHz (EXP) |
||
| Number of channels | 32 channels / 1 zone | |||
| Channel spacing (Varies according to version) |
6.25/12.5/25 or 7.5/15/30 kHz | |||
| Type of emission | 16K0F3E*1 (25 kHz), 14K0F3E (20 kHz, EUR), 11K0F3E (12.5/15 kHz, USA), 8K50F3E (12.5 kHz), 4K00F1E/F1D (6.25/7.5 kHz) |
|||
| Power supply requirement | 13.6 V DC (USA, CAN, EXP) 13.2 V DC (EUR, AUS) |
|||
| Current drain (at 13.6V DC) |
Tx High | 15.0 A maximum (at 50 W) 8.0 A maximum (at 25 W) |
||
| Rx | Stand-by | 500 mA (FAN OFF) | ||
| Max. audio | 1900 mA | |||
| Dimensions (projections not included; W×H×D) |
IC-FR5300/IC-FR6300 | 483 × 88 × 260 mm, 19.0 × 3.5 × 10.2 in | ||
| UR-FR5300/UR-FR6300 | 176×60×194 mm, 6.9 × 2.4 × 7.6 in | |||
| Weight (approx.) | IC-FR5300/IC-FR6300 | 5.78 kg, 12.7 lb | ||
| UR-FR5300/UR-FR6300 | 2.1 kg, 4.6 lb | |||
| Operating temperature range | -30℃ to +60℃, –22 °F to +140 °F (USA, CAN, EXP) -25 ℃ to +55 ℃, –13 °F to +131 °F (EUR, AUS) |
|||
*1 25 kHz bandwidth is not available for FCC Part 90 licensees for USA versions. Ask your dealer if you need 25 kHz bandwidth.
Transmitter
| IC-FR5300 | IC-FR6300 | |
|---|---|---|
| RF output power (Hi, L2, L1) (Varies according to version) |
50 W, 25 W, 5 W (USA, EXP, CAN, AUS Versions) 25 W, 10 W, 5.8 W (EUR, EXP Versions) |
|
| Spurious emissions | 80 dB typ. (TIA-603) 0.25 μW (≤ 1 GHz), 1.00 μW (> 1 GHz) (EN301 166, EN300 086) |
|
| Frequency stability | ±1.0 ppm or less ±0.1 ppm or less (corrected using GNSS) |
|
| Audio harmonic distortion | 0.9% typ. (AF 1kHz 40% deviation)(TIA-603) 1.1% typ. (AF 1kHz 40% deviation)(EN 300 086) |
0.8% typ. (AF 1kHz 40% deviation)(TIA-603) 0.8% typ. (AF 1kHz 40% deviation)(EN 300 086) |
| FM Hum and Noise | 83 dB typ. (W) 77 dB typ. (N) |
72 dB typ. (W) 67 dB typ. (N) |
Receiver
| IC-FR5300 | IC-FR6300 | ||
|---|---|---|---|
| Sensitivity | Digital (1% BER) | –4.0 dBμV (0.32 μV) emf typ. (EN301 166) | –3.5 dBμV (0.33 μV) emf typ. (EN301 166) |
| Analog (12 dB SINAD) | –119 dBm (0.25 μV) typ. (TIA-603) | –117 dBm (0.32 μV) typ. (TIA-603) | |
| Analog (20 dB SINAD) | –4.0/–4.0/–1.0 dBμV emf typ. (W/M/N)(EN300 086) | –3.0/–3.0/0.0 dBμV emf typ. (W/M/N)(EN300 086) | |
| Adjacent channel selectivity |
Digital | 66 dB typ. (EN301 166) | 63 dB typ. (EN301 166) |
| Analog | 85/80 dB typ. (W/N)(TIA-603) 84/83/78 dB typ. (W/M/N)(EN300 086) |
80/56 dB typ. (W/N)(TIA-603) 78/78/74 dB typ. (W/M/N)(EN300 086) |
|
| Spurious response rejection |
Digital | 87 dBμV emf typ. (EN301 166) | 85 dBμV emf typ. (EN301 166) |
| Analog | 85 dB typ.(TIA-603) 81 dB typ. (EN300 086) |
84 dB typ.(TIA-603) 81 dB typ. (EN300 086) |
|
| Intermodulation rejection |
Digital | 78 dBμV emf typ. (EN301 166) | 78 dBμV emf typ. (EN301 166) |
| Analog | 81/81 dB typ. (W/N)(TIA-603) 75/74/73 dB typ. (W/M/N)(EN300 086) |
80/80 dB typ. (W/N)(TIA-603) 74/74/73 dB typ. (W/M/N)(EN300 086) |
|
| AF output power | 3.9 W typ. (at 5% distortion with a 4Ω load) | ||
Measurements made in accordance with TIA-603, EN300 086 and EN301 166.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure Storage | 500.5 | I |
| Low Pressure Operation | 500.5 | II |
| High Temperature Storage | 501.5 | I |
| High Temperature Operation | 501.5 | II |
| Low Temperature Storage | 502.5 | I |
| Low Temperature Operation | 502.5 | II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Humidity | 507.5 | II |
| Dust Blowing | 510.5 | I |
| Vibration | 514.6 | I |
| Shock Functional | 516.6 | I |
All stated specifications are subject to change without notice or obligation.
