UD100-G03-B50 Adapter Bulk Pack 50 units, Parani USB (BlueSoleil version) Bluetooth Class1 Adapter, range up to 300m Range, Optional Antennas yield up to 1,000m Range, with EDR Enhanced Data Rate(Wt.65g)

UD100-G03-50 SENA Parani UD100 USB Bluetooth Class 1 Adaptor, BlueSoleil, Bulk 50 piece pack

SKU: UD100-G03-B50

UD100-G03-B50 Bulk Pack of 50 units
Features BlueSoleil Bluetooth Sopftware.

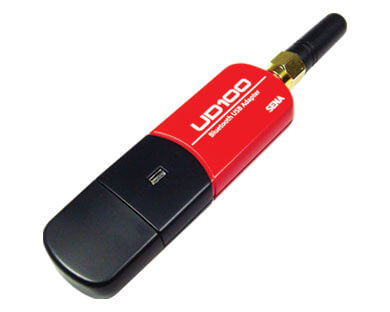

The Parani-UD100 is a class 1 type Bluetooth USB adapter that supports 300 meters of wireless transmission distance by default. The working distance can be further extended up to 1000 meters using interchangeable optional replacement antenna. Thanks to its longer communication distance than other regular Bluetooth USB adapters, it is suitable for industrial or special applications. Parai-UD100 is compatible with other SENA Bluetooth devices perfectly.

$2,997.50 Inc. GST

File-1367996521-1.pdf

The Parani-UD100 is a class 1 type Bluetooth USB adapter that supports 300 meters of wireless transmission distance by default. The working distance can be further extended up to 1000 meters using optional replacement antenna. Thanks to its longer communication distance than other regular Bluetooth USB adapters, it is suitable for industrial or special applications. Parai-UD100 is compatible with other SENA Bluetooth devices perfectly.

SENA offers Industrial Bluetooth product line that includes Bluetooth Serial Adapters, Bluetooth Serial Modules, Bluetooth Access Points, and Bluetooth USB adapter. Bluetooth Serial products incorporate advanced features such as Bluetooth 1.2/2.0 Protocol Stack that includes Adaptive Frequency-hopping spread spectrum (AFH), software-free configuration support, Pairing feature, and flexible power options.
<li> Bluetooth Access Points connect up to 28 Bluetooth devices to the 10/100 Base-T Ethernet network. SENA’s Bluetooth USB Adapter is suitable for industrial or special applications thanks to its longer communication distance than other regular Bluetooth USB adapters
APPLICATIONS/SUPPORTS
# Any device that accepts standard USB
# Parani-SAT-G01R 1.0dBi Stub Antenna
# Parani-DAT-G01R 3.0dBi Dipole Antenna
# Parani-DAT5-G01R 5.0dBi Dipole Antenna
# Parani-PAT-G01R 9.0dBi Patch Antenna
# Parani-SEC-G01R 15cm antenna extension cable

See Reference Table Below…………..

Brand

Sena

WHAT’S IN THE BOX ? – UD100-G03-B50
# 50x Parani-UD100 BlueSoleil Software Version, with protective cap
# 50x Stub antenna(SAT-G01R)
# 50x Quick Start Guide
# 50x CD-ROM including Windows Bluetooth driver
# 50x User Guide and Data sheet (hard copy)
# Shipping weight is 3.2kg

Parani-UD100

Standards

Bluetooth 2.0+EDR Class 1
USB 2.0

Max Transfer Rate

3 Mbps (EDR)

Frequency Range

2.402 ~ 2.480GHz

Transmit Output Power

+19dBm (+6dBm EDR) E.I.R.P

Receive Sensitivity

Basic 1Mbps: -88 dBm
EDR 2Mbps: -87dBm
EDR 3Mbps: -82dBm

Antenna Connector

RP-SMA

Antenna Gain

Default Stub Antenna: 1 dBi
Optional Dipole Antennas: 3 dBi & 5 dBi
Optional Patch Antenna: 9 dBi

Working Distance
(In Open Field)

Stub antenna – Stub antenna: 300 m
Dipole (3 dBi) – Dipole (3 dBi) : 400 m
Dipole (5 dBi) – Dipole (5 dBi): 600 m
Patch antenna – Patch antenna: 1 km

* working distance can vary depending on install environment

Bluetooth stack software

Toshiba/BlueSoleil

Bluetooth Profiles

DUN, FAX, SPP, HID, FTP, OPP, A2DP, AVRCP, HSP, HFP, PAN, BPP

Computer OS Support

Windows XP/Vista/7 (32/64bit)
Linux (3rd party driver required)
MAC OS X (MAC OS X driver required)

Size

72(L) x 22(W) x 10(H) mm

Operating Temperature

-20 ~ +70℃

Storage Temperature

-40 ~ +85℃

Humidity

90% Non-condensing

Regulatory Approvals

FCC, CE, TELEC, KCC, IC, Bluetooth SIG

Warranty

1 year Limited Warranty
