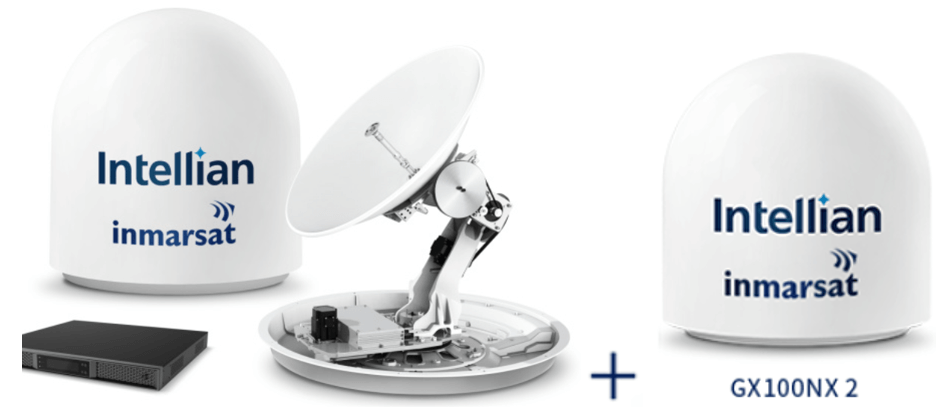

V5-11G-DSX3N Intellian GX100NX 2 VSAT GX Terminal, 4.5W Ka-band XCVR, Dual Antenna System(Maritime)
$188,367.30 Inc. GST
Intellian GX100NX 2 is a 2.5GHz Ka- Wideband ready Global Xpress terminal with a 105 cm diameter reflector. The GX100NX 2 is designed with a lighter-weight antenna enabling easy installation.
RF performance of the GX100NX 2 is class leading, ensuring the best possible throughput and performance.
The GX100NX 2 has a transceiver system and GX100NX features a BUC.
The GX100NX 2 HP incorporates an upgraded 9W high-powered transceiver.
The All-In-One GX BDT integrates the GX Modem and GX Mediator, making it simple and easy to install in an FX rack.
The GX100NX 2’s new operation platform provides the efficiency of configuration and activation with its smart operational software AptusNX.
Compact dual-band, dual-pol solution
- Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
– electronically seamless switch between services to maximize bandwidth and network access
– Uninterrupted by bad weather using Ku-band - Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
- Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.
Future proof: multi-orbit tracking
- Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites
- Dual antenna installation support for NGSO make-before-break HOs
- Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
- GEO & MEO tracking system (program tracking and conical scanning)
Brand
Intellian
V5-11G-DSX3N GX100NX 2 Intellian VSAT GX Terminal, 4.5W Ka-band XCVR, Dual Antenna System (Maritime) Including:
- GX-1080, NJRC 4.5W Ka-Band XCVR
- Inmarsat Type Approved
- NOTE: BDU(Below Deck Terminal) is NOT included
