V5-11K-U2X4N Intellian V100NX-Ka-XCVR, VSAT, Ka-band 9W UPGRADE, 1m Antenna, (Maritime)
All New 1M Ku- Ka- Dual Band GEO/MEO/LEO VSAT Terminal
Intellian v100NX is a Future proof Ku- to Ka-band convertible maritime VSAT antenna system supporting future 2.5Ghz Ka- Wideband networks with a tuned radome and reflector. The 100NX’s new operation platform enables GEO/MEO/LEO satellite tracking ensuring the antenna is ready for all future networks.
Future Proof Design
- Ku-band high power upgradeable
- Ka-band convertible
- GX service upgradeable
- NGSO tracking performance
Future Proof GEO/MEO/LEO
The v100NX is designed with accurate satellite tracking performance with our proven tracking algorithm that covers GEO, MEO, and LEO constellations.
Quick and Easy Ku- to Ka-band Conversion
The v100NX can be easily converted from Ku- to Ka-band operation by changing the center-mounted RF assembly.
Higher RF Performance
The v100NX is easily upgradeable to a high power BUC or tranciver system enabling higher throughput.
AptusNX
New integrated management and control software AptusNX provides a responsive web user interface, intelligent antenna diagnosis and reporting for efficient and preventative maintenance.
$75,900.00 Inc. GST
Compact dual-band, dual-pol solution
- Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
– electronically seamless switch between services to maximize bandwidth and network access
– Uninterrupted by bad weather using Ku-band - Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
- Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.
Future proof: multi-orbit tracking
- Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites

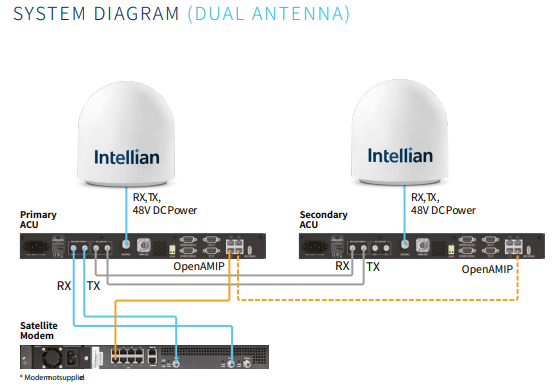

- Dual antenna installation support for NGSO make-before-break HOs
- Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
- GEO & MEO tracking system (program tracking and conical scanning)
Brand
Intellian
V5-11K-U2X4N v100NX Ka XCVR (9W) 1m All New Ka Band Upgrade Maritime VSAT Antenna, Including : –
- V5-1134 NJRC 9.5W Ka-Band XCVR –
- VP-T84G2 19” Rack Mountable ACU –
- X & Co-pol System
