V5-15K-U2 Intellian V150NX-Ka VSAT, Ku – Ka-band convertible, 1.5m, Universal Ka-band LNB, w/o BUC, (Maritime)

NOTE: BUC is NOT supplied, and must be purchased separately.

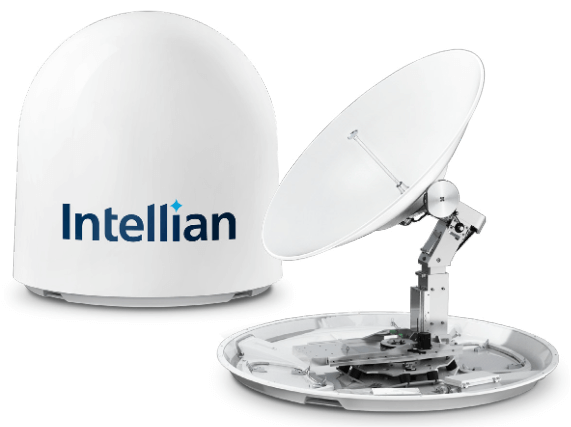

The World’s First & Only 1.5M Ku- – Ka-band Convertible VSAT Antenna: The v150NX Ka is the world’s first and only Ku-Ka-band convertible GEO/MEO/LEO-ready VSAT antenna system.

This dual-band antenna can operate on Ku- and Ka- bands simply by switching the RF module, available as a conversion kit.

The high performance radome is optimized for operation in both Ku- and Ka-band, supporting current and future satellite constellations.

FEATURES:

Future Proof for GEO/MEO/LEO Satellite Tracking: Cooperating with satellite operators, MEO/LEO satellite tracking has already been proven with systems operating commercially.

High Power BUC Option: Supports up to a 200W Ku-band BUC or a 100W wideband Ka- BUC without the need for extra weight balancing and additional conversion components

Fiber Optic Connection: Regardless of cable run length, provides minimal signal loss and higher throughput performance.

Air-conditioner Base Frame as an Available Option: Cooling or Heating or both functions combined. Cooling recommended on higher BUC power options to maintain optimum system health.

GEO/MEO/LEO Tracking:

• Hardware designed for to be compatible with GEO/MEO/LEO satellite tracking
• Fast and accurate tracking performance
• Mediator embedded in ACU for satellite handover in a MEO or LEO network

The Highest Throughput:

• High performance with a universal pedestal design
• Supports up to 200W (Ku-band) and 100W (Ka-band) BUCs
• Expected throughputs can be 600+Mbps for Downlink & 300+Mbps for uplink
