V5-60G-DSX4N Intellian GX60NX2-HP VSAT GX Terminal, 9W Ka-band XCVR, Dual Antenna System,(Maritime)

SKU: V5-60G-DSX4N

$154,312.40 Inc. GST

Intellian GX60NX 2 is a 2.5GHz Ka- Wideband ready Global Xpress terminal with a 65cm diameter reflector.

The GX60NX 2 is designed with a compact lightweight antenna enabling easy and convenient installation.

The GX60NX 2 has a transceiver system and GX60NX features a BUC.

The GX60NX 2 HP incorporates an upgraded 9W high-powered transceiver.

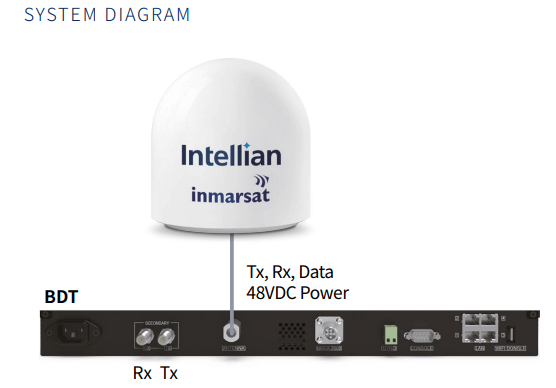

The All-In-One GX BDT integrates the GX Modem and GX Mediator, making it simple and easy to install in an FX rack.

The GX60NX 2’s new operation platform ensures quick configuration and activation with its smart operational software AptusNX.

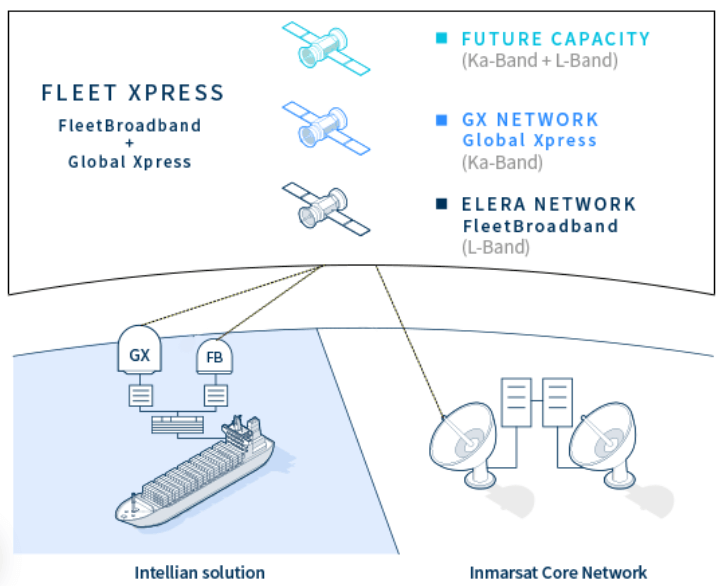

Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
– electronically seamless switch between services to maximize bandwidth and network access
– Uninterrupted by bad weather using Ku-band
Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.

Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites

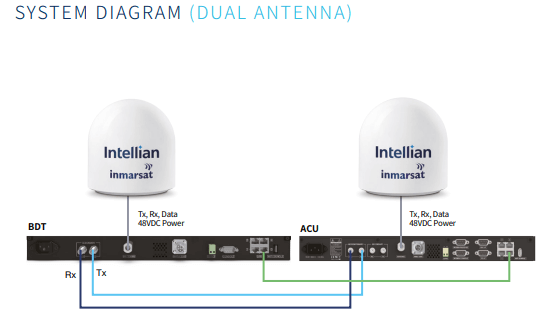

Dual antenna installation support for NGSO make-before-break HOs
Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
GEO & MEO tracking system (program tracking and conical scanning)

Brand

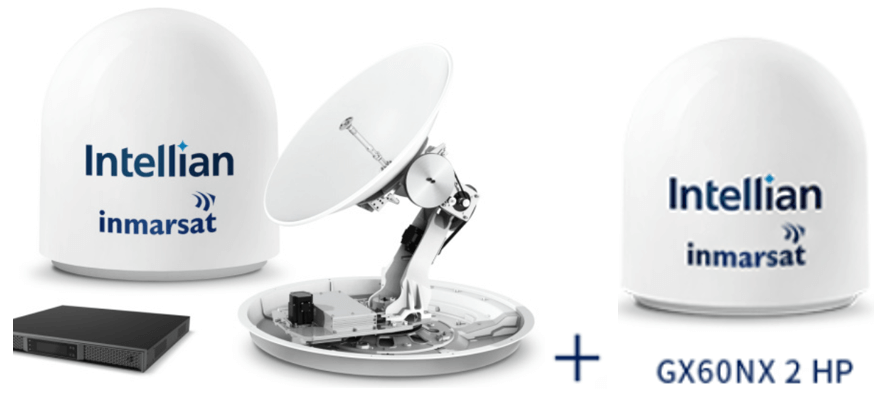

V5-60G-DSX4N GX60NX 2 HP (Dual Solution System)Compact and light-weight GX terminal Including:
