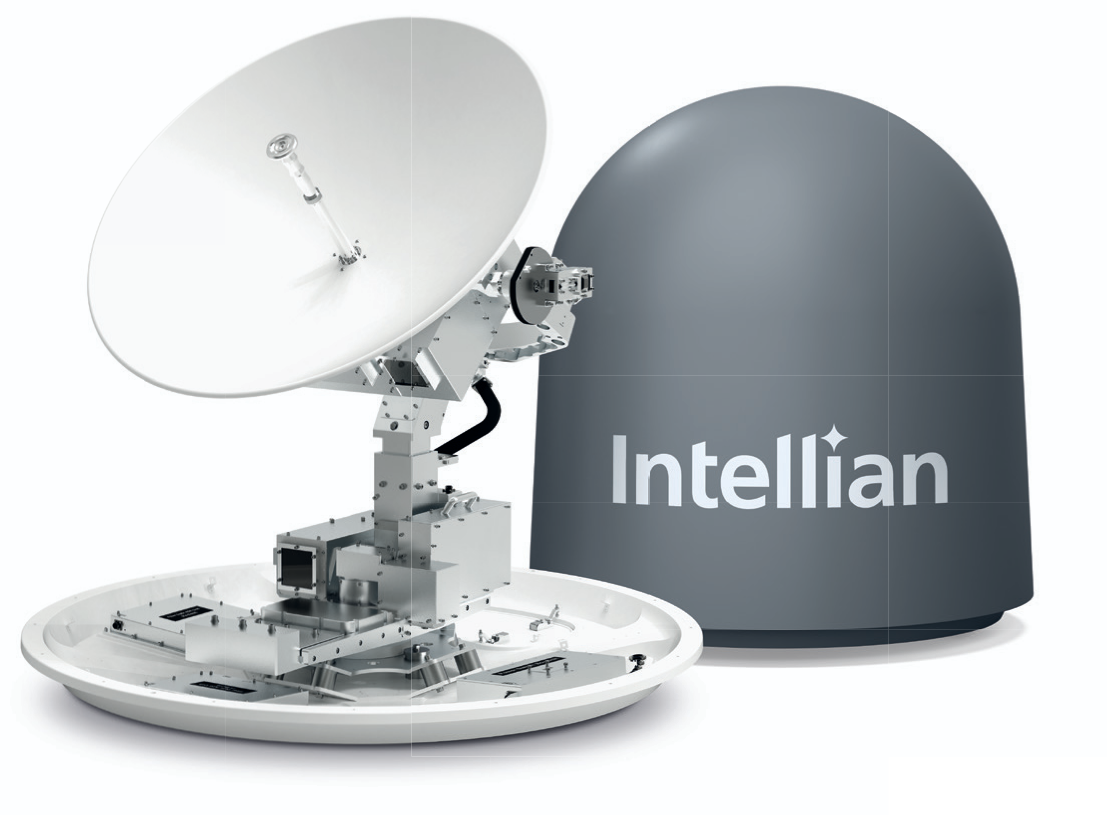

VB1-1010 Intellian ARC-M4 Block1 VSAT, Multi-orbit, X/Ka-band Wideband, WGS AN/USC-75, 1.3m, 100W, MIL (Maritime)

VB1-1010 Intellian ARC-M4 Block1 VSAT, X/Ka-band Wideband, WGS AN/USC-75, 1.3m, 100W, MIL (Maritime)

VB1-1010 // WGS: AN/USC-75, Simultaneous X/KA-BAND Wideband VSAT System

DESIGNED FOR RESILIENCY
Agile Resilient Communications (ARC) delivering Multi-role, Multi-mission, Multi-band, and Multi-orbit solutions to the Warfighter.

Simply stated, the ARC-M4 Block 1 delivers resiliency through options: options across service providers, options across frequency bands, and options across satellite orbit ‒ all in a single terminal.

ARC-M4 Block represents a “Swiss army knife” of capabilities that can be relied upon should a network service, frequency band, or satellite orbit be compromised; additionally, Block 1 enables obscuration tactics that can be employed to re-route data across various
communication paths.

TYPE APPROVALS
ARC-M4 Block 1 is currently approved for use on WGS, Inmarsat I5 (Cat IV) and Ob3 mPOWER. Intellian is also currently pursing additional type approvals across LEO, MEO, GEO, and HEO orbits.

LEO/MEO/GEO/ HEO TRACKING CAPABILITY
The mechanical design and center feed design enables tracking capabilities across all satellite orbital patterns.

OPEN AND MODULAR FOR LARGESCALE OPERATIONS

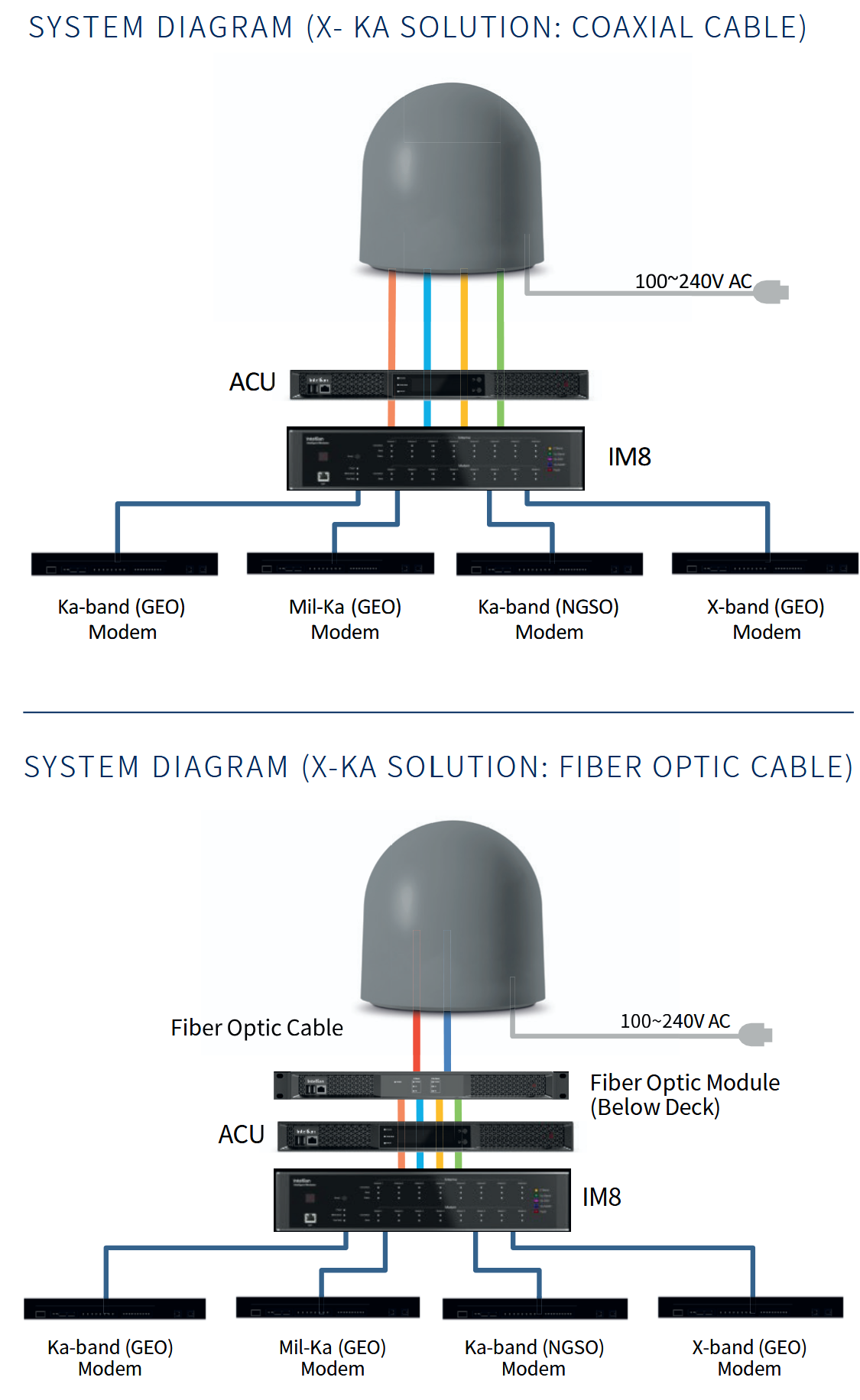

This system supports single-, dual-, triple- or even up to eight terminal installations. Additionally, the Shipboard blockage zones, sea state conditions or other conditions are dealt with automatically through Intellian Intelligent Mediator IM8-T2. Leveraging open standards, such as OpenAMIP and OpenBMIP, the IM8-T2 can accommodate up to 8 modems and up to 8 antennas with the ability to bridge connections and data routes.

The terminal can be flexibly installed utilizing coaxial cable or fiber optic cable (between the below deck and above deck

PURPOSE BUILT FOR THE WARFIGHTER equipment).
MIL-STD-188-164C Compliant RF, No Caveats
MIL-STD-810H
MIL-STD-901D Grade B
MIL-STD-461G
MIL-STD-363D

ELECTRONIC FREQUENCY BAND SWITCHING
ARC-M4 Block 1 enables full electronic switching across commercial Ka-band, military Ka-band, and X-band services.
The changes occur electronically and eliminate the need for manual manipulation of terminal hardware.

Block 1 supports simultaneous operation in both X and Ka-band when interoperating with Wideband Global SATCOM (WGS) services.

This capability greatly enhances resiliency and throughput.
