VM2-24C-P Intellian V240M2 VSAT, C and Ku-band, Multi-Orbit, 2.4m, PLL, LNB, w/o BUC, (Maritime)

SKU: VM2-24C-P

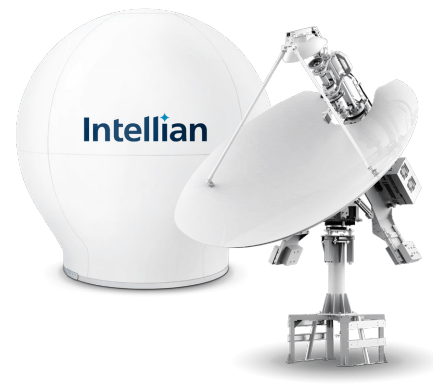

2.4m Dual-band Multi-orbit VSAT Antenna System

The v240M 2 is the world’s first and only Dual-band and  Multi-orbit  antenna system that enables communication services on two different frequency bands with the capability to track Geostationary Earth Orbit (GEO) or Medium Earth Orbit (MEO) satellites.



$197,835.00 Inc. GST

v240M-2-Datasheet.pdf

Automatic Frequency Band Switching

It allows automatic switching between C- and Ku-band without user intervention and enables the operator to select the optimum solution for the geographic location.

Best In-Class RF Performance

The upgraded design assures consistent RF performance on C- and Ku-bands to enable high -speed, high-quality connectivity for high-bandwidth demanding users.

Future Proof Design

Ka-band upgrade kit will allow the addition of Ka-band communication including future NGSO networks and MEO operation can be enabled using the Intelligent Mediator.

High Power BUC Support

Various BUC options can be selected up to 400W in both C- and Ku-bands to allow user customization.

Compact dual-band, dual-pol solution

  • Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
    – electronically seamless switch between services to maximize bandwidth and network access
    – Uninterrupted by bad weather using Ku-band
  • Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
  • Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.

Future proof: multi-orbit tracking

  • Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites

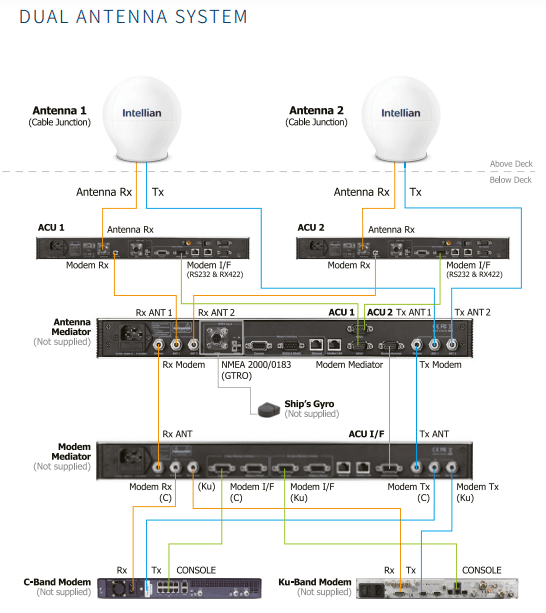

  • Dual antenna installation support for NGSO make-before-break HOs
  • Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
  • GEO & MEO tracking system (program tracking and conical scanning)

Brand

Intellian

VM2-24C-P Intellian v240M 2 Dual-band Multi-orbit Ka-band upgradable Antenna System w/ 154″ C/Ku-band dome, excluding BUC 2.4m Maritime Ka-band Upgradable Multiband (C & Ku) VSAT Antenna System, Including: –

  • V1-1205_A, 2xGlobal Ku-band PLL LNB (Programmable LO, 9.75~11.3GHz) –
  • VC1-1102, Intellian C-band PLL LNB –
  • VP-T537, 19” Rack Mountable ACU,
  • Spectrum Analyzer & Wi-Fi Embedded –
  • NOTE: BUC is required to purchase separately.
