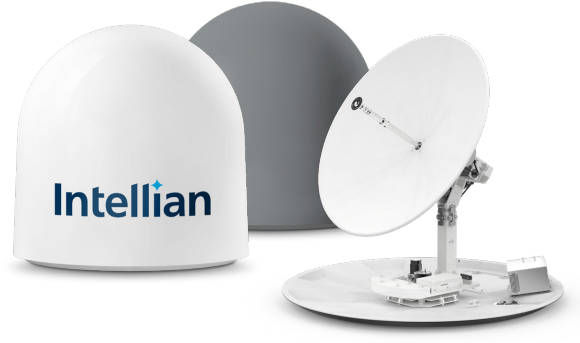

VX1-12A-1 Intellian X130D VSAT, Multi-orbit, Ku and Ka-Dual Band Auto-Switching, MIL, 1.25m,w/o BUC, (Maritime)

VX1-12A-1 Intellian X130D VSAT, Ku and Ka-Dual Band Auto-Switching, 1.25m,w/o BUC, (Maritime)

Note: BUC is NOT included and must be purchased separately

The world’s first and only 1.2 m class Ku/Ka electronically switchable, multi-orbit VSAT terminal designed for Military application

The Intellian X130D PM electronically switches between Ku-band and Ka-band operation, dual-pol, allowing the choice of many services, and providing reliable connectivity even in the harshest sea environments.

Ku/Ka Electronically Switchable Dual-band Multi-Orbit VSAT

The Intellian X130D is a dual-band VSAT solution that electronically switches between Ku-band and Ka-band operation with a single command.

It enables customers with the highest performance, versatility, and high bandwidth demand access to a wide range of service options.

This dual band antenna offers seamless connectivity by eliminating the need for conversion kits, or hardware modifications required by conventional terminals.

Compact dual-band, dual-pol solution

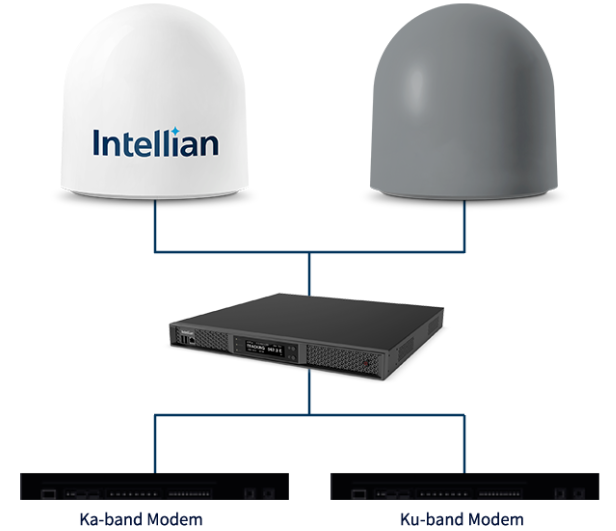

• Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
  – electronically seamless switch between services to maximize bandwidth and network access
  – Uninterrupted by bad weather using Ku-band
• Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
• Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.

Future proof: multi-orbit tracking

• Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites

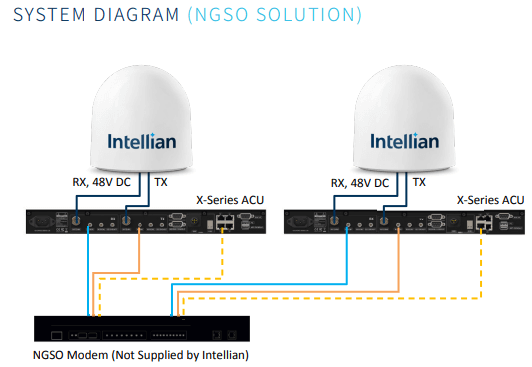

• Dual antenna installation support for NGSO make-before-break HOs
• Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
• GEO & MEO tracking system (program tracking and conical scanning)
