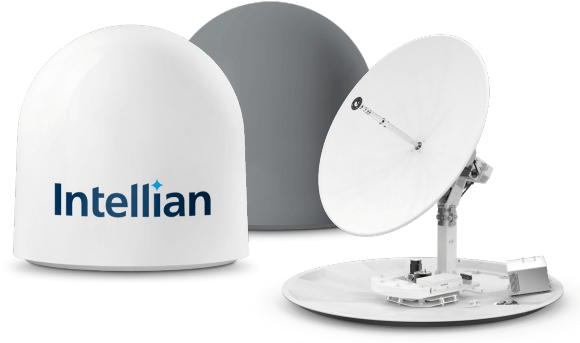

VX1-12B-1 Intellian X130D-PM VSAT System, Multi-orbit, Ku and Ka-Dual Band, MIL, w/o BUC
Note: BUC is NOT included and must be purchased separately
The world’s first and only 1.2 m class Ku/Ka electronically switchable, multi-orbit VSAT terminal designed for Military application
The Intellian X130D PM electronically switches between Ku-band and Ka-band operation, dual-pol, allowing the choice of many services, and providing reliable connectivity even in the harshest sea environments.
Military grade terminal: The X130D PM is specially designed for use in military applications and complies with required specifications, including FCC, ETSI, MIL-STD-810H and MIL-STD-461G. The terminal is able to operate and survive in the harshest sea environment, providing reliable communications during military operations.
GEO/MEO/LEO tracking capability: The X130D PM can operate in all the GEO Ku/Ka services supporting full commercial 2.5 GHz wide Ka-band coverage, also future proof, providing optimal performance on not only GSO but also on both existing and new NGSO constellations. The X130D PM is designed to be ready for all GEO, MEO, and LEO constellations.
High power upgradable: The X130D PM provides a wide range of options in terms of BUC power. The Ku-band supporting up to 40W BUC, and Ka-band 20W XCVR. The high power option enables much higher throughput allowing global high bandwidth capability.
Our MIL Specialists are here to help
Need Military specialized satellite communications products?
Our knowledgeable team can help you find the best connectivity solution for your application.
$329,835.00 Inc. GST
Compact dual-band, dual-pol solution

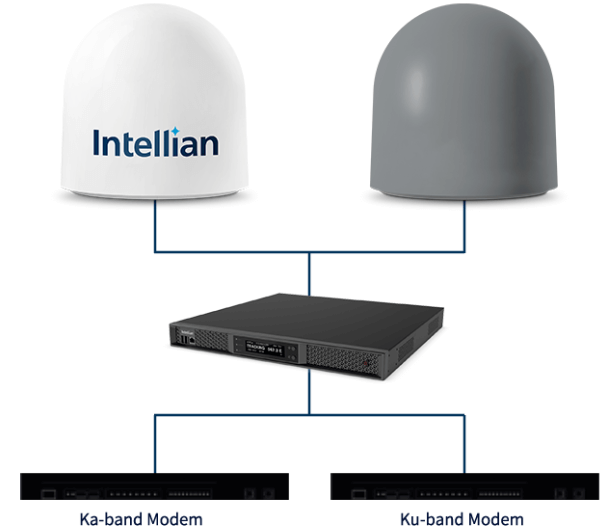

- Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
– electronically seamless switch between services to maximize bandwidth and network access
– Uninterrupted by bad weather using Ku-band - Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
- Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.
Future proof: multi-orbit tracking
- Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites

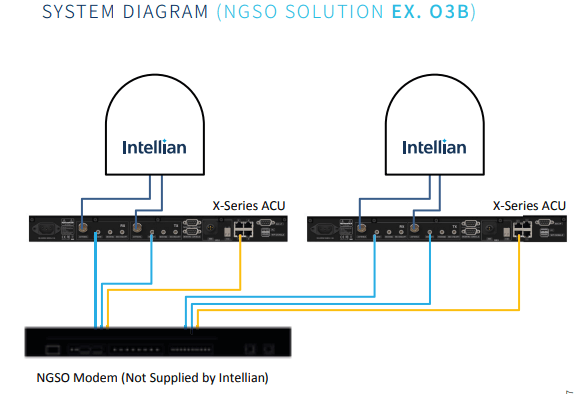

- Dual antenna installation support for NGSO make-before-break HOs
- Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
- GEO & MEO tracking system (program tracking and conical scanning)
Brand
Intellian
VX1-12B-1 X130D PM, NJRC w/o BUC 1.25m, Dual-band (Ku & Ka) Military Grade with supporting MEO constellation, Including:
- V5-4007_A,
- 2xGlobal Ku-band PLL LNBs (Programmable LO, 9.75~11.3GHz) –
- V1-2212, NJRC 8W Extended BUC (NJT8318UNMR) –
- V5-5502, Intellian 20W Ka-band XCVR –

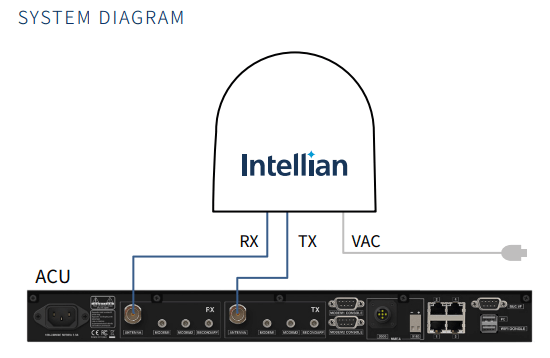

- VP-T86X1, 19” Rack Mountable ACU for X-Series, 48VDC BUC Power Supply, Spectrum Analyzer, Antenna Mediator Function Integrated –
- Ku & Ka band electronically switchable –
- X & Co-pol System
