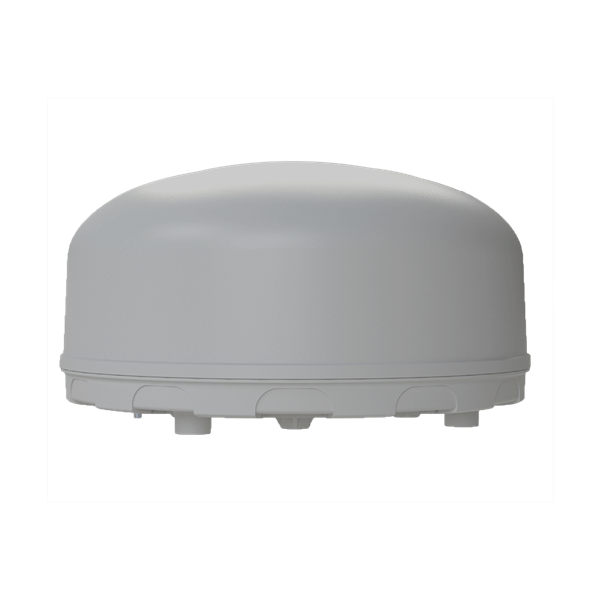

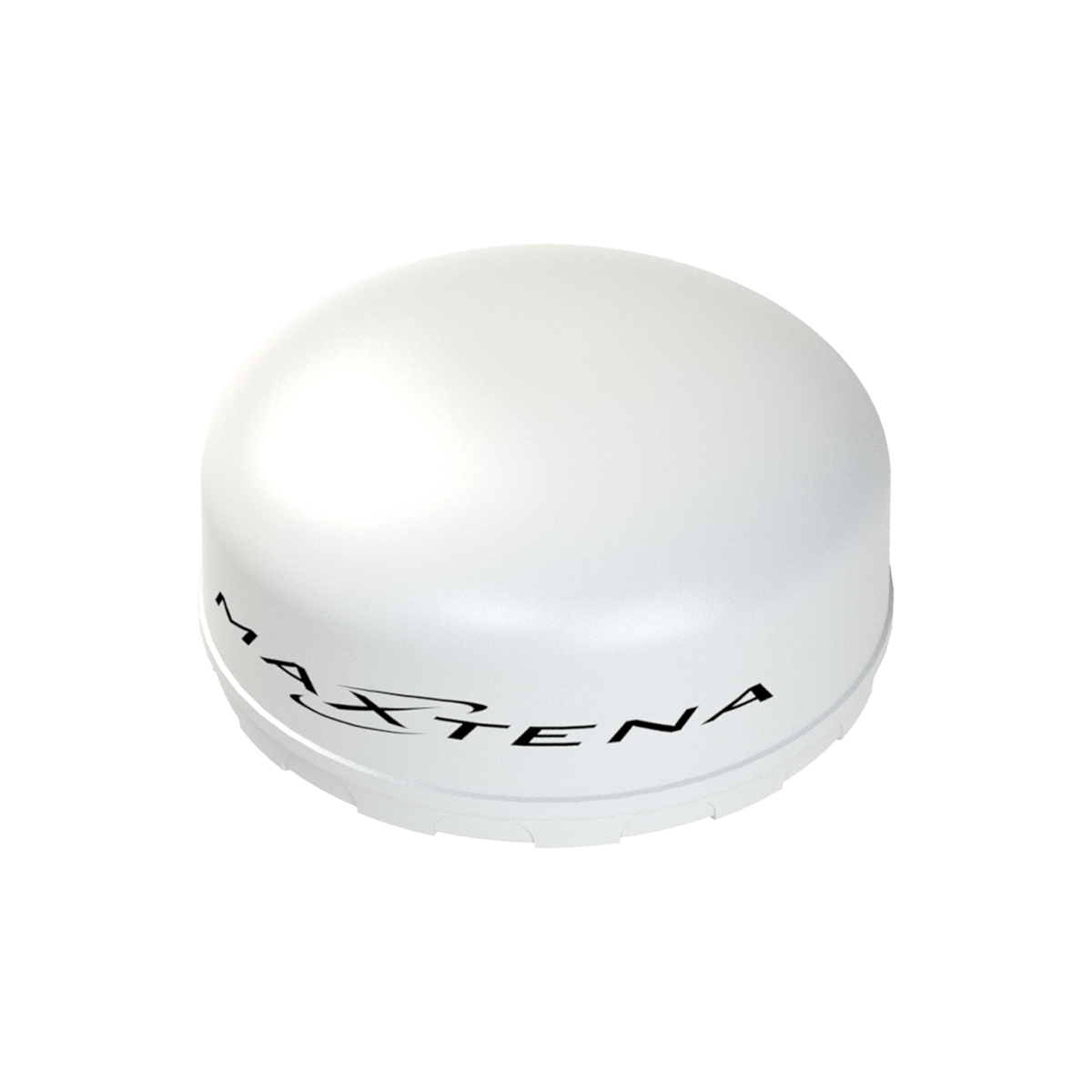

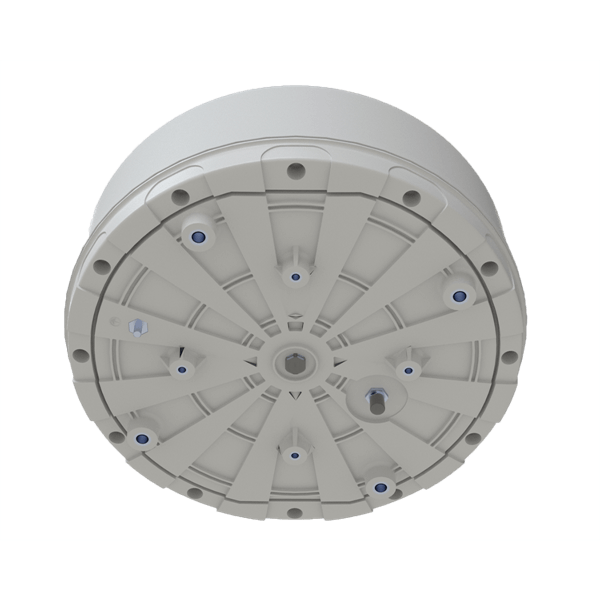

100-00077-01 Maxtena Iridium X12 DAT Antenna, Maritime BAA, White
X12 has the smallest size and weight compared to any L-band solution with similar data throughput based on Maxtena’s Dynamic Aperture Technology (DAT) with total height of only 7.8 inches.
It can achieve highest speeds compared to any L-band terminal: 700 kbps downlink and 352 kbps uplink.
X12 provides pole to pole coverage over Iridium network. It has on-board microprocessors and FPGA and tightly integrated digital and RF functionalities.
Advanced software with artificial intelligence is used to track multiple LEO satellites without GPS assistance.
X12 is 12-element active electronically scanned phased array (beamformer) with Native RF Cybersecurity.
Fully integrates with Iridium 9810 based modem using a single coaxial interface.
Features:
- Fully integrates with Iridium 9810 based modem using a single coaxial interface
- Internal GNSS receiver
- Supports 50 m cable from terminal to antenna
- IP67
- TNC connector
- Mechanical shock and vibration compliant with IEC 60945 section 8.7.1 / 8.7.2 and MIL-STD-810G method 516.6.
- Active Electronically Scanned Phased Array (AESA)
- Artificial Intelligence
- RF Cybersecurity Software Module
- Excellent Axial Ratio and Low Elevation Coverage
Application
- Robotics
- GNSS
- Automotive
- IOT
- Autonomous Applications
Iridium Certus BCX9810 Information

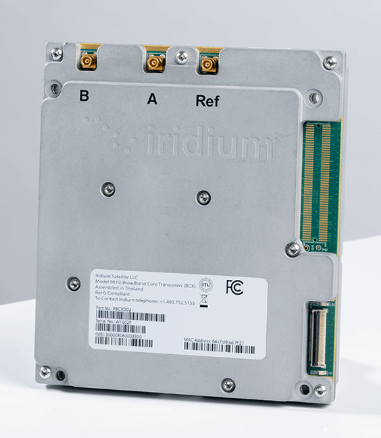

The Iridium CertusTM BCX (Broadband Core Transceiver) is the core digital and radio frequency (RF) module of the
Iridium Certus® satellite communications service for a variety of service speed classes.
Integrated with Broadband Application Electronics (BAE), antenna (BAA), and appropriate amplifiers, the BCX provides multiple data speed rates, three simultaneous high-quality voice calls, and much more.
Uniquely designed to support Iridium Certus L-Band services and backed by unmatched network quality, this transceiver delivers cost-effective satellite voice and data communications for single or multi-channel communication platforms for maritime, land mobile, and aviation markets.
© Copyright 2019 Iridium Satellite LLC. Iridium, the Iridium logo, and Iridium Certus are registered trademarks of Iridium Satellite LLC and its affiliates. All other registered marks, trademarks, service marks and logos are property of their respective holders. Information is subject to change without notice. 06/19
BENEFITS
Highly Mobile – The Iridium® satellite network is built for mobility – providing communications and connectivity
on the move, anywhere on the planet allowing vehicles and personnel to remain in contact while operating in
remote areas without having to stop and set up network access.
Multi-Service Connectivity – Through a multi-service communication and connectivity service platform,
Iridium Certus will offer high-quality voice, IP Data and Streaming Data.
Best Value – Iridium Certus offers visibility and predictability of data usage, as well as seamless broadband
connectivity that can be configured to automatically switch between the Iridium network and local infrastructure.
Reliable Coverage – Iridium Certus is enabled by a network of 66 Low-Earth Orbit mobile satellites that
provide service anywhere on the planet in all weather conditions without compromise.
Low Latency – The Iridium satellites in Low-Earth Orbit (800 km), enable signals travel in 1/40 the time compared
to geostationary satellites (36,000 km), resulting in low-latency, high-speed, always-on connections.
Optimal Signal Delivery – Low frequency L-Band signals can penetrate clouds, fog and rain.
FEATURES
Background IP Data
- Iridium Certus® 100 (up to 88 Kbps)
- Iridium Certus® 200 (up to 176 Kbps)
- Iridium Certus® 350 (up to 352 Kbps)
- Iridium Certus® 700 (up to 704 Kbps)
Streaming IP Data Capable
High Quality Voice
Messaging
Safety Services
