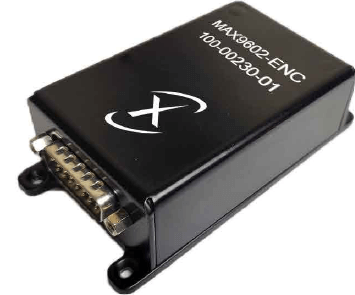

100-00230-01 Maxtena MAX9602-ENC Iridium 9602N Modem,LBT, GPS
The MAX9602-ENC from Maxtena is a fully packaged solution consisting of the 9602N transceiver from Iridium® with an RS232 interface SMA type RF connectors are provided for both Iridium SBD and for use of the GPS pass through port of the 9602N. The small form factor along with convenient screw mounting options allows easy integration ofthe9602N transceiver into a wide range of end user applications, including remote area communications, asset tracking and industrial control sand monitoring. Power and communication signals are brought out to a single DB15 male connector allow in greasy cable harness assembly. LED indicators provide visual feedback on the power and network status of the device. The MAX9602-ENC can be used in harsh automotive environments thanks to the in-built transient voltage protection. Designed as standalone product to add Iridium (and bring through GPS signals if desired) to you existing product lines, the MAX9602-ENC allows for easy |addition of Iridium Satellite communications in to third party products.
Features:
Full RS232 interface to Iridium® 9602G transceiver
Wide supply voltage range (4.5–32VDC)
Transient voltage protection
Screw mountable aluminum enclosure
Small solution size (3.9Lx2W x1.2Hinch)
LED indication of power and network status
Iridium and GPS pass through SMARF connectors
User selectable ON/OFF controls (Internalor External)
User selectable relay driven or TTL option in external control configuration
Easy integration into OEM products with a convenient DB15 interface
Application
- Fleet Management
- Remote Data Telemetry
- Personal & Asset Tracking
- Personal Communications (E-mail)
- Industrial Monitoring and Control
