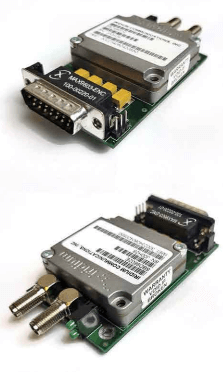

108-00087-02 Maxtena MAX9602-PCB Iridium 9602N Modem, LBT, GPS, Board
The MAX9602-PCB from Maxtena is a fully packaged solution consisting of the 9602N transceiver from Iridium® with a RS232 interface SMA type RF connectors are provided for both Iridium SBD and for use of the GPS pass through port of the 9602N.
The MAX9602-PCB allows easy integration of the 9602N transceiver into existing enclosures in a wide range of end user applications, including remote area communications, asset tracking and industrial controls and monitoring.
Power and communication signals are brought out to a single DB15 male connector allowing easy cable harness assembly.
LED indicators provide visual feedback on the power and network status of the device.
The MAX9602-PCB can be used in harsh automotive environments thanks to the in-built transient voltage protection.
The small form factor and simple connectors allow for easy addition of Iridium Satellite communications into existing third party products.
Features:
Full RS232 interface to Iridium® 9602G transceiver
Wide supply voltage range(4.5–32VDC)
Transient voltage protection
Small solution size(3.5Lx1.8W x1.6H inch)
LED indication of power and net work status
Iridium and GPS pass through SMARF connectors
User selectable ON/OFF controls
User selectable relay driven or TTL option in external control configuration
Easy integration into OEM products with a convenient DB15 interface
Application
- Fleet Management
- Remote Data Telemetry
- Personal & Asset Tracking
- Personal Communications (E-mail)
- Industrial Monitoring and Control
