1100855-503 Thales VesseLINK 200 Pole Mount, L-Bracket, Premium

SKU: 1100855-503

$493.90 Inc. GST

VesseLINK200-700-350_Installation-Guide_2021.pdf MissionLINK-700-200-Install-Guide-Rev-H-1.pdf 2024-User-Guide_VesseLINK-200-and-700.pdf 2024-05-03_84468-MissionLINK-User-Manual-Rev-L-JUNE-2022-1.pdf

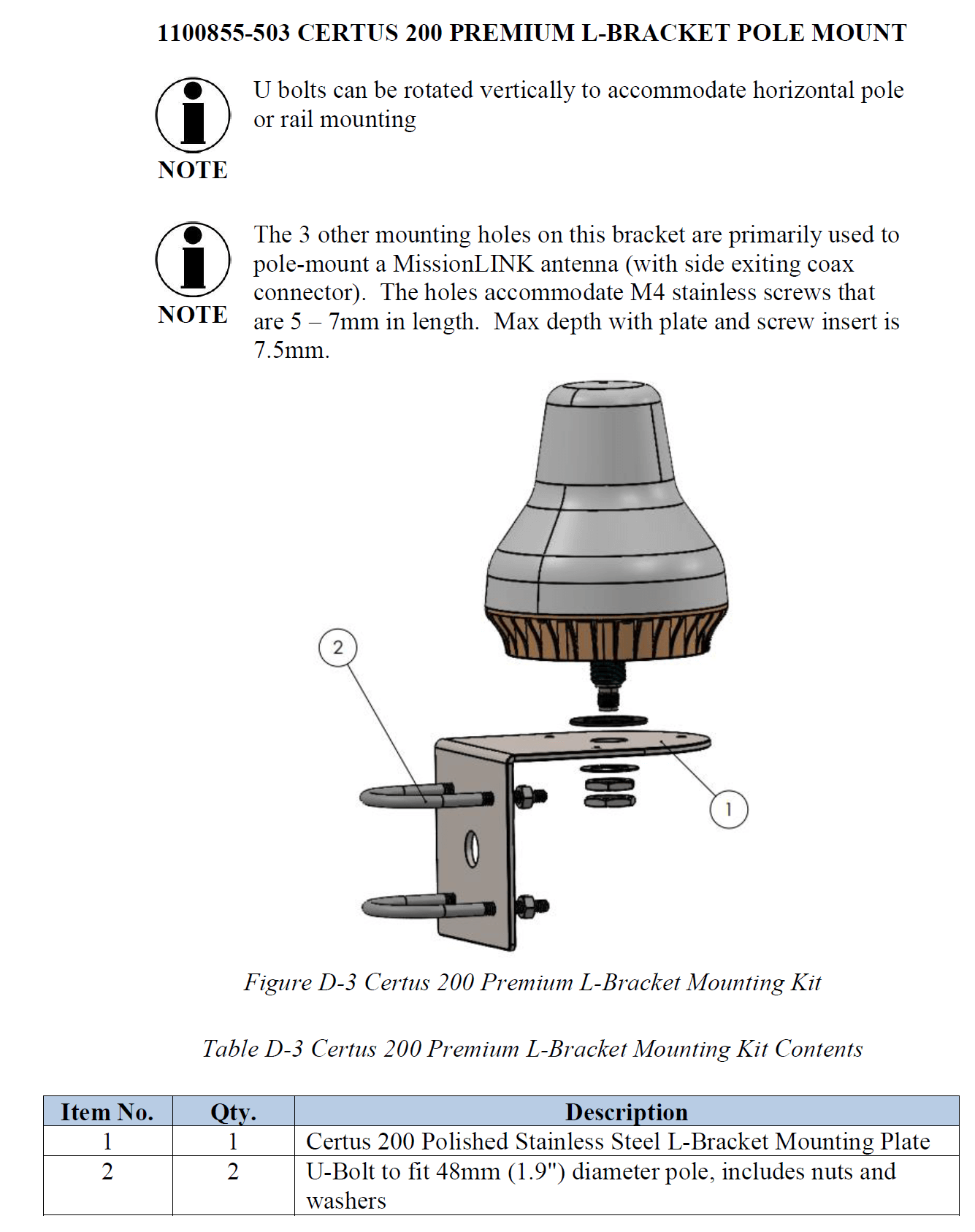

Premium L-Bracket Pole Mount stainless steel for Thales VesseLink 200, and MissionLINK 200 series

Compatible with: all VesseLINK 200, and MissionLINK 200 series

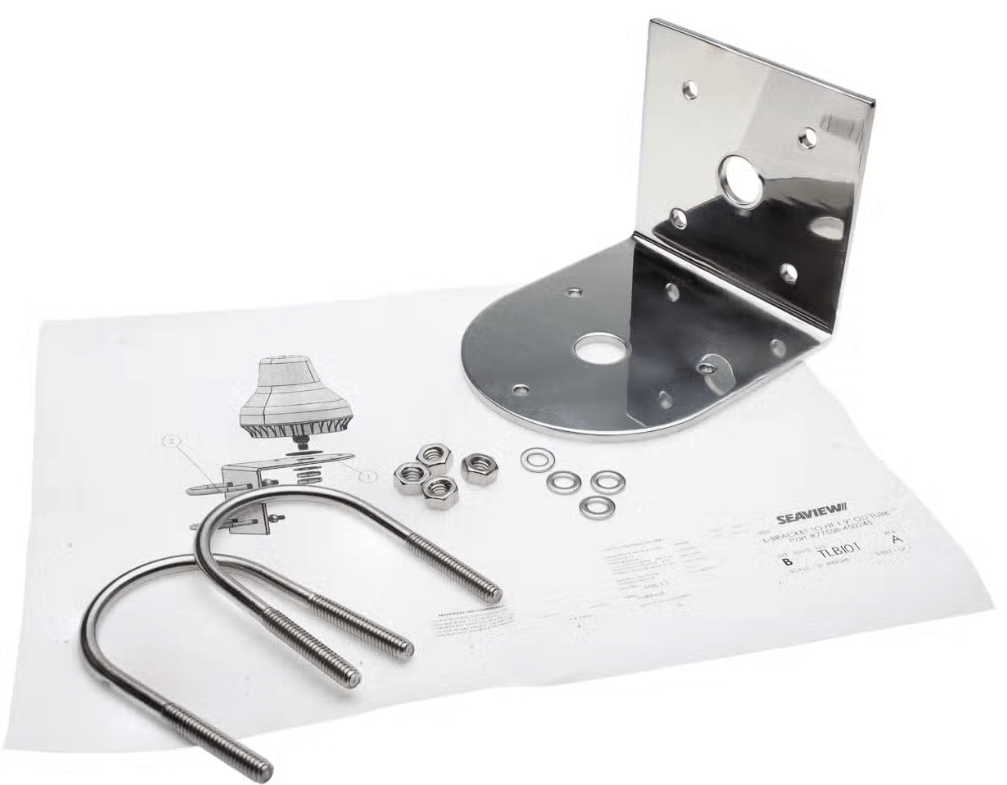

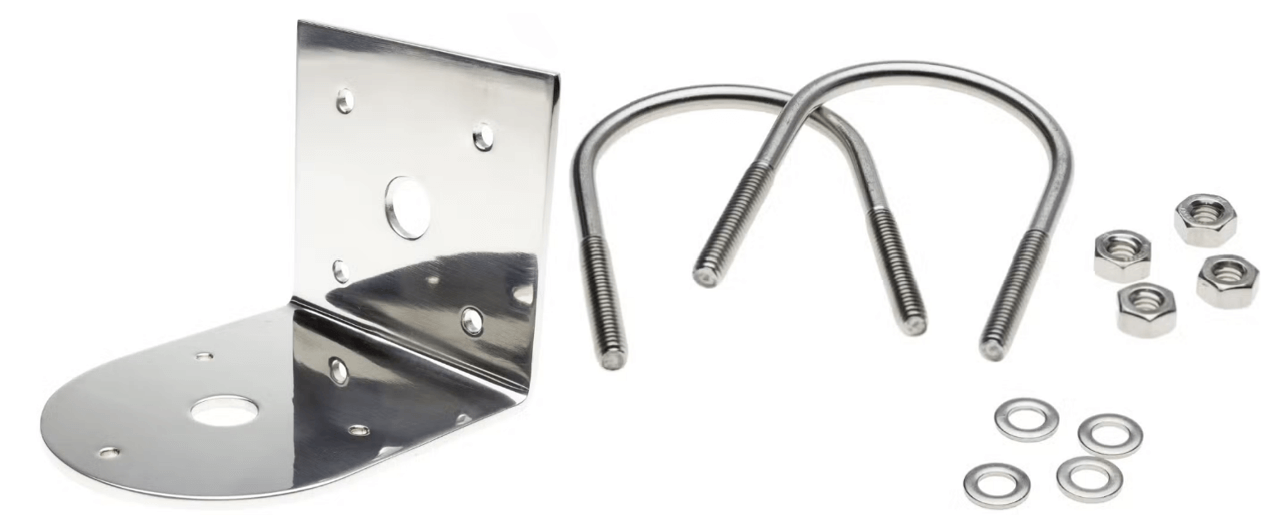

This part# 1100855-503 includes:

  • Certus 200 series Polished Stainless Steel L-Bracket Mounting Plate
  • L-Bracket monting plate – stainless steel
  • 4pcs Nuts (M11) and washers – stainless steel
  • No other parts/accessories are included.

Material

  • 3 mm X5CrNiMo17-12-2 / AISI 316L

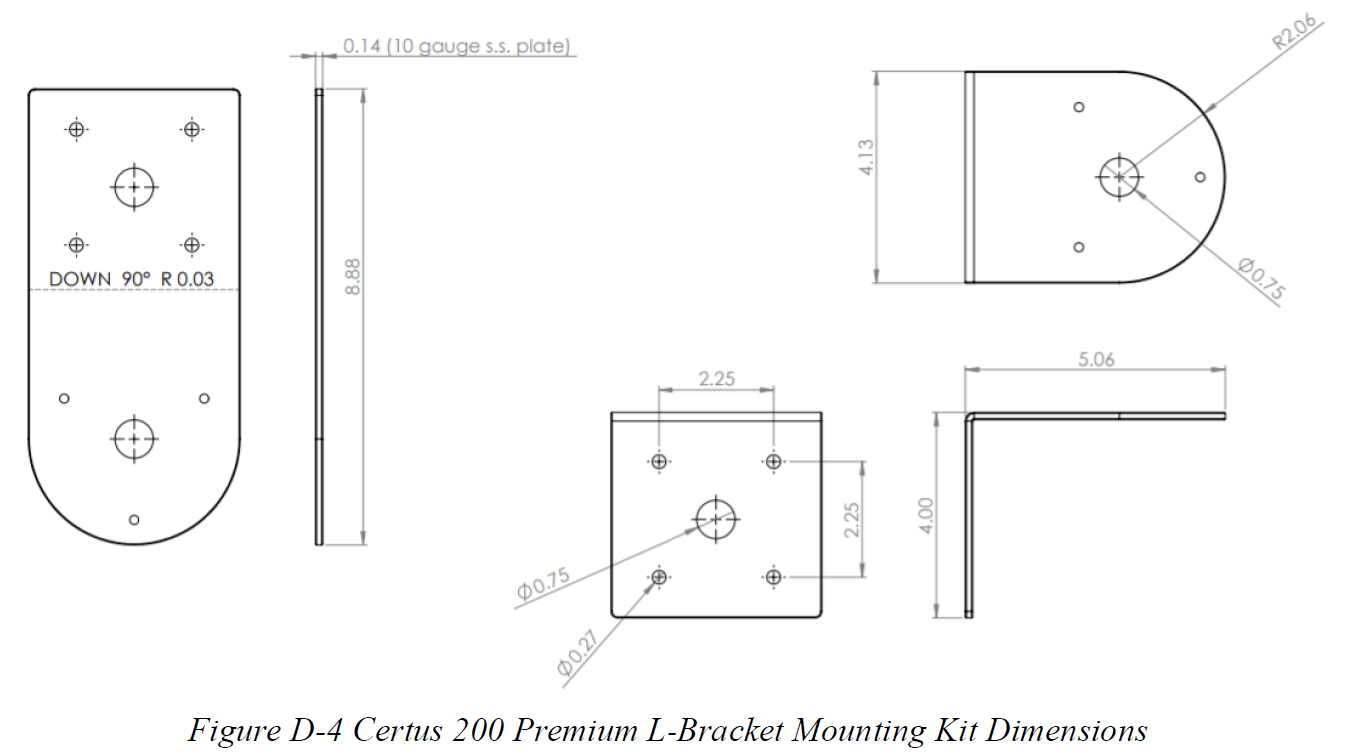

Dimension and weight

  • Dimension 130 x 100 x 105mm
  • Weight 0.79 kg
  • Brackets fit for outer diameter pipe up to: 1.9″ (48.26 mm)
  • Bolt circle Ø 80 mm, 3 drill holes Ø 4.5 mm for M4 thread with 4 mm depth on the bottom of the antenna
  • U-Bolt to fit 48mm (1.9in) diameter pole, includes nuts and washers

(compatible with VLINK 200, MLINK 200)

Brand

Thales
