15208-GP Thales GRC VIS 200, Iridium Certus 200
VIS 200 offers users a highly customisable, low Size, Weight and Power (SWaP) connectivity solution.
VIS 200 offers users a highly customisable, low Size, Weight and Power (SWaP) connectivity solution. With a versatile range of mount options and a simple, adaptable and robust design, VIS 200 can supply discrete, global, low data rate, images and video streaming on-the-move.

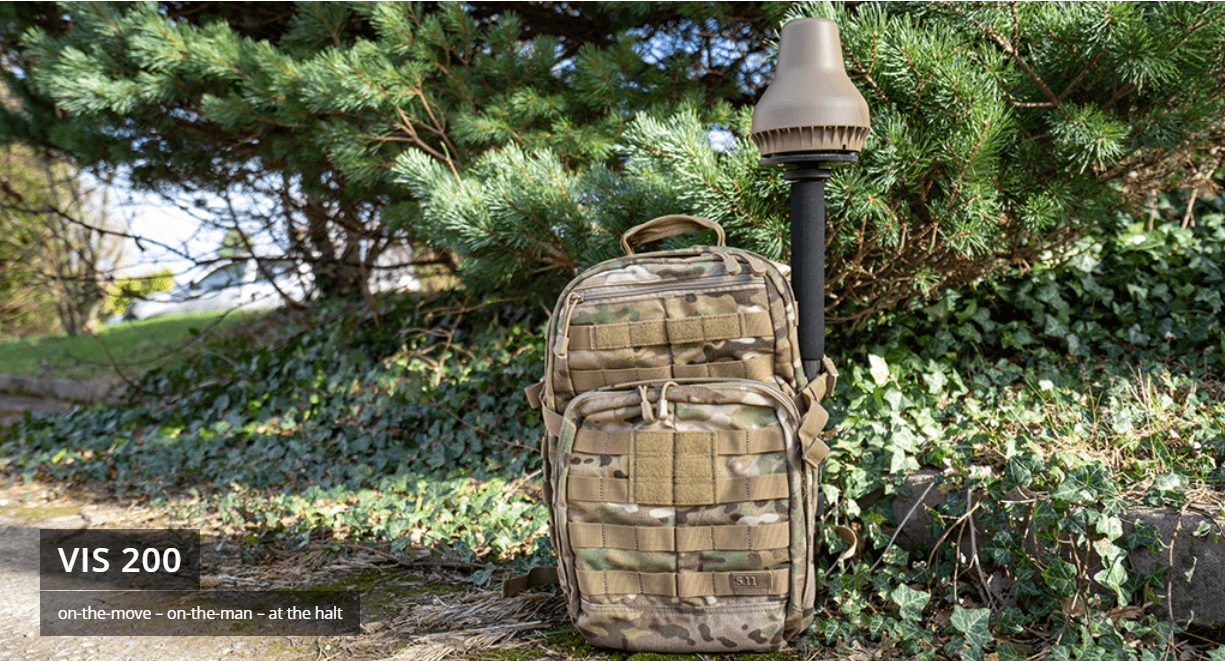

- On-the-move, on-the-man and at-the-halt
- Certus 200 Service (176 kpbs Up/Down)
- IP67 rated antenna for Water, Vibration, and Shock Resistance
- 100% Global Satellite Coverage and Low Latency for Critical Data and Voice Communications
- Satellite to Land Mobile Radio Extendable Network Through a Unique Radio Gateway
- Easily Integrates Terrestrial Cellular with Built-in Preferred Routing Switch
IP data sessions up to 176kbps (down)/ 176 kbps (up)
3 standard & high quality VOIP voice lines
SBD & circuit switch (up to 64kbps)
Location tracking
PTT ready
ANTENNA Size: 5 inches dia. x 5.5 inches h
(12.5 cm dia. x 14 cm h)
Weight: 0.7 kg / 1.5 lbs
Operating Temperature: -40 to +55° C
IP67 Rated
Power: Directly powered from the
Base Unit at 24 VDC

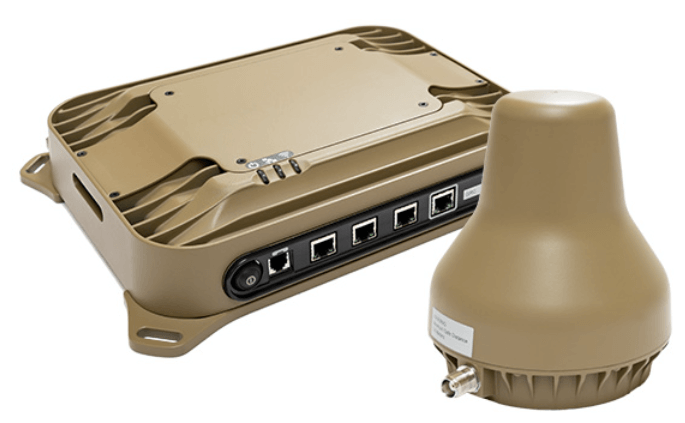

BASE UNIT Height: 2.3 inches (5.8 cm)
Width: 12 inches (30.5 cm)
Depth: 9 inches (22.9 cm)
Weight: 3.4 kg
IP31 Rated
Power Option 1: 10-32VDC
Option 2: AC/DC supply with 12VDC
*65W nominal/120W max
Connectors Front
RJ-45 LAN (3) Class 3 PoE
RJ-45 WAN (1) for cellular connection
RJ-14 POTS (2, independent phone lines)
Connectors Rear
DC Power Input (10-32V) MIL-STD-1275D
DC Power Input, +12V Regulated
GPIO (RS-232, +12V out, DISTRESS, Radio Gateway, GPIO)
TNC Connector, RF connection to BAA-H2 Antenna
Wi-Fi reverse SMA
SIM slot, Standard
