Lars Thrane’s  LT-3100 Citadel Solution Satellite Communications System offers a solution combining voice, SMS, data and tracking in one terminal.

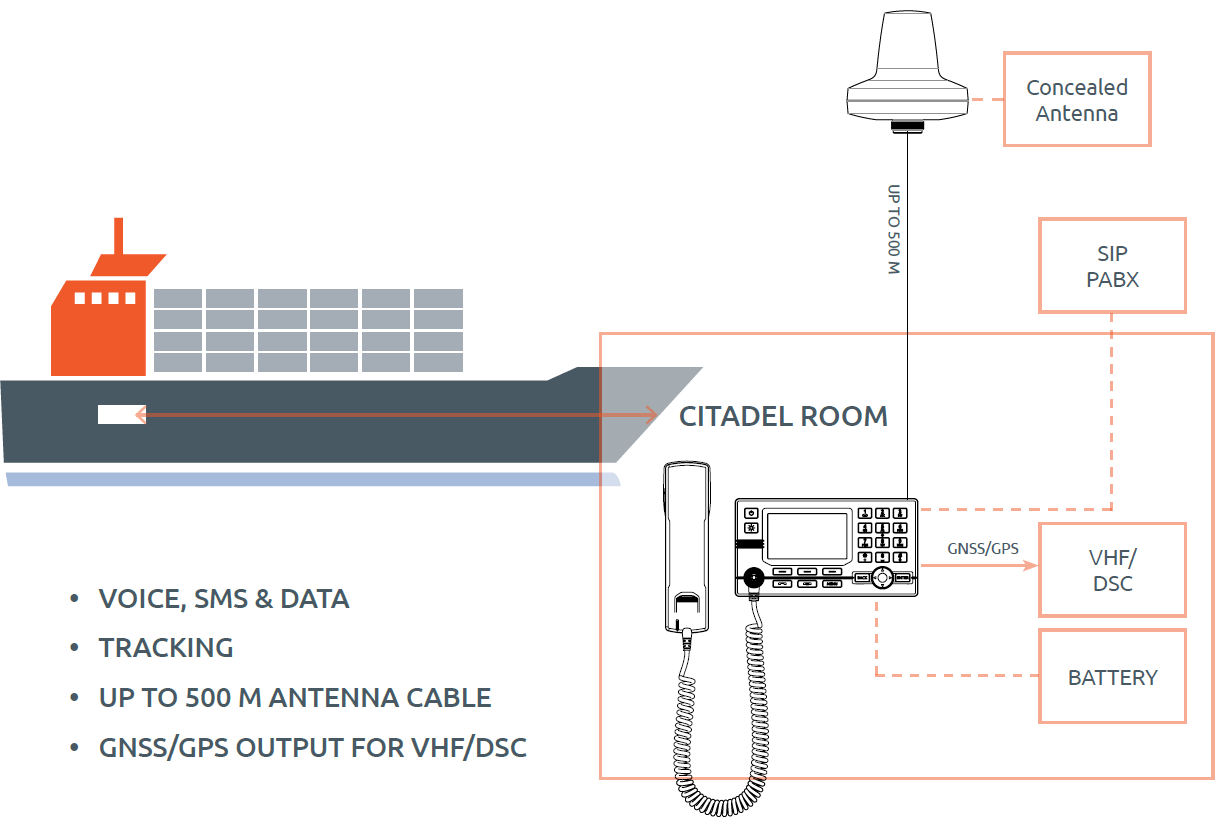

Using a 500m LMR400 Cable at 24VDC, this provides separation between the units, and gives freedom to mount the antenna unit in the best possible location, with free line of sight to the satellites, while also staying hidden from sight if need be.

Operating on the Iridium network, the LT-3100 system offers truly 100% global coverage.

• Pirate attacks around the world are still seen as a real threat to crews and vessels.
• As a consequence, more and more vessels are fitted with a citadel (safe room).
• Reliable communication is crucial in these situations.

Features

• Voice, SMS & Data
• Tracking
• Up to 500 m LMR400 cable @ 24VDC
• GNSS/GPS output to VHF/DSC
• Fulfills the Exxon-Mobile MESQAC E29 & E30 requirements
• Small antenna easy to hide

Voice, SMS, Data, and Vessel tracking
• 2.4 kbps and 9.6 kbps compressed data
• Single antenna cable solution (up to 500 m)
• High-performance GNSS/GPS receiver
• High quality microphone, speaker, and equalizer for

improved audio performance

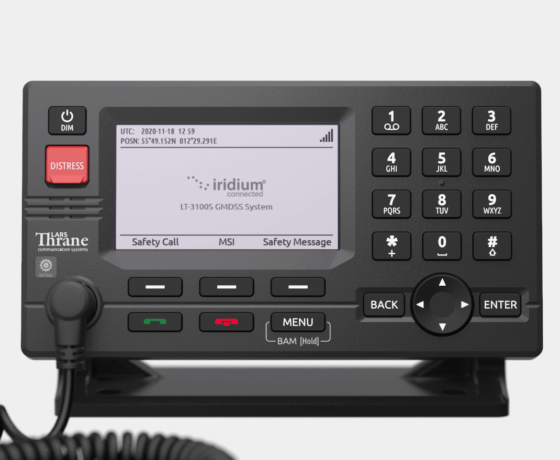

• Large 4.3” TFT display supporting day and night modes
• Voice prompt audio feedback
• Firewall and user authentication for high level of security
• Webserver for configuration and maintenance
• Support external LAN Wi-Fi Access Points
• Support external SIP PABX and SIP handsets

The LT-3100 Satellite Communications System is a maritime satellite
communication product from Lars Thrane A/S. The LT-3100 system
is designed for the professional market (deep sea, fishing, and workboats), but can be used for the leisure market as well.

The LT-3100 system meets all standards and certification requirements needed for worldwide maritime satellite communication equipment.
The LT-3100 system has voice and data capabilities with 100% global coverage provided by the Iridium® Communications Network.

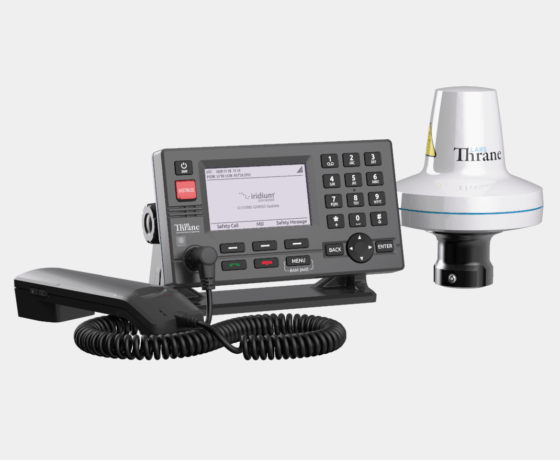

The LT-3100 system consists of a control unit, antenna unit, handset and cradle. A single coaxial cable connects the control unit with the antenna unit. Using a standard coaxial cable, up to 500 meters of separation between the units can be obtained, giving freedom to mount the antenna
unit in the best possible location, with free line of sight to the satellites.
The LT-3100 system can be used as the primary satellite communication product on vessels, covering the basic communication needs in terms of connectivity between the ship and shore. In addition, the LT-3100 system can be used for crew calling or as back-up satellite communication product.

The LT-3100 system provides voice, SMS, data, vessel tracking, and other Iridium services with competitive airtime rates, making it the perfect satellite communication product on board any vessel.

Whats in the Box ?

• LT-3110 Control Unit P/N: 51-100987
• LT-3120 Handset P/N: 51-100988
• LT-3121 Cradle P/N: 51-101181

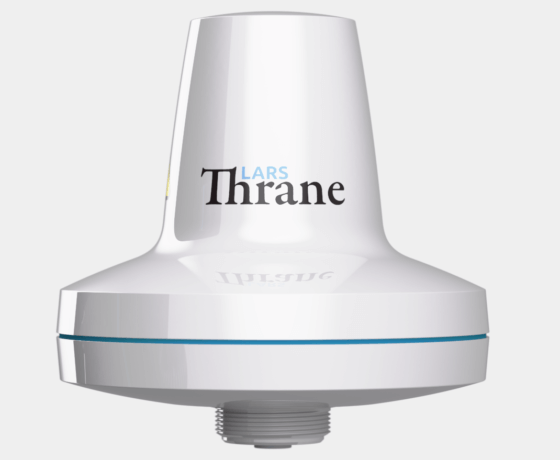

• LT-3130 Antenna Unit P/N: 51-100989
• Bracket Mount, Control Unit P/N: 91-100771
• Power Cable, 3m P/N: 91-100767
• User & Installation Manual P/N: 95-100765

Additional Accessories available, but NOT Included in this pack

• Flush Mount, Control Unit P/N: 91-100772
• Pole Mount (1.5” pipe, Ø38.8mm), Antenna Unit P/N: 91-100774
• Pole Mount (2.0” pipe, Ø53.0mm), Antenna Unit P/N: 91-102550
• Aux Cable, 3m P/N: 91-100768
• Coaxial Cable Ø4.9mm, 10m and 25m
• Coaxial Cable Ø10.3mm, 10m, 25m, and 50m
• Crimping Tool for Coaxial Cable Ø4.9mm and Ø10.3mm
