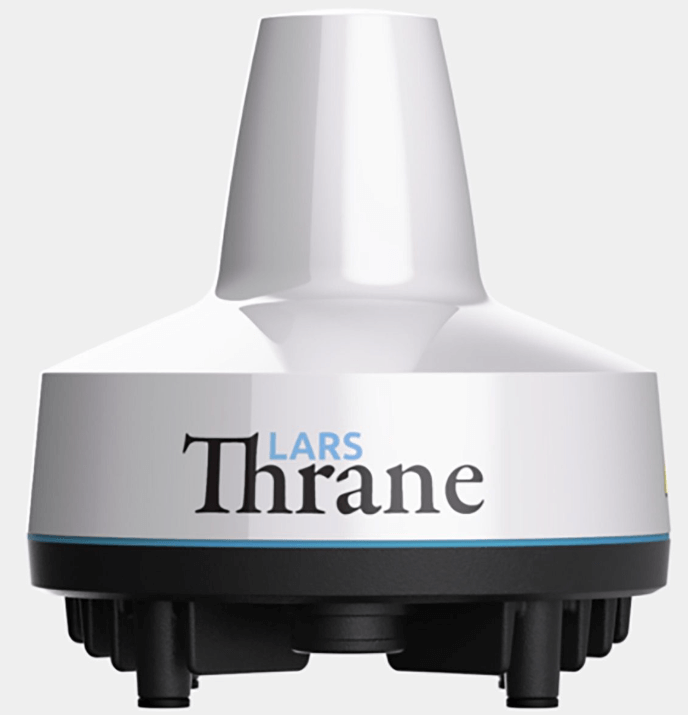

51-102640 Lars Thrane LT-4230 Antenna-Terminal, Maritime
LT-4230 Antenna(MARITIME), does NOT include any Cable or Mounting Hardware.
$9,179.50 Inc. GST
90-103021 51-102640 Lars Thrane LT-4230 Terminal Antenna, Maritime
1pce Antenna only – No cable or Mount is included in this pack.
LT-4230 Terminal Antenna Unit – Specifications
- Weight 3.70 kg (8.16 lbs)
- Dimensions 238.7 x Ø 224.6 mm (9.40 x Ø 8.84 in)
- Temperature, operational -40°C to +55°C (-40°F to +131°F)
- IP rating, dust and water IP67
- Interfaces Control Unit (N conn.)
- Antenna communication cable Coaxial cable, up to 150 m (500 ft)
Mounting and installation considerations:
• Mount the unit vertically (with the N connector pointing down)
• Feed the coaxial cable through the included cable hose
• Mount the unit with free line of sight to the Iridium® and GNSS satellites. Make sure that the unit can receive signals from the Iridium® and GNSS satellites (satellite reception information is available in the LT-4210S Control Unit user interface display, see Figure 60 on page 53)
• Mount the unit on a rigid structure with a minimum of exposure to vibration and shock
• Mount the unit using the Pole Mount provided by Lars Thrane A/S
• Mount the unit outdoor with an ambient temperature between -40°C to +55°C (-40°F to +131°F)
• Mount the unit with a minimum angle of 10 degrees towards a radar antenna (above or below) and keep a minimum distance of 2.5 m (8 ft)
• Mount the unit at least 1 m. (3 ft.) away from radio transmitting antennas (VHF, UHF, MF-HF)
• Mount the unit at least 2 m. (6 ft.) away from Inmarsat and transmitting VSAT antennas

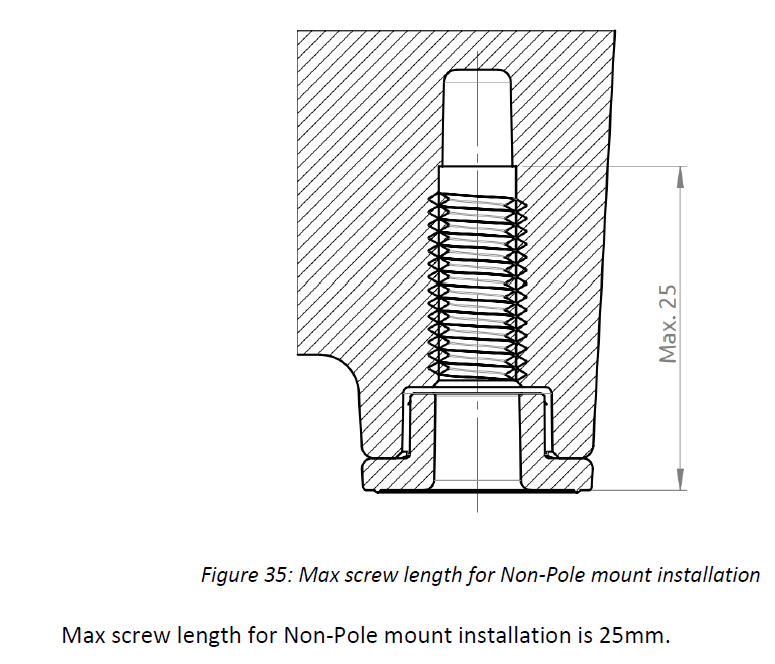

NOTE: If installing the LT-4230 Antenna Unit without the use of the Pole Mount (2.0” pipe, 53.0mm), Antenna Unit, the max screw length of 25 mm.

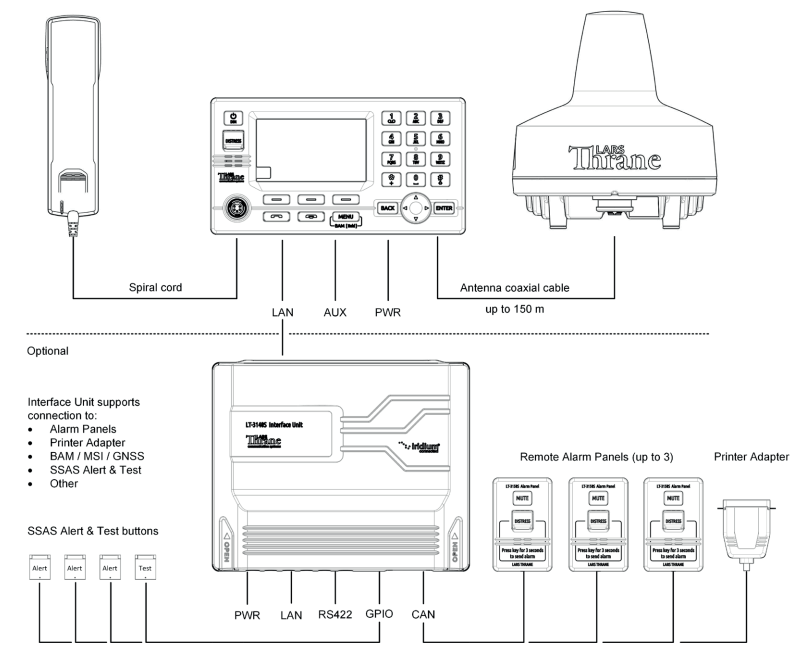

General LT-4200 System Overview
The LT-4200 Satellite Communications System is a standalone communication product, which is using the Iridium® satellite constellation. The LT-4200 system is working on the Iridium® NEXT satellites.
PERFORMANCE
The LT-4200 system has voice and data capabilities with 100% global coverage provided by the Iridium® Certus network. The LT-4200 system consists of a control unit, antenna unit, handset, and cradle. A single coaxial cable connects the control unit with the antenna unit. Using a standard coaxial cable, up to 150 meters of separation between the units can be obtained, giving freedom to mount the antenna unit in the best possible location, with free line of sight to the satellites.
The LT-4200 system can be used as the primary satellite communication product on vessels, covering the basic communication needs in terms of connectivity (ship to ship / ship to shore). The LT-4200 system offers three high quality voice channels, and IP-data up to 176 kbps (up) / 176 kbps (down), making it the perfect satellite communication product on board any vessel.
The LT-4200 system is designed and built for the demanding and rough environment at sea and with an operational temperature range from -40⁰C to +55⁰C (-40⁰F to +131⁰F).
LT-4200 Satellite Communications System
Key Features:
- LT-4200 Certus® 200 Maritime
- 3 x high quality voice channels
- Background IP: up to 176 kbps (up/down)
- Single antenna cable solution (up to 150 m)
- Support for external SIP PABX and SIP handsets (up to 8)
- POTS through Analogue Telephone Adaptors (ATA)
- High-performance GNSS/GPS receiver
- Ethernet LAN interface on control unit
- Large 4.3” TFT display supporting day and night modes
- Firewall and user authentication for high level of security
- Configuration of firewall, port forwarding, and remote access
- PPPoE/JSON protocol for external IP-data management
- Web server for configuration and maintenance
The LT-4200 system consists of the following units, provided by Lars Thrane A/S:
• LT-4210 Control Unit
• LT-3120 Handset
• LT-3121 Cradle
• LT-4230 Antenna Unit
Unpacking (in-the-box)
Unpack the LT-4200 Satellite Communications System – Basic (P/N: 90-102608) and check that the following items are present in the box:
• 51-102664 LT-4210 Control Unit
• 51-100988 LT-3120 Handset
• 51-101181 LT-3121 Cradle
• 51-102640 LT-4230 Antenna Unit
• 91-100771 Bracket Mount, Control Unit
• 91-102118 Power Cable, 3m
• 4 x Stainless steel A4 screws (for Bracket Mount, Control Unit)
• 2 x Stainless steel A4 screws (for Cradle)
• 4 x Unit Test Sheets
• 95-102665 LT-4200 User & Installation Manual
NOTE: The Antenna unit mount (pole mount) is not included in the LT-4200 Satellite Communications System – Basic (P/N: 90-102656) and must be ordered separately. The antenna unit must only be mounted, using the pole mount, delivered by Lars Thrane A/S.
Accessories – NOT INCLUDED – The following accessory parts are not part of the basic system and must be ordered separately:
Mounts
• 91-100772 Flush Mount, Control Unit

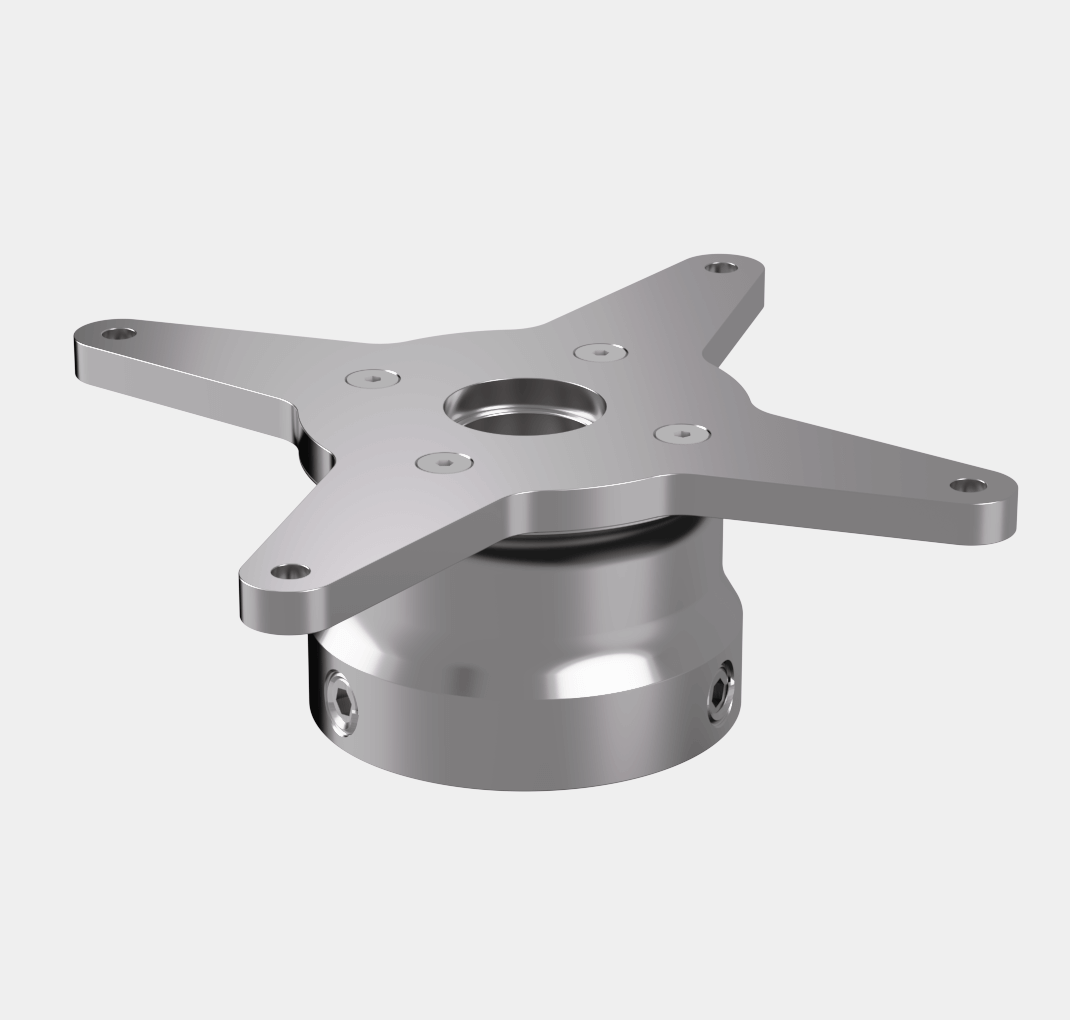

• 91-102967 Pole Mount (2.0” pipe, Ø53.0mm, A4 Stainless), Antenna Unit
Cable and connectors – The following cable and connector parts are not part of the basic system and must be ordered separately:
• 91-100768 Aux Cable, 3m
• 91-101137 Coaxial Cable Ø10.3mm 10m
• 91-101138 Coaxial Cable Ø10.3mm 25m
• 91-101139 Coaxial Cable Ø10.3mm 50m
• 91-101186 N Conn. (male) for Coaxial Cable Ø10.3mm
• 91-101188 Crimping Tool for Coaxial Cable Ø10.3mm
NOTE: Coaxial cables are delivered with one fixed N connector (outdoor mounting), another loose N connector and crimp parts comes with the cable. It is required to use an appropriate crimping tool for attaching the loose N connector.
