90-104506-SSAS-BNDL Lars Thrane LT-4200S GMDSS System, Wheelmark + SSAS/LRIT Certified, SSAS Bundle
This LT-4200S GMDSS System is fully compliant and tested towards the new GMDSS standard
IEC 61097-16 (2019), and MED / Wheelmark approved.
Supports additional services like SSAS, GMDSS Alarm Panels, and LT-3140S Interface Unit.
$13,553.10 Inc. GST

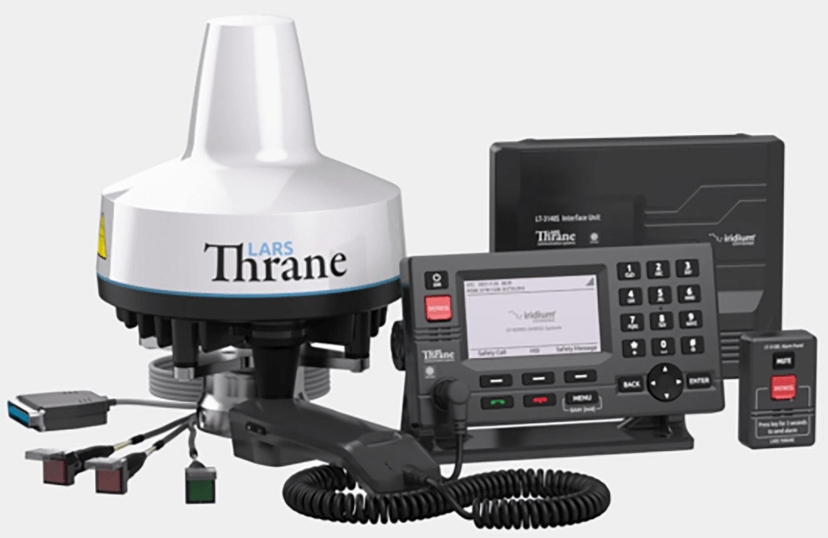

90-104506-SSAS-BNDL Lars Thrane LT-4200S GMDSS System, Wheelmark + SSAS/LRIT Certified, SSAS Bundle
THIS BUNDLE OFFER INCLUDES(in addition to the standard 90-104506):
- LT-3140S Interface Unit
- LT-3150S Alarm Panel with cable, 25m
- LT-3160S Printer Adapter with cable, 25m
- 2x SSAS Alert & Test buttons with cables, 50m/ea
- 1x SSAS Test button with cable, 50m
The standard LT-4200S GMDSS System is offered in a version that includes control unit & bracket mount, handset & cradle, antenna unit & power cable.
This standard version fulfills all the GMDSS basic requirements.
Supports additional services like SSAS, GMDSS Alarm Panels, and LT-3140S Interface Unit.
The LT-4200S GMDSS System is an Iridium satcom product supporting all GMDSS requirements for SOLAS vessels with 100% global coverage. The LT-4200S GMDSS System is fully compliant and tested towards the new GMDSS standard IEC 61097-16 (2019). The LT-4200S GMDSS System is MED / Wheelmark approved.
LT-4230S TERMINAL ANTENNA INFORMATION
The LT-4230S Antenna Unit should be mounted with free line of sight to the Iridium satellites for best possible performance.
The best location will typically be at the top of the lantern mast, where there are no obstructions blocking the Iridium satellite link. The LT-4230S Antenna Unit is designed to maintain a communication link to the Iridium satellites in all weather conditions.
TO ORDER – Pole Mount Options for Antenna
- Part# 91-102469 – Stainless Steel, Pole Bracket Mount, Ø38.8 to 63.5mm(1.5 to 2.5in), with Cable Hose
- Part# 91-100774 – Passivated Steel, Pole Mount, Inside diameter: Ø38.8mm(2.0″), Wt. 190g(0.42lbs)
- Part# 91-102550 – Passivated Steel, Pole Mount, Inside diameter: Ø53.0mm(2.0″), Wt. 240g(0.53lbs)
- Part# 91-102967 – Stainless Steel(A4), Pole Mount, Inside diameter: Ø53.0mm(2.0″)
TO ORDER – Cable, Connectors and Tooling
The following cable and connector parts are not part of the basic system and must be ordered separately:
• 91-100768 Aux Cable, 3m
• 91-101183 Coaxial cable Ø4.9mm, 10m
• 91-101184 Coaxial cable Ø4.9mm, 25m
• 91-101137 Coaxial Cable Ø10.3mm 10m
• 91-101138 Coaxial Cable Ø10.3mm 25m
• 91-101139 Coaxial Cable Ø10.3mm 50m
• 91-101140 N Conn. (male) for Coaxial Cable Ø4.9mm
• 91-101186 N Conn. (male) for Coaxial Cable Ø10.3mm
• 91-101187 Crimping Tool for Coaxial Cable Ø4.9mm
• 91-101188 Crimping Tool for Coaxial Cable Ø10.3mm
Coaxial cables are delivered with one fixed N connector (outdoor mounting), another loose N connector and crimp parts comes with the cable. It is required to use an appropriate crimping tool for attaching the loose N connector.
Antenna Mounting and installation considerations:
• Mount the unit vertically (with the N connector pointing down)
• Mount the unit with free line of sight to the Iridium® and GNSS satellites. Make sure that the unit can receive signals from the Iridium® and GNSS satellites
• Mount the unit on a rigid structure with a minimum of exposure to vibration and shock
• Mount the unit using either the Bracket Mount or Pole Mount provided by Lars Thrane A/S
• Mount the unit outdoor with an ambient temperature between -40°C to +55°C (-40°F to +131°F)
• Mount the unit with a minimum angle of 10 degrees towards a radar antenna (above or below) and keep a minimum distance of 2.5 m (8 ft)
• Mount the unit at least 1 m. (3 ft.) away from radio transmitting antennas (VHF, UHF, MF-HF)
• Mount the unit away from Inmarsat and transmitting VSAT antennas
The LT-4230S Antenna Unit must be installed outside the radar main beam. Typically, this is in the order of 10 degrees. To avoid near field antenna coupling, a minimum distance of 2.5 m (6 ft) between the radar antenna and the LT-4230S Antenna Unit must be obeyed. Figure 13 is illustrating how the LT-4230S Antenna Unit should be mounted to avoid interference from radars.
IMPORTANT: Failing to obey the specified installation conditions will void the warranty. However, depending on the specific radar frequency and power level, the separation distance between the radar and the LT-4230S Antenna Unit may be reduced, with no impact on the antenna performance. The performance of the LT-4230S Antenna Unit should be validated when the LT-4200S system is installed.
TO ORDER – Cable and connectors
The following cable and connector parts are not part of the basic system and must be ordered separately:
• 91-100768 Aux Cable, 3m
• 91-101183 Coaxial cable Ø4.9mm, 10m
• 91-101184 Coaxial cable Ø4.9mm, 25m
• 91-101137 Coaxial Cable Ø10.3mm 10m
• 91-101138 Coaxial Cable Ø10.3mm 25m
• 91-101139 Coaxial Cable Ø10.3mm 50m
• 91-101140 N Conn. (male) for Coaxial Cable Ø4.9mm
• 91-101186 N Conn. (male) for Coaxial Cable Ø10.3mm
• 91-101187 Crimping Tool for Coaxial Cable Ø4.9mm
• 91-101188 Crimping Tool for Coaxial Cable Ø10.3mm
Coaxial cables are delivered with one fixed N connector (outdoor mounting), another loose N connector and crimp parts comes with the cable. It is required to use an appropriate crimping tool for attaching the loose N connector.
LT-4200S GMDSS IN SHORT
The LT-4200S GMDSS System is small and compact. No requirements for either message terminal or printer. The LT-4200S GMDSS System offers the Iridium GMDSS services, High quality Voice (3 channels), and IP Data. The built-in GNSS/GPS receiver supports tracking functionality and can output NMEA 0183 position data. The LT-4200S GMDSS System can interface to external BAM and ECDIS systems. The Antenna Unit can be installed up to 150 meters from the Control Unit.
Application and Limitations
• The LT-4200S GMDSS system shall be installed according to manufacturer’s User & Installation
Manual.
• The LT-4200S GMDSS system includes an integrated Global Navigation Satellite System (GNSS)
receiver for position fixing.
• The LT-4200S GMDSS complies with the requirements for Other Network Function (ONF) as defined in IEC 61162-450
• The LT-4200S GMDSS can be used for GMDSS services in Sea Areas A1, or A2 or A3 defined by
SOLAS 1974 as amended, where Flag states have recognized Iridium as a mobile satellite service for
use in the GMDSS.
• The LT-4200S GMDSS complies with the requirements for reception of MSI through the Iridium
SafetyCast service and can be used for compliance with the carriage requirements for EGC when such services are made available through the Iridium satellite system.
• The LT-4200S GMDSS System LRIT Service can be used in all Sea Areas A1 – A4
• The LT-4230 Antenna Unit operational low temperature is:
• -40°C (-40°F) when using 24 VDC input power on the LT-4210S Control Unit
FEATURES
- SOLAS GMDSS Approved (Sea Areas A1, A2, and A3)
- GMDSS SSAS
- 100% Global Distress Coverage
- Distress Alert & Distress Call
- Safety Calling & Safety Messaging
- Maritime Safety Information (MSI)
- Support for remote Alarm Panels(Not included)
• 100% global coverage
• Distress Alert & Distress Call
• Maritime Safety Information (MSI)
• BAM & ECDIS interface
• 3 X Voice Channels (high-quality)
• IP-data: Up to 176 kbps (up/down)
• IP-data management (configuration of outgoing firewall, port forwarding, etc.)
• Up to 150 m antenna cable
Unpacking (in-the-box)
Unpack the LT-4200S GMDSS Satellite Communications System – Basic (Order No.: 90-104506) and check that the following items are present in the box:

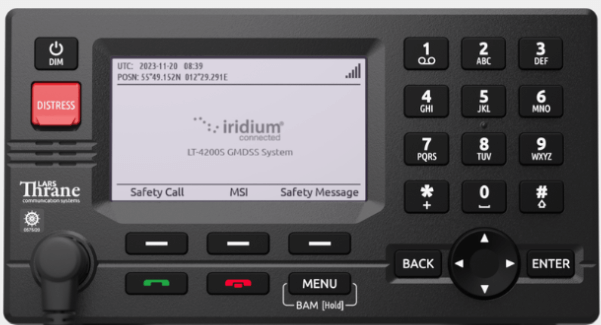

• 51-103118 LT-4210S Control Unit
• 51-100988 LT-3120 Handset
• 51-101181 LT-3121 Cradle
• 51-102640 LT-4230 Antenna Unit
• 91-100771 Bracket Mount, Control Unit
• 91-102118 Power Cable, 3m
• 4 x Stainless steel A4 screws (for Bracket Mount, Control Unit)
• 2 x Stainless steel A4 screws (for Cradle)
• 4 x Unit Test Sheets
• 95-104746 LT-4200S GMDSS User & Installation Manual
BUNDLE OFFER INCLUDES
- LT-3140S Interface Unit
- LT-3150S Alarm Panel, with cable, 25m
- LT-3160S Printer Adapter with cable, 25m
- 2x SSAS Alert & Test buttons with cables, 50m/ea
- 1x SSAS Test button with cable, 50m
NOTE: Antenna unit mounts are not included in the LT-4200S GMDSS Satellite Communications
System – Basic (P/N: 90-104506) and must be ordered separately. The antenna unit must
only be mounted, using a pole mount, delivered by Lars Thrane A/S
ACCESSORIES – Available, but NOT included:
The following accessory parts are not part of the basic system and must be ordered separately:
- 91-100772 Flush Mount(for the Control Unit)
- 91-102967 Pole Mount (2.0” pipe, Ø53.0mm, A4 Stainless) for the Antenna
- 91-100768 Auxiliary Cable, 3m
- Various Lengths – Coaxial Cable Ø10.3mm (up to 150m)
- Crimping Tool for Coaxial Cable Ø10.3mm
