90-103324 Lars Thrane LT-4200L System Land-Vehicles, Basic
The LT-4200L Fixed Site Land System meets all standards and certification requirements needed for worldwide Land Satellite Communication equipment – NOT for land vehicles/in-motion applications.
$11,531.30 Inc. GST
System Overview
The LT-4200L Satellite Communications System is a standalone communication product, which is using the Iridium® satellite constellation. The LT-4200L system is working on the Iridium® NEXT satellites.
PERFORMANCE

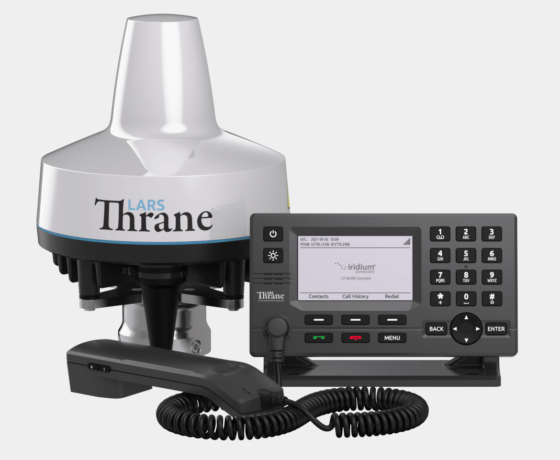

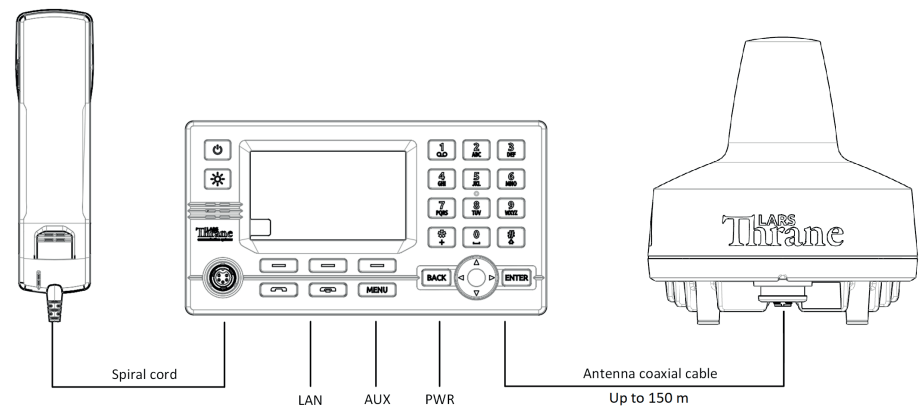

The LT-4200L system has voice and data capabilities with 100% global coverage provided by the Iridium® Certus network. The LT-4200 system consists of a control unit, antenna unit, handset, and cradle. A single coaxial cable connects the control unit with the antenna unit. Using a standard coaxial cable, up to 150 meters of separation between the units can be obtained, giving freedom to mount the antenna unit in the best possible location, with free line of sight to the satellites.
The LT-4200L system can be used as the primary satellite communication product on any fixed site building, covering the basic communication needs in terms of connectivity. The LT-4200L system offers three high quality voice channels, and IP-data up to 176 kbps (up) / 176 kbps (down), making it the perfect satellite communication product.
The LT-4200L system is designed and built for any demanding land environment with an operational temperature range from -40⁰C to +55⁰C (-40⁰F to +131⁰F).
LT-4200L Satellite Communications System for Land-Vehicles
Key Features:
- LT-4200L Certus® 200 for Land Fixed and Vehicle Applications
- 3 x high quality voice channels
- Background IP: up to 176 kbps (up/down)
- Single antenna cable solution (up to 150 m)
- Support for external SIP PABX and SIP handsets (up to 8)
- POTS through Analogue Telephone Adaptors (ATA)
- High-performance GNSS/GPS receiver
- Ethernet LAN interface on control unit

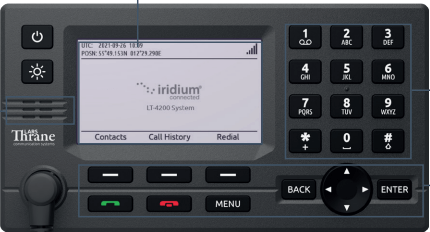

- Large 4.3” TFT display supporting day and night modes
- Firewall and user authentication for high level of security
- Configuration of firewall, port forwarding, and remote access
- PPPoE/JSON protocol for external IP-data management
- Web server for configuration and maintenance
The LT-4200L system consists of the following units, provided by Lars Thrane A/S:
• LT-4210 Control Unit
• LT-3120 Handset
• LT-3121 Cradle
• LT-4230 Antenna Unit
Unpacking (in-the-box)
Unpack the LT-4200L Satellite Communications System – Basic (P/N: 90-103324) and check that the following items are present in the box:
• 51-102664 LT-4210 Control Unit
• 51-100988 LT-3120 Handset
• 51-101181 LT-3121 Cradle
• 51-102640 LT-4230L Antenna Unit
• 91-100771 Bracket Mount, Control Unit
• 91-102118 Power Cable, 3m
• 4 x Stainless steel A4 screws (for Bracket Mount, Control Unit)
• 2 x Stainless steel A4 screws (for Cradle)
• 4 x Unit Test Sheets
• 95-102665 LT-4200L User & Installation Manual
ACCESSORIES – NOT INCLUDED – Below are not part of this system and must be ordered separately:
TO ORDER – Control Unit Flush Mount for Console
• 91-100772 Flush Mount, for the Control Unit

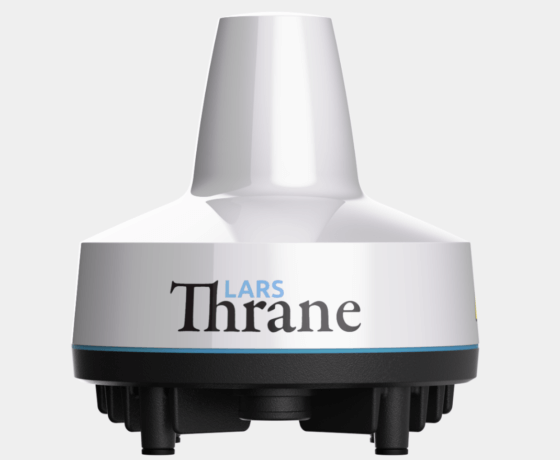

LT-4230L TERMINAL ANTENNA INFORMATION
The LT-4230L Antenna Unit should be mounted with free line of sight to the Iridium satellites for best possible performance.
The best location will typically be at the top of the lantern mast, where there are no obstructions blocking the Iridium satellite link. The LT-4230L Antenna Unit is designed to maintain a communication link to the Iridium satellites in all weather conditions.
TO ORDER – Pole Mount Options for Antenna
- Part# 91-102469 – Stainless Steel, Pole Bracket Mount, Ø38.8 to 63.5mm(1.5 to 2.5in), with Cable Hose
- Part# 91-100774 – Passivated Steel, Pole Mount, Inside diameter: Ø38.8mm(2.0″), Wt. 190g(0.42lbs)
- Part# 91-102550 – Passivated Steel, Pole Mount, Inside diameter: Ø53.0mm(2.0″), Wt. 240g(0.53lbs)
- Part# 91-102967 – Stainless Steel(A4), Pole Mount, Inside diameter: Ø53.0mm(2.0″)
TO ORDER – Cable, Connectors and Tooling
The following cable and connector parts are not part of the basic system and must be ordered separately:
• 91-100768 Aux Cable, 3m
• 91-101183 Coaxial cable Ø4.9mm, 10m
• 91-101184 Coaxial cable Ø4.9mm, 25m
• 91-101137 Coaxial Cable Ø10.3mm 10m
• 91-101138 Coaxial Cable Ø10.3mm 25m
• 91-101139 Coaxial Cable Ø10.3mm 50m
• 91-101140 N Conn. (male) for Coaxial Cable Ø4.9mm
• 91-101186 N Conn. (male) for Coaxial Cable Ø10.3mm
• 91-101187 Crimping Tool for Coaxial Cable Ø4.9mm
• 91-101188 Crimping Tool for Coaxial Cable Ø10.3mm
Coaxial cables are delivered with one fixed N connector (outdoor mounting), another loose N connector and crimp parts comes with the cable. It is required to use an appropriate crimping tool for attaching the loose N connector.
Antenna Mounting and installation considerations:
• Mount the unit vertically (with the N connector pointing down)
• Mount the unit with free line of sight to the Iridium® and GNSS satellites. Make sure that the unit can receive signals from the Iridium® and GNSS satellites
• Mount the unit on a rigid structure with a minimum of exposure to vibration and shock
• Mount the unit using either the Bracket Mount or Pole Mount provided by Lars Thrane A/S
• Mount the unit outdoor with an ambient temperature between -40°C to +55°C (-40°F to +131°F)
• Mount the unit with a minimum angle of 10 degrees towards a radar antenna (above or below) and keep a minimum distance of 2.5 m (8 ft)
• Mount the unit at least 1 m. (3 ft.) away from radio transmitting antennas (VHF, UHF, MF-HF)
• Mount the unit away from Inmarsat and transmitting VSAT antennas
The LT-4230L Antenna Unit must be installed outside the radar main beam. Typically, this is in the order of 10 degrees. To avoid near field antenna coupling, a minimum distance of 2.5 m (6 ft) between the radar antenna and the LT-4230L Antenna Unit must be obeyed. Figure 13 is illustrating how the LT-4230L Antenna Unit should be mounted to avoid interference from radars.
IMPORTANT: Failing to obey the specified installation conditions will void the warranty. However, depending on the specific radar frequency and power level, the separation distance between the radar and the LT-4230L Antenna Unit may be reduced, with no impact on the antenna performance. The performance of the LT-4230L Antenna Unit should be validated when the LT-4200L system is installed.
TO ORDER – Cable and connectors
The following cable and connector parts are not part of the basic system and must be ordered separately:
• 91-100768 Aux Cable, 3m
• 91-101183 Coaxial cable Ø4.9mm, 10m
• 91-101184 Coaxial cable Ø4.9mm, 25m
• 91-101137 Coaxial Cable Ø10.3mm 10m
• 91-101138 Coaxial Cable Ø10.3mm 25m
• 91-101139 Coaxial Cable Ø10.3mm 50m
• 91-101140 N Conn. (male) for Coaxial Cable Ø4.9mm
• 91-101186 N Conn. (male) for Coaxial Cable Ø10.3mm
• 91-101187 Crimping Tool for Coaxial Cable Ø4.9mm
• 91-101188 Crimping Tool for Coaxial Cable Ø10.3mm
Coaxial cables are delivered with one fixed N connector (outdoor mounting), another loose N connector and crimp parts comes with the cable. It is required to use an appropriate crimping tool for attaching the loose N connector.
