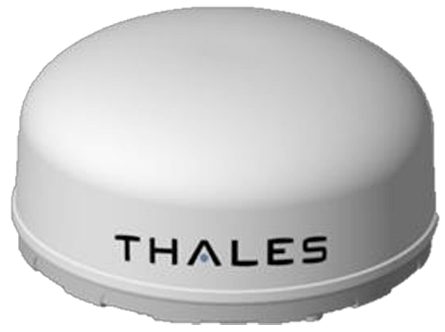

1600901-1 Thales VesseLINK Active Antenna (BAA)

SKU: 1600901-1

$9,719.60 Inc. GST

VesseLINK200-700-350_Installation-Guide_2021.pdf 2024-User-Guide_VesseLINK-200-and-700.pdf

1600901-1 VesseLINK 700 BAA, ADU Antenna

This high-gain, electronic phased array antenna has no moving parts to enable the fastest upload and download speeds to cover any
vessel communications need from safety services, tracking and location services, and out-of-band management to operational reporting and data transfers.

NOTE: This pack includes the Antenna Unit only, but NO mounting hardware, accessories or any other parts.

part# 1600901-1 Antenna Specifications

  • Dimensions: 14.5inDia x 7.8inH(36.8cm diameter x 19.8cm high)
  • Weight: 6.2lbs(2.8kg)
  • Power: Directly powered by the terminal at 24 VDC
  • IP Rating: IP67
  • Operating Temperature: -40 to +55° C
  • Mechanical Vibration and Shock: IEC 60945, Section 8.7.1 and 8.7.2, MIL-STD-810G, Test Method 516.6, Proc. IV
  • Salt-fog/Corrosion, Rain and Spray Standard: IEC 60945 Sections 8.12 and 8.8

Brand

Thales
