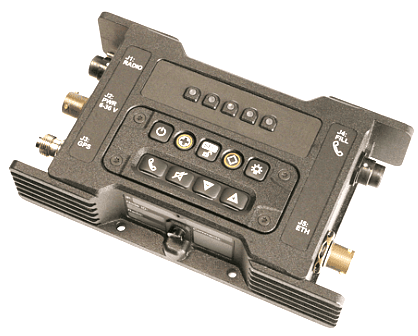

2069-10-70 Barrett PRC-2069 VHF Tactical Voice and Position Encrypter, for Mobile and Base, Nato-Green

2069-10-70 BARRETT PRC-2069 VHF Tactical Voice and Position Encrypter, Mobile-Base, Nato-Green

The Barrett Voice and Position Encrypters are high performance, digital, secure voice modems.

They are suitable for first responders, security agencies, governmental and paramilitary users with voice privacy and asset tracking.

Easily integrating with all VHF, UHF and HF radio transceivers via the audio or accessory interface, the units are suitable for use with base station and vehicular radio installations.

Features

• AES-256 Encryption: Voice, Data and Position
• GPS & GLONASS Support
• 600 – 2400 bps Automatic Digital Voice Rates
• STANAG 4538 Modem
• V/UHF & HF & Transceiver Compatible (SSB & FM)
• TWELP Vocoder – High Voice Clarity
• Ethernet Interface
• Inbuilt Loudspeaker
• 6-36V DC vehicle power

Available Models:

HF > 2067-10-60 Barrett 2067 HF Vehicular/Base Voice and Position Encrypter (Black)
HF > 2067-10-70 Barrett PRC-2067 HF Tactical Vehicular/Base Voice and Position Encrypter (NATO Green)
VHF > 2069-10-60 Barrett 2069 VHF Vehicular/Base Voice and Position Encrypter (Black)
VHF > 2069-10-70 Barrett PRC-2069 VHF Tactical Vehicular/ Base Voice and Position Encrypter (NATO Green)

Security
The built-in AES encryption means that all communications are secured by a trusted algorithm. Switching between Secure Digital Voice (SDV) and analogue voice (analogue SSB or FM) transmission is done by simply pressing the PLAIN / SECURE button(lock symbol). Key index selection is made via keypad.

Tracking
The In-line voice and position encrypters can be configured to send out periodic position reports. These are designed to
be received by a PC running Barrett’s TAC Command software (purchased separately). TAC Command can also be used to pull positions from voice and position encrypter units, if so configured.

Versatility
As connection is external to a transceiver, rather than being internal fit, Voice and Position encrypters can easily be transferred from one transceiver to another without the requirement of re-loading security keys. This allows operators in the field to easily adapt to use between multiple transceivers.

Modem
The Barrett Voice and Position Encrypters have a built-in STANAG 4538 modem for Automatic Link Set-up, 3G ALE, and error-free packet data transfers. The unit can be set-up to run in robust BLOS (HF) mode. The result is significantly extended range and increased data throughput.

Specifications

Standards MIL-STD 810F Humidity, Shock, Vibration,
Dust, Immersion
MIL-STD 461, IEC/EN 60950
Power 6 – 36V DC
Temperature Operating -40 to +60oC
Storage -55 to +85oC
Dimensions 163 x 96 x 41mm (w x d x h)
Weight 800g
Speaker 2 x 4W 8 Ohm internal
