BC404701 Barrett 4047 HF Antenna Kit, Horizontal Dipole Automatic Tuning, for Fixed Base-Station

BC404701 BARRETT 4047 HF Antenna Kit, Automatic Tuning, Horizontal for Base-Station

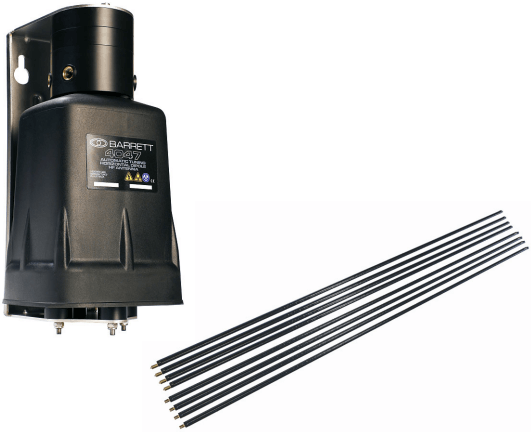

The Barrett 4047 Horizontal Dipole Automatic Tuning HF(P/N BC 404701) is specifically designed to interface with Barrett 4000 series HF transceivers.

It is designed for base station applications where space is limited but high performance is still required.

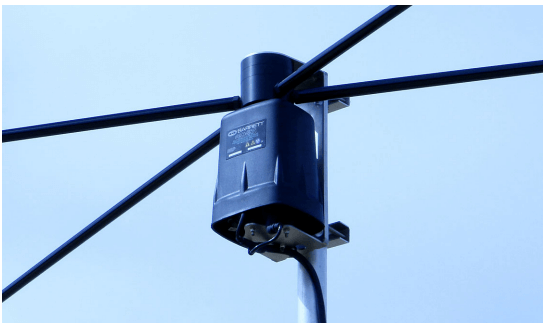

Mounted on a standard 50mm pole the antenna can be, mounted as close as 6 metres from the ground making it extremely easy to instal . With a packed length of only 2.1 metres the antenna can be transported by air. For compatible ,
masts please download the Barrett Mast Guide.

The Barrett 4047 is fitted with an internal GPS.

This internal unit can be used to provide GPS data as part of a GPS tracking network without the need to install a separate GPS, simplifying the system installation.

Features

• 1.5 – 30 MHZ Tuning Range
• Compact Size
• Easy installation in space restricted locations –
• 150 W ( voice and Data) Digital,
• Internal GPS
• ALE 2G/3G Compatible
• Memory Tune (100 ms)
• Mil-STD 810G

Providing a frequency coverage of 1.5 to 30MHz, the Barrett 4047 features rapid tuning (typically less than 1.5 s) and low
power consumption capabilities.

When paired with a Barrett 4000 series HF Transceiver, the 4047 memory tune feature eliminates the need to retune an
antenna after a channel change.

When returning to a previously tuned channel, the sets the 4047 with a transceiver stored tuning result in less than 100ms.

BC404701 SPECIFICATIONS

General
Frequency range 1.5 – 30 MHz (continuous)
Power 150 W PEP (digital, voice and data)
Polarisation Horizontal
Radiation Pattern Omni-Directional in horizontal and
vertical planes

VSWR Better than 2:1 when tuned
Tuning time Less than seconds (typical) 1.5
From memory, less than 100ms

Supply voltage 12-13.8 V DC (derived from transceiver)
Antenna impedance 50 ohm unbalanced
Input current Average 80 mA @ +12.6 V input
Specifications

Mechanical
Mounting height Recommended 6m – 10m

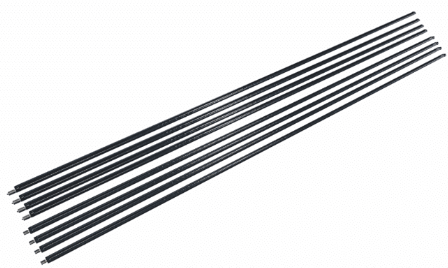

Element length Each element 1.5m 3m assem , bled
Assembled length 5.7m tip to tip
Assembled width 2.2m tip to tip
Assembled height 220mm from top of mounting hub
flange to element tips

Weight 8.2 kg
Case construction Molded – with glass filled Nylon-66
powder-coated – stainless steel base

Colour Black

Environmental
Wind 160kph/hr
Operating temperature -30°C to +70°C
Humidity 95% relative, non-condensing
Ingress protection IP67

Standards Designed to meet or exceed:
– MIL-STD 810G for drop, dust,
temperature, shock and vibration
– CE
