BCA40500 Barrett 4050 HF SDR Control Handset, no cable

SKU: BCA40500

Barrett_4050_Control_Handset_Brochure_English.pdf Barrett_COMMERCIAL_Commercial_Catalogue.pdf

BCA40500 BARRETT 4050 HF SDR Control Handset, no cable

The Barrett 4050 Control Handset is a further enhancement to the versatility of the Barrett 4050 HF SDR Transceiver.

It combines smartphone-style ease-of-use with the touchscreen intuitiveness that users of the Barrett 4050 HF SDR Transceiver are familiar with.

The streamlined design – including a built-in microphone and loudspeaker – makes the 4050 Control Handset the perfect substitution for the Barrett 4050’s control head in mobile installations.

Overview                                                                                                                                                                                                       The fully featured Barrett 4050 control handset provides streamlined radio control particularly in vehicle and marine
installations. The handset can be used as the primary control interface, completely replacing the standard 4050 front
control panel or as a secondary interface in conjunction with the standard control panel. IP/WiFi connectivity can be
achieved with the optional USB Interface(P/N 4090-01-27

Does NOT include and Cable for Handset, order as below:

  • 4050 Control Handset Cable (P/N BCA40502 DDN4097A).

Features

  • Control Handset for 4050 HF SDR Transceiver.
  • Integrated GPS Receiver
  • Includes integrated button,
  • touch screen,
  • PTT keypad
  • internal speaker
  • Full colour LED touch screen display.
  • Full radio control.

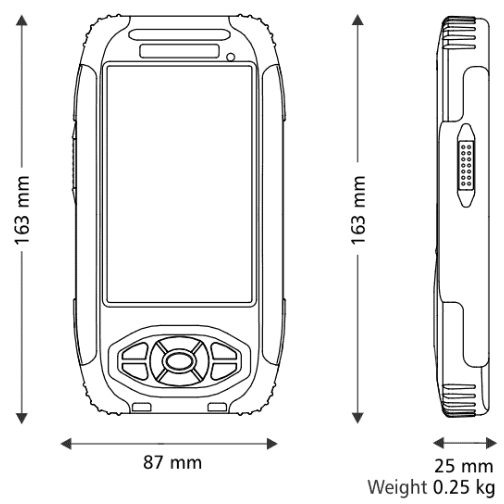

  • Dimensions: L163 x W87 x H25mm
  • Weight 0.2 kg5

Its unobtrusive size easily mounts to a vehicle dashboard or vessel helm. A quick release attachment makes removing
the handset a simple and uncomplicated one-hand operation.

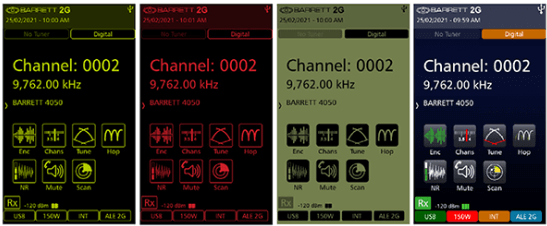

The 4050 software has four separate theme modes for use in different HF SDR ambient light conditions. The screen can also be turned into landscape format via the user interface, if required.

The Control Handset can connect to both the front and rear of the transceiver and be used as the primary control interface, completely replacing the standard 4050 HF SDR Transceiver front control panel or as a secondary interface in conjunction with the standard control panel.

IP/WiFi connectivity can be achieved with the optional USB Interface (P/N 4090-01-27).

Connected to the transceiver body by a 6m cable – incorporating an auxiliary speaker jack – the handset display incorporates a super bright, high definition, 24-bit colour touchscreen which provides optimal viewing ability in all lighting conditions

Brand

Barrett
