2089-00-10 Barrett PRC-2084+ VHF, 50W, Tactical Base-Station
2089-00-10 BARRETT PRC-2084+ VHF Transceiver, 50W, Tactical Base-Station Pack
The PRC-2082+ Mobile package provides a convenient docking station for the PRC-2080+ transceiver as well as the flexibility for dismounted use when not in the vehicle (additional accessories are required to use the PRC-2080+ as a Hand Portable).
The 50 W VHF amplifier provides range extension and increased link reliability when connected to the external vehicle whip antenna system.
The PRC-2082+ can be installed in a range of vehicles including jeeps, patrol boats, APC’s, and tanks.
Is ready for connection to combat net radio systems incorporating intercom harnesses.
The overall size of the system makes it one of the smallest VHF platforms available making it particularly suited to vehicles where space is limited.
The 50W Base-Station Pack comprises:-
- PRC-2080+ VHF Transceiver 2085-00-00 DDN3823A
- Tactical handset with keypad 2080-01-11 DDN3824A
- Vehicle docking station for docking of PRC-2080+ Transceiver 2087-00-01
- 50 W VHF Amplifier 2087-00-02
- Rugged external mount speaker 2082-01-33
- VHF Speaker mounting bracket 2082-01-34

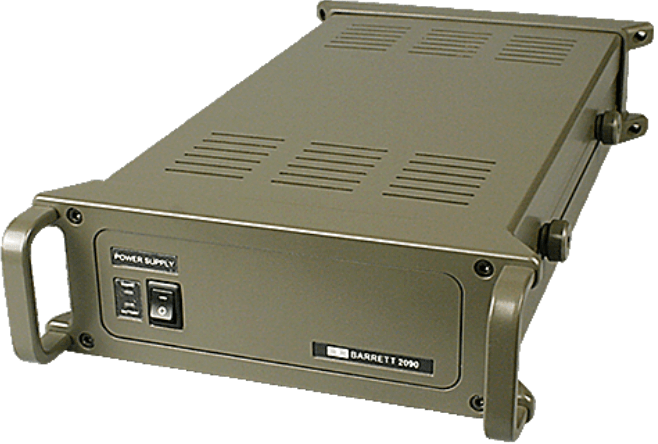

- AC power supply module – 13.8 VDC 2089-01-00
- Coax cable between transceiver and VHF amplifier 2087-00-05
- Interconnecting control cable 0.3m between 50 W VHF amplifier and vehicle docking station 2082-00-03
- Speaker cable 2082-10-32
- VHF Handset mounting bracket 2082-01-32
- Vehicle docking station to power supply connecting cable 2089-06-06
- Barrett PRC-2080+ operation manual 2085-60-10
Standard features:-
– 10 preset – 25 kHz (2304 Channels)
– 150 Hz tone squelch in legacy mode (AFF) (STANAG 4204, PRC-77 compatible)
– Advanced module diagnostics & error conditions
– Meets MIL-STD 810G for shock, temperature, vibration & dust
Optional Features:-
– ECCM parameters
– COMSEC – Encrypted fixed frequency
– TRANSEC – Digital encryption, Frequency hopping, free channel search
For additional options and accessories, please see relevant section detail.
Notes:-
– See brochure for more detailed information.
– Suitable antenna to be ordered separately.
INFORMATION > 2085-00-10 BARRETT PRC-2080+ **********************************************

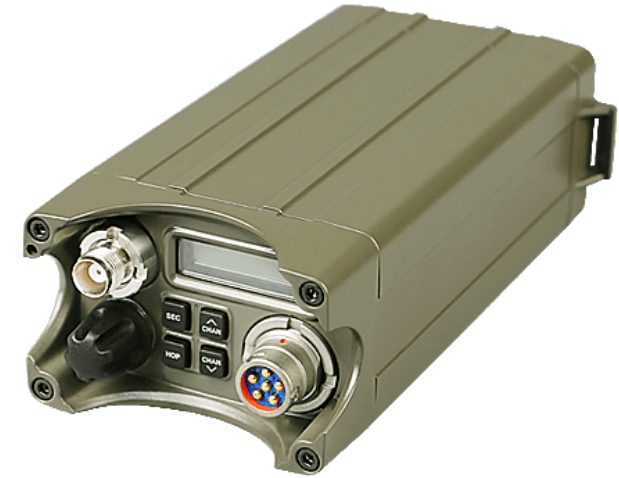

The PRC-2080+ low band VHF transceiver is designed for multi-role tactical military and security applications. It is an extremely compact and lightweight unit which is simple to operate in demanding mission critical conditions.
The PRC-2080+ is part of the family of Barrett transceivers that are field proven in over 150 countries, on every continent and in all environments.
In stand-alone configuration, the PRC-2080+ is ideal for squad level communication requirements.
Using either the supplied advanced handset or optional tactical headset, the PRC-2080+ transceiver can communicate reliably up to 8 km in open space (subject to terrain and topography), using the standard tape whip antenna.
This 5W Portable-Pack comprises:-
- PRC-2080+ VHF Transceiver 2085-00-00 DDN3823A
- Rechargeable 6.5 Ah Li-Ion battery pack 2085-03-05 DDN3709A
- Tactical handset with keypad 2080-01-11 DDN3824A
- 5 W Gooseneck 2085-02-01 DDN3825A
- Collapsible whip 1.8 metres 2085-02-02 DDN4096A
- Tape whip antenna 2085-02-03 DDN3826A
- Webbing pouch – Multicam 2080-01-13 DDN3827A
- Battery charger with adaptor and plate 2085-03-09 DDN4030A
- Barrett PRC-2080+ operation manual 2085-60-10
In stand-alone configuration, the PRC-2080+ is ideal for squad level communication requirements.
Using either the supplied advanced handset or optional tactical headset, the PRC-2080+ transceiver can communicate
reliably up to 8 km in open space (subject to terrain and topography), using the standard tape whip antenna.
A webbing pouch is included and an an optional multi-cam canvas backpack is available.
Features include
Compact lightweight modular design
Configurations include:-
5 W Hand Portable
25 W Manpack
50 W Mobile
50 W Base Station
50 W Re-broadcast system
DSP voice and data signal processing
Selective and group calling
Compatible with other 30 – 88 MHz communications equipment
Available options include
Encryption and frequency hopping security
Messaging and encrypted data transfer
