2088-00-10 Barrett PRC-2083+ VHF, 50W, Tactical Re-Broadcast System
2088-00-10 BARRETT PRC-2082+ VHF Transceiver, 50W, Tactical Re-Broadcast System Pack

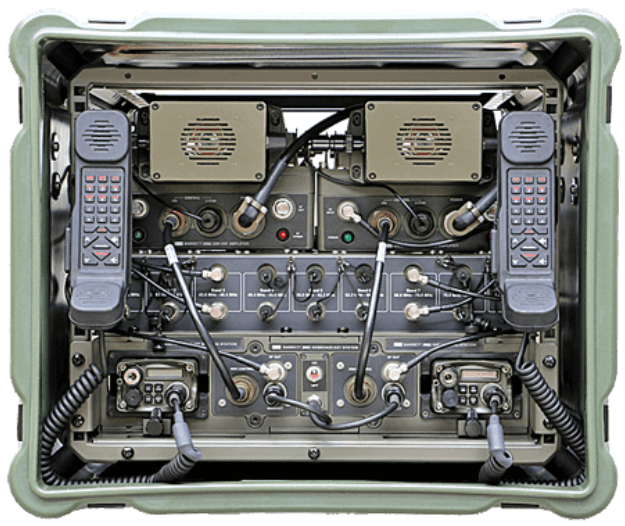

The Barrett PRC-2083+ Re-broadcast system is typically used to link two low band VHF networks providing extended range to overcome communication difficulties due to distance or terrain.
The two networks can use different security options (frequency hopping and encryption) providing a field deployable interoperability solution.
The re-broadcast system utilizes two PRC-2084+ 50 Watt systems and incorporates a nine band co-location filter assembly and AC/DC power supply with battery backup facilities all housed in a MIL-SPEC ruggedised transportable case allowing for easy deployment in any field environment.
The 50W Re-Broadcast System Pack comprises:-
- PRC-2080+ VHF Transceiver x 2 2085-00-00 DDN3823A
- Combined vehicle docking station for PRC-2080+ Transceiver 2088-00-21
- 50 W VHF Amplifier x 2 2087-00-02
- Tactical handset with keypad x 2 2080-01-11 DDN3824A
- VHF Speaker mounting bracket x 2 2082-01-34
- Interconnecting control cable 0.3m between 50 W VHF amplifier and vehicle docking station x 2 2082-00-03
- Coax cable 0.6 m BNC to BNC vehicle docking station to 50 W VHF amplifier x 2 SA-20832
- Coax cable 0.55 m TNC to BNC vehicle docking station to 50 W VHF amplifier x 2 SA-20879
- Bandpass filter panel 2088-00-01
- Barrett PRC-2080+ operation manual 2085-60-10
- Transportation casing 2083-00-03

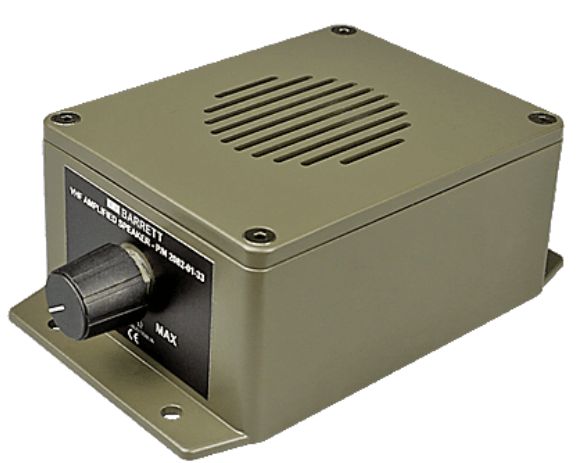

- Rugged external mount speaker x 2 2082-01-33
- Cable speaker to PRC-2082+ Transceiver x 2 2082-10-32
Standard features:-
– 10 preset – 25 kHz (2304 Channels)
– 150 Hz tone squelch in legacy mode (AFF) (STANAG 4204, PRC-77 compatible)
– Advanced module diagnostics & error conditions
Optional Features:-
– ECCM parameters
– COMSEC – Encrypted fixed frequency
– TRANSEC – Digital encryption, Frequency hopping, free channel search
For additional options and accessories, please see relevant section detail.
Notes:-
– Suitable antenna and power supply (if required) to be ordered separately.
– If fitted to a vehicle will require 2 x DC Power cable P/N 2082-00-04
– See brochure for more detailed information.
INFORMATION > 2085-00-10 BARRETT PRC-2080+ **********************************************

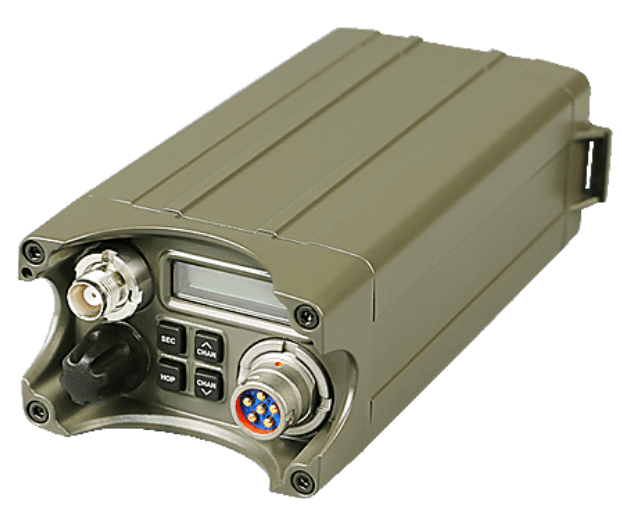

The PRC-2080+ low band VHF transceiver is designed for multi-role tactical military and security applications. It is an extremely compact and lightweight unit which is simple to operate in demanding mission critical conditions.
The PRC-2080+ is part of the family of Barrett transceivers that are field proven in over 150 countries, on every continent and in all environments.
In stand-alone configuration, the PRC-2080+ is ideal for squad level communication requirements.
Using either the supplied advanced handset or optional tactical headset, the PRC-2080+ transceiver can communicate reliably up to 8 km in open space (subject to terrain and topography), using the standard tape whip antenna.
This 5W Portable-Pack comprises:-
- PRC-2080+ VHF Transceiver 2085-00-00 DDN3823A
- Rechargeable 6.5 Ah Li-Ion battery pack 2085-03-05 DDN3709A
- Tactical handset with keypad 2080-01-11 DDN3824A
- 5 W Gooseneck 2085-02-01 DDN3825A
- Collapsible whip 1.8 metres 2085-02-02 DDN4096A
- Tape whip antenna 2085-02-03 DDN3826A
- Webbing pouch – Multicam 2080-01-13 DDN3827A
- Battery charger with adaptor and plate 2085-03-09 DDN4030A
- Barrett PRC-2080+ operation manual 2085-60-10
In stand-alone configuration, the PRC-2080+ is ideal for squad level communication requirements.
Using either the supplied advanced handset or optional tactical headset, the PRC-2080+ transceiver can communicate
reliably up to 8 km in open space (subject to terrain and topography), using the standard tape whip antenna.
A webbing pouch is included and an an optional multi-cam canvas backpack is available.
Features include
Compact lightweight modular design
Configurations include:-
5 W Hand Portable
25 W Manpack
50 W Mobile
50 W Base Station
50 W Re-broadcast system
DSP voice and data signal processing
Selective and group calling
Compatible with other 30 – 88 MHz communications equipment
Available options include
Encryption and frequency hopping security
Messaging and encrypted data transfer
