2089-08-10 Barrett PRC-2080+ VHF, 50W, Tactical RFDS Rapid Field Deployment System
2089-08-10 BARRETT PRC-2080+ VHF Transceiver, 50W, Tactical RFDS Rapid Field Deployment System

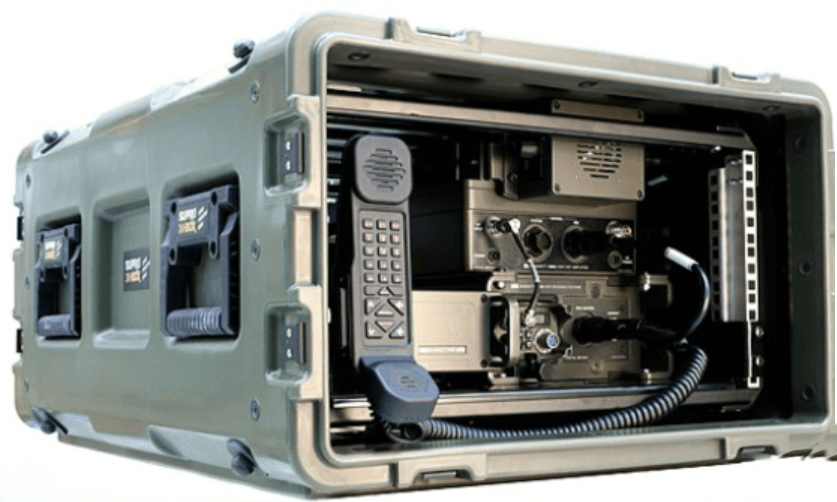

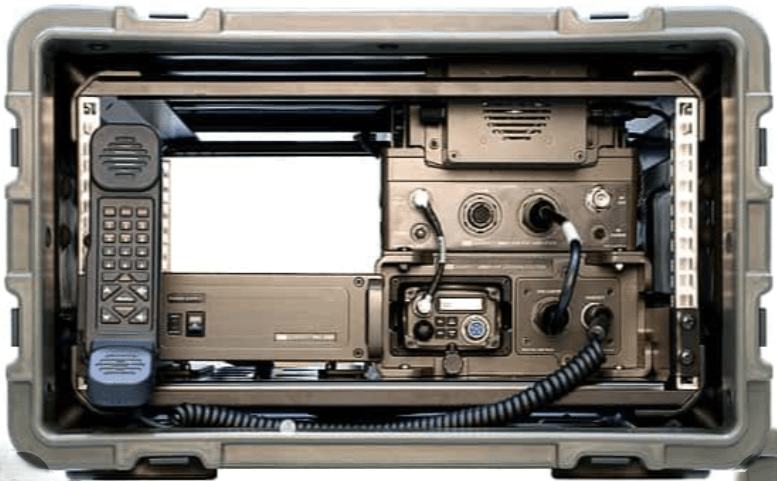

The Barrett Rapid Field Deployment System (RFDS P/N: 2089-08-01) combines Barrett PRC-2084+ 50W VHF Tactical base package into a stackable transportable 5RU 19-in rugged anti-vibration rack allowing the system to be field deployable and operational in minutes.
There is no longer a need for time consuming unpacking and configuration that can be impractical in tactical situations.
Instead, simply attach the appropriate antenna and the Barrett RFDS is ready.
It is both AC and DC power compatible as well as containing an on-board battery (see battery options below) and power management.
50W RFDS Includes:-
- PRC-2080+ VHF Transceiver
- Vehicle docking station
- 50 W VHF amplifier
- Amplified speaker
- Advanced tactical handset
- AC power supply module/battery charger
- Internal Battery ( rear mounted SLA or LiFe PO4 see below for battery options)
- Battery isolator switch ( rear mounted)
- Supro Box 19” 5RU anti-shock mount case
- VHF/HF interoperability (with optional 2064 Radio voice bridge)
50W RFDS Features:
– Field operational in minutes
– AC Mains and/or DC power
– On board battery
– Battery charging onboard
– HF – VHF/UHF interoperability (optional)
– Stackable transportable base station and vehicle/field deployable
Weights and Battery Options:
- PRC-2080+ RFDS without on board battery – 43.7 kg
- PRC-2080+ RFDS with 36Ah LiFePo4 battery – 48.1 kg
- PRC-2080+ RFDS with 36Ah sealed lead acid battery – 55.0 kg
Case size
External Dimensions: L 900 x W 570 x H 374mm including lids
INFORMATION > 2085-00-10 BARRETT PRC-2080+ **********************************************
The PRC-2080+ low band VHF transceiver is designed for multi-role tactical military and security applications. It is an extremely compact and lightweight unit which is simple to operate in demanding mission critical conditions.
The PRC-2080+ is part of the family of Barrett transceivers that are field proven in over 150 countries, on every continent and in all environments.
In stand-alone configuration, the PRC-2080+ is ideal for squad level communication requirements.
Using either the supplied advanced handset or optional tactical headset, the PRC-2080+ transceiver can communicate reliably up to 8 km in open space (subject to terrain and topography), using the standard tape whip antenna.
This 5W Portable-Pack comprises:-
- PRC-2080+ VHF Transceiver 2085-00-00 DDN3823A
- Rechargeable 6.5 Ah Li-Ion battery pack 2085-03-05 DDN3709A
- Tactical handset with keypad 2080-01-11 DDN3824A
- 5 W Gooseneck 2085-02-01 DDN3825A
- Collapsible whip 1.8 metres 2085-02-02 DDN4096A
- Tape whip antenna 2085-02-03 DDN3826A
- Webbing pouch – Multicam 2080-01-13 DDN3827A
- Battery charger with adaptor and plate 2085-03-09 DDN4030A
- Barrett PRC-2080+ operation manual 2085-60-10
In stand-alone configuration, the PRC-2080+ is ideal for squad level communication requirements.
Using either the supplied advanced handset or optional tactical headset, the PRC-2080+ transceiver can communicate
reliably up to 8 km in open space (subject to terrain and topography), using the standard tape whip antenna.
A webbing pouch is included and an an optional multi-cam canvas backpack is available.
Features include
Compact lightweight modular design
Configurations include:-
5 W Hand Portable
25 W Manpack
50 W Mobile
50 W Base Station
50 W Re-broadcast system
DSP voice and data signal processing
Selective and group calling
Compatible with other 30 – 88 MHz communications equipment
Available options include
Encryption and frequency hopping security
Messaging and encrypted data transfer
