3501037-0002 Hughes 4200 S-band Data Terminal, Portable
3501037-0002 Hughes 4200 Portable Data Terminal Kit
Short Description:
Battery operated Portable Terminal with integrated satellite GPS and WLAN antennas
• S-band satellite operation with data rates up to 290 Kbps forward and 256 Kbps return
• Simultaneous use of Ethernet and Wi-Fi for IP data
• Supports WPA and WPA-2 encryption over Wi-Fi
• Voice over IP
o Supports one POTS port
o Supports SIP clients over Wi-Fi and LAN
• Supports remote terminal management
• Kit includes a 4200 Terminal, AC/DC adapter with 2 power cables (UK and EU), rechargeable Li-ion battery, 5m Ethernet cable and a Quick Start Guide
Portable Satellite VoIP and IP Data Terminal with WLAN Access Point

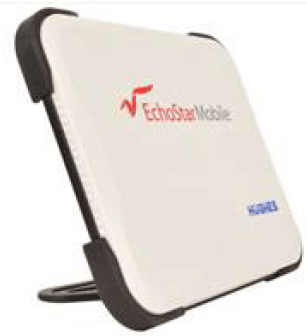

The data terminal is manufactured by Hughes, an EchoStar company. It is perfect for quick and convenient deployment, featuring a self-contained battery-operated unit with an integrated flat-panel antenna and visual pointing aid —including an attached compass.
As well as a built-in Wi-Fi access point for wireless data and voice support, the Hughes 4200 Portable Data Terminal (PDT) supports efficient voice calls for VoIP smartphone users, utilising our efficient GMR-1 3G’s satellite telephony service.As a cost-effective, state-of-the-art mobile device, the Hughes 4200 PDT is ideal for governments, public protection and security, remote healthcare and emergency facilities, utility companies, forestry services, and the oil & gas industry.
- Self-contained battery-operated unit with internal flat panel S-band satellite antenna
- Audio aid for antenna pointing, along with signal quality display and attached compass
- Simultaneous use of Ethernet and Wi-Fi for IP data
- Supports WPA and WPA-2 encryption over Wi-Fi
- Internal multi-language web user interface (WebUI) for configuration and control, accessible via PCs and smartphones
- Supports NAT, NAPT and DHCP
- Multi-user capability
- High-capacity battery
- Voice over IP (VoIP)
- Supports one POTS port
- Supports SIP clients over Wi-Fi and LAN
Services
- Packet connections at data rates supported by GMR-1 3G
- Physical-layer data rates: Up to 290 Kbps forward and 256 kbps return
- Multiple Quality of Service levels
- Bandwidth-efficient Voice over IP (VoIP)
- Hughes 4200 Portable Data Terminal
- AC/DC adapter
- Ethernet cable
- Quick Start Guide
Technical Specifications
- Weight: 2kg
- Dimensions: 233 mm x 293 mm x 51 mm
- Power (max): 57 W (when transmitting)
- Water/Dust: IP54
- Temperature: -5° C to +40° C with battery -25° C to +55° C, excluding battery
- Storage: -40° C to +60° C with battery -40° C to +80° C, excluding battery
- Battery Charging: 0 to 40oC
- External Supply: AC/DC adapter
- Wind loading: 40 km/h with stand secured
- Vibration (non-op): 200Hz–2kHz @, 0.3 m2/s3
