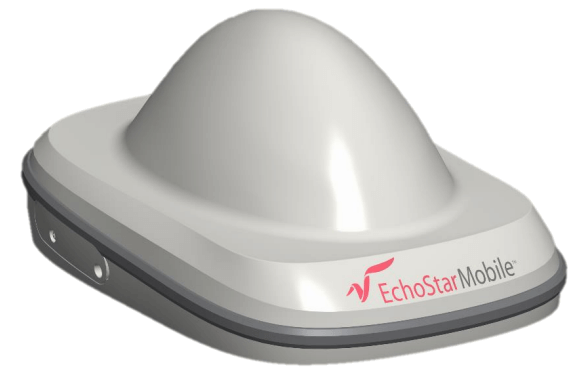

3501310-0003 Hughes 4510 Hybrid S-band, Satellite and Cellular Terminal
3501310-0003 Hughes 4510 Hybrid S-band Satellite and Cellular Terminal
Short Description:
Hughes 4510 Satellite & Cellular Dual Mode Terminal P/N: 3501310-0003
• S-band satellite operation with data rates up to 200 Kbps forward and 150 Kbps return
• Omnidirectional satellite antenna
• LTE CAT-1 operation with global coverage and embedded-SIM (eSIM) and physical SIM slot
• Integrated cellular antenna
• Integrated watchdog to ensure “always-on” network connectivity
• Supports remote terminal management
• Auto-on/auto-context activation
• Includes a 4510 Terminal and a Quick Start Guide
o Accessories (cables, mounting hardware) sold separately
Introduction
Dynamically routing IP traffic between terrestrial and satellite networks based upon path availability, the Hughes 4510 S-band terminal provides end-to-end connectivity ideal for a wide range of industrial IOT applications, including connected vehicles, industrial, fisheries, resource extraction, environmental monitoring, and Smart-Grid monitoring.
The Hughes 4510 S-band terminal can be installed with ease, with just a single unit connected to one power and Ethernet cable. It is environmentally sealed for long-term outdoor use on fixed or moving locations, including vehicles and offshore vessels.
Features of the Hughes 4510 S-band Terminal
- S-band satellite operation with data rates up to 200 kbps forward and 150 kbps return
- Omnidirectional satellite antenna allowing mobile communications with no moving parts
- Global LTE CAT-1 operation enabled by either an embedded-SIM (eSIM) or a replaceable 2FF SIM
- Integrated cellular antenna
- Integrated connection watchdog to ensure “always-on” network connectivity, with no manual intervention required to recover from an outage
- Supports remote terminal management and firmware upgrades
- Auto-on and auto-context activation automatically restores power and connection following any network issues or total loss of power
- Low power consumption Transmit: < 16 W (SAT only); < 6 W (CELL only); < 20 W (SAT & CELL)
- Receive: < 10 W
- Idle (SAT only): < 1.3 W
- Idle (SAT & CELL): < 3 W
- Off (Remote switch control): < 10 mW
- Simple installation: no PC required
- Terminal can be vehicle-, pole-, or mag-mounted
- Weatherproof (IP-67) enclosure
- Built-in GNSS receiver
Interfaces
- Ethernet connection
- Nominal 12V power input voltage; power supply must be able to handle 3.5A peak current
- USB for connection to configuration PC

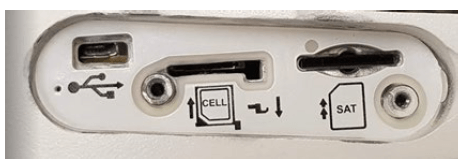

- SIM connectors under cover
- Serial data and GPIO options
Package Contents
- Hughes 4510 terminal
- Quick Start Guide
Accessories
- Connection cables
- Vehicular-, pole-, or mag-mounting kits
- Extended warranty option
Technical Specifications
- SAT Transmit Freq: 1995–2010 MHz
- SAT Receive Freq: 2185–2200 MHz
- LTE bands: 1, 2, 3, 4, 5, 7, 8, 12, 18, 19, 20, 28
- 7-bands UMTS bands: 800, 850, 900,1700/2100 (AWS), 1800, 1900 and 2100 MHz (bands 1, 2, 4, 5, 8, 9, 19)
- GSM Bands: 850, 900, 1800, 1900
- Fallback support for: GPRS/EDGE/HSPA+
- GNSS Support: GPS
- Terminal Weight: 1.5kg
- Operating Temp: -25 to +65 °C
- Storage Temp: -40 to +80 °C
- Power: Transmit: < 16 W (SAT only) < 6 W (CELL only) < 20 W (SAT & CELL)
- Power at Receive: < 10 W
- Power at Idle: < 1.3 W (SAT only) <3 W (SAT & CELL)
- Power at Off (Remote Switch Control): < 10 mW
- Input Voltage: +12V(vehicle)
